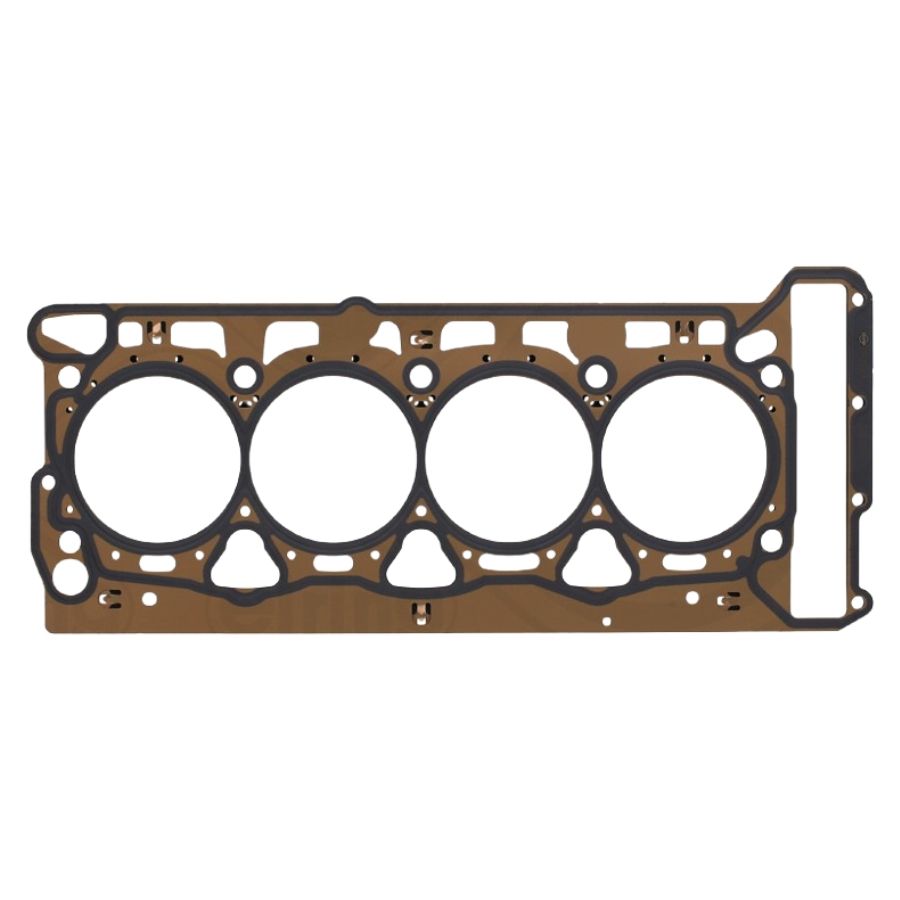

AUDI 8U Q3/ A3 8P/ B8 A4/ B8 A5/ C7 A6/ TT MKII / VW Beetle/ CC/ EOS/ Golf VI/ Passat B6/ Tiguan 1/2 Cylinder Head Gasket 06H103383AD

Get AUDI 8U Q3/ A3 8P/ B8 A4/ B8 A5/ C7 A6/ TT MKII / VW Beetle/ CC/ EOS/ Golf VI/ Passat B6/ Tiguan 1/2 Cylinder Head Gasket 06H103383AD

A cylinder head gasket is a thin, but extremely durable, mechanical seal designed to fit between the engine block and the cylinder head. Its primary purpose is to prevent leaks and ensure that the various fluids (coolant, oil) and gases (air-fuel mixture, exhaust gases) inside the engine stay in their respective areas without cross-contamination.

The cylinder head gasket is an essential component of any engine—whether in passenger vehicles, heavy machinery, or even motorcycles—because it plays a vital role in maintaining engine performance and preventing significant failures.

It is typically made from composite materials such as steel, graphite, copper, or elastomeric rubber, each engineered to withstand the extreme heat and pressure found in combustion engines.

2. Functions of a Cylinder Head Gasket

The cylinder head gasket has several essential functions:

2.1. Sealing the Combustion Chamber

The most critical function of a head gasket is to seal the combustion chamber, where the air-fuel mixture ignites to produce the engine’s power. The gasket must maintain this seal even under the high-pressure conditions created during combustion, allowing the engine to operate efficiently by containing the pressure created by the ignition of the fuel-air mixture.

2.2. Preventing Coolant and Oil Leaks

A well-functioning head gasket prevents the engine’s oil and coolant from leaking into areas where they shouldn’t be, such as into the combustion chamber or mixing with one another. If coolant leaks into the combustion chamber, it can cause white exhaust smoke and damage internal components. Oil leaks into the combustion area can lead to excessive smoke and engine inefficiency.

2.3. Maintaining Pressure and Compression

Another function of the gasket is to maintain adequate pressure and compression within the engine’s cylinders. Proper compression is necessary for the engine to produce power efficiently. Any loss of compression due to a faulty head gasket will result in reduced engine performance, misfires, or failure to start.

2.4. Thermal Insulation

The head gasket provides insulation between the engine block and the cylinder head, helping to distribute heat evenly and preventing localized overheating. The head gasket plays a key role in ensuring that the engine operates within its optimal temperature range, enhancing overall engine longevity.

2.5. Preventing Cross-Contamination of Fluids

The engine block contains various fluids, including engine oil and coolant, which flow through dedicated channels. The head gasket ensures that these fluids do not mix or enter the combustion chamber, maintaining the engine’s performance and preventing major mechanical issues like hydro-locking, oil dilution, or coolant contamination.

3. Types of Cylinder Head Gaskets

There are different types of cylinder head gaskets, each designed for specific engine configurations and performance requirements. The most common types are:

3.1. Multi-Layer Steel (MLS) Gaskets

Multi-layer steel gaskets are the most common type used in modern engines due to their durability and reliability. These gaskets consist of multiple thin layers of steel combined with an elastomeric coating that allows for flexibility and optimal sealing. MLS gaskets are highly resistant to heat and pressure, making them ideal for high-performance and turbocharged engines.

3.2. Composite Gaskets

Composite head gaskets are made from a combination of materials like graphite, asbestos (historically), or other synthetic fibers bonded to a steel core. These gaskets are less durable than MLS gaskets but are still widely used in older vehicles and certain engines. Composite gaskets are generally easier to install but are more prone to failure under extreme temperatures and pressure.

3.3. Copper Head Gaskets

Copper head gaskets offer excellent heat conductivity and durability, making them suitable for high-performance engines or racing applications. These gaskets are often used in modified or custom engines where extreme pressure and temperature conditions exist. Copper gaskets are more difficult to install and require precise torque settings during installation.

3.4. Elastomeric Gaskets

Elastomeric gaskets feature a rubber-like material combined with metal or composite layers. These gaskets are designed to offer flexibility and better sealing properties in engines where expansion and contraction are significant due to thermal cycling. They are less common than MLS gaskets but offer effective sealing for specific engine types.

4. Signs of a Faulty Cylinder Head Gasket

A blown or faulty cylinder head gasket can cause a range of problems, some of which can lead to serious engine damage. Some of the common signs of a damaged head gasket include:

4.1. White Exhaust Smoke

White smoke from the exhaust is a common sign of a blown head gasket. This occurs when coolant leaks into the combustion chamber and burns, creating steam that exits through the exhaust.

4.2. Overheating

A damaged head gasket can cause the engine to overheat, as coolant may leak out of the engine, reducing its ability to maintain a proper operating temperature. Continuous overheating can warp the cylinder head and cause further damage.

4.3. Loss of Engine Power

When a head gasket fails, it often results in a loss of compression in one or more cylinders. This reduces engine power, leading to misfires, poor acceleration, and difficulty starting the engine.

4.4. Coolant and Oil Mixing

A blown gasket can allow engine oil and coolant to mix, creating a thick, milky substance. This is commonly referred to as a “milkshake” and is a major sign of gasket failure.

4.5. Bubbling in the Radiator or Coolant Reservoir

If combustion gases leak into the cooling system, they can cause bubbles to form in the radiator or coolant reservoir. This is another clear indicator of a head gasket problem.

5. Causes of Cylinder Head Gasket Failure

Several factors can cause a cylinder head gasket to fail, including:

• Overheating: Excessive engine heat is the leading cause of gasket failure. Prolonged overheating can warp the cylinder head or block, resulting in the gasket losing its sealing ability.
• Poor Installation: Improper installation, including incorrect torque on the cylinder head bolts, can lead to premature gasket failure.
• Age and Wear: Over time, even the most durable gaskets can wear out due to thermal cycling, pressure fluctuations, and the constant stress of combustion.
• Detonation and Pre-Ignition: Abnormal combustion events like detonation or pre-ignition can create extreme pressure spikes, leading to a blown head gasket.

6. Maintenance Tips for Cylinder Head Gaskets

Maintaining the cylinder head gasket involves preventive measures aimed at keeping the engine in optimal condition. Here are some tips to extend the life of your cylinder head gasket:

6.1. Monitor Engine Temperature

Keeping an eye on the engine temperature gauge and ensuring the cooling system is functioning properly is crucial to prevent overheating. Regularly checking the radiator, water pump, and thermostat for wear and leaks is essential.

6.2. Regular Oil Changes

Changing the engine oil at regular intervals ensures that the oil stays clean and well-lubricated. Old or contaminated oil can increase friction and lead to overheating, which may affect the head gasket’s integrity.

6.3. Use Quality Gaskets

When replacing a head gasket, always opt for high-quality, durable gaskets that are suited to your engine type. Cheap or substandard gaskets may fail prematurely, leading to costly repairs.

6.4. Proper Installation

If a gasket replacement is necessary, ensure that the installation process is done correctly, including following proper torque specifications and procedures to avoid uneven sealing or head warping.

6.5. Regular Coolant Checks

Keeping the coolant levels in check and using the right type of coolant can prevent overheating. A healthy cooling system is essential for maintaining the longevity of the cylinder head gasket.

7. Conclusion

The cylinder head gasket is a critical component in any internal combustion engine, as it provides a reliable seal between the engine block and cylinder head. Its role in maintaining engine compression, preventing fluid leaks, and ensuring efficient operation makes it indispensable for engine health. Proper maintenance, regular inspections, and timely repairs are key to avoiding the severe consequences of a blown head gasket. Whether in high-performance racing engines or everyday vehicles, a well-maintained cylinder head gasket ensures optimal engine performance and longevity.
