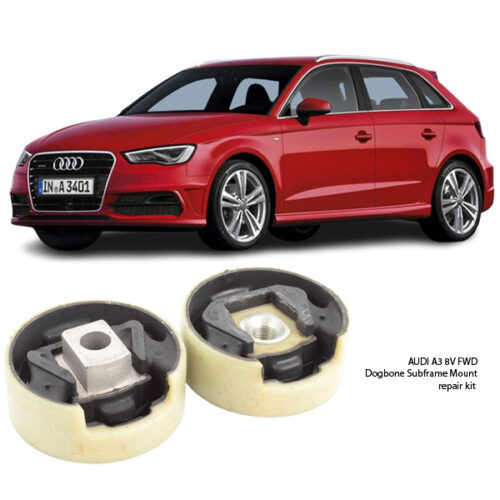

AUDI A3 8V FWD Dogbone Subframe Mount repair kit 5Q0 198 037 A

Get AUDI A3 8V FWD Dogbone Subframe Mount repair kit 5Q0 198 037 A in Kenya

A dogbone subframe mount repair kit is an essential component used in the suspension and drivetrain systems of many modern vehicles. It is designed to replace or reinforce the dogbone-style subframe mount, which helps secure the engine, transmission, and subframe assembly to the chassis. Over time, these mounts can wear out due to engine vibrations, road impacts, and general aging, leading to issues such as excessive engine movement, drivetrain noise, and misalignment. A repair kit provides an effective solution for restoring stability and improving vehicle performance.

This detailed guide explores the function, benefits, common signs of failure, installation steps, and maintenance tips for a dogbone subframe mount repair kit.

1. Understanding the Dogbone Subframe Mount

The dogbone subframe mount, also called a pendulum mount or torque arm mount, is typically found in front-wheel-drive (FWD) and all-wheel-drive (AWD) vehicles. It connects the subframe to the transmission or engine, helping control engine movement under acceleration, braking, and cornering.

How It Works

• The dogbone mount is positioned at the bottom of the engine or transmission, linking it to the subframe.
• It absorbs torque forces from the engine and prevents excessive forward or backward motion.
• By stabilizing the engine, it reduces strain on other mounts and minimizes drivetrain vibrations.

Materials and Design

Dogbone mounts are commonly made from:

• Rubber: Provides cushioning but can wear out quickly.
• Polyurethane: Offers greater durability and performance but may result in slightly increased vibrations.
• Solid Metal (Aluminum or Steel): Used in high-performance applications, providing maximum stability but at the cost of comfort.

2. Signs of a Failing Dogbone Subframe Mount

A worn-out dogbone mount can cause various performance issues. Here are some key indicators that it may need replacement:

A. Excessive Engine Movement

• If the engine rocks forward and backward excessively when shifting gears, the mount may be failing.

B. Clunking or Knocking Noises

• A damaged or loose mount can cause metal-to-metal contact, resulting in clunking sounds, especially when accelerating or decelerating.

C. Harsh Gear Changes

• If shifting feels rough or jerky, a worn mount could be failing to hold the drivetrain in place.

D. Vibrations in the Cabin

• A damaged mount can no longer absorb vibrations properly, leading to excessive shaking in the steering wheel, dashboard, or pedals.

E. Visible Wear or Cracks

• Inspecting the mount may reveal cracks, torn rubber, or excessive wear, indicating it needs replacement.

3. Benefits of Installing a Dogbone Subframe Mount Repair Kit

Replacing a faulty mount with a repair kit provides several advantages:

A. Improved Engine Stability

• The new mount helps keep the engine and transmission firmly in place, reducing unwanted movement.

B. Enhanced Driving Comfort

• A fresh mount absorbs vibrations effectively, improving ride comfort and reducing noise inside the cabin.

C. Smoother Gear Transitions

• By reducing engine movement, a proper mount prevents jerky shifts and drivetrain stress.

D. Increased Durability

• Many repair kits use upgraded materials like polyurethane or reinforced rubber, offering longer-lasting performance.

E. Reduced Stress on Other Components

• A secure dogbone mount prevents excessive strain on the transmission, axles, and other engine mounts, prolonging their lifespan.

4. Step-by-Step Installation Guide

Replacing a dogbone subframe mount using a repair kit is a straightforward process, though it requires some mechanical knowledge. Here’s a general guide:

Tools Required

• Jack and jack stands
• Socket and ratchet set
• Torque wrench
• Pry bar (if needed)
• Thread locker (optional)

Installation Steps

Step 1: Secure the Vehicle

• Park the car on a flat surface and engage the parking brake.
• Lift the front of the car using a jack and secure it with jack stands.

Step 2: Locate the Dogbone Mount

• The dogbone mount is typically located at the bottom of the engine bay, near the subframe and transmission.

Step 3: Remove the Old Mount

• Use a socket wrench to loosen and remove the bolts securing the mount to the subframe and engine.
• If the mount is stuck, gently use a pry bar to remove it.

Step 4: Install the New Mount

• Position the new mount from the repair kit in the same orientation as the old one.
• Insert the bolts and hand-tighten them first to ensure proper alignment.

Step 5: Torque the Bolts

• Use a torque wrench to tighten the bolts to the manufacturer’s specified torque values.
• Applying thread locker can help prevent bolts from loosening over time.

Step 6: Test the Installation

• Start the engine and shift through gears to check for excessive movement or unusual noises.
• If everything is secure, lower the vehicle and take it for a short test drive.

5. Maintenance Tips for Long-Lasting Performance

To ensure the longevity of the new dogbone subframe mount, follow these maintenance tips:

A. Regular Inspections

• Check for cracks, wear, or loosened bolts every 10,000 km or during routine service.

B. Avoid Aggressive Driving

• Rapid acceleration and hard shifting can put excessive strain on the mount, leading to premature wear.

C. Use Quality Components

• Investing in high-quality mounts, such as polyurethane or reinforced rubber models, ensures durability.

D. Keep Engine and Transmission Mounts in Good Condition

• A worn engine or transmission mount can put extra stress on the dogbone mount, causing it to fail faster.

E. Address Any Unusual Noises Promptly

• If you hear clunking or knocking, inspect the mount immediately to prevent further damage.

6. Choosing the Right Dogbone Subframe Mount Repair Kit

When selecting a repair kit, consider the following factors:

A. Vehicle Compatibility

• Ensure the kit matches your car’s make, model, and engine type.

B. Material Choice

• Rubber mounts for OEM-like comfort
• Polyurethane mounts for durability and performance
• Solid metal mounts for high-performance applications

C. Brand and Quality

• Opt for reputable brands known for reliability, such as Lemförder, Febi Bilstein, or Powerflex.

D. Bolt and Hardware Quality

• Some kits come with upgraded bolts and bushings, which can improve strength and ease of installation.

Conclusion

A dogbone subframe mount repair kit is an essential upgrade or replacement for maintaining drivetrain stability and reducing vibrations. Recognizing the signs of failure early can prevent costly repairs and improve driving comfort. By choosing the right repair kit and following proper installation and maintenance procedures, you can extend the life of your vehicle’s suspension and engine mounting system.
