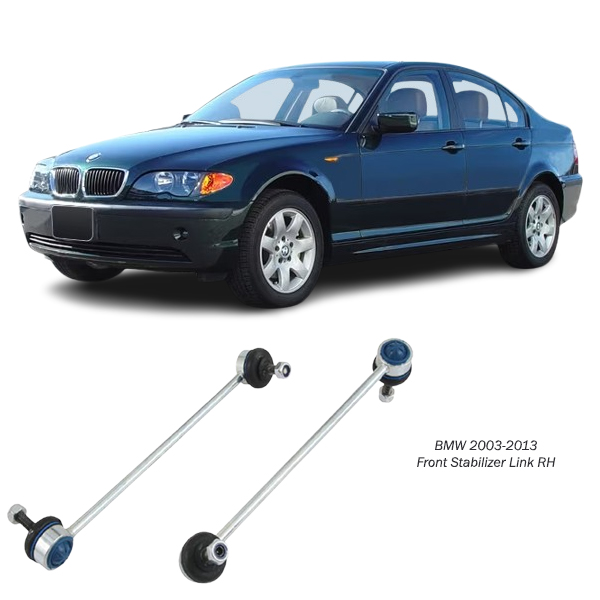

BMW 2003-2013 Front Stabilizer Link Set RH/LH 31356765934

The front stabilizer link set, often referred to as sway bar links, is a crucial component in a vehicle’s suspension system. Positioned on the right-hand (RH) and left-hand (LH) sides, these links connect the stabilizer bar (also known as the sway bar or anti-roll bar) to the suspension control arms or struts. They play a pivotal role in maintaining stability, handling, and safety during driving. This guide will explore their functions, design, benefits, maintenance, and signs of wear, providing a detailed understanding of their importance.

What is a Front Stabilizer Link Set?

The front stabilizer link set consists of two links, one for each side (RH and LH) of the vehicle. These links act as intermediaries, transferring forces from the stabilizer bar to the suspension system. By doing so, they help reduce body roll during cornering, ensuring that the tires remain firmly in contact with the road surface.

Functions of the Front Stabilizer Link Set

1. Minimizes Body Roll
   • The stabilizer links work with the sway bar to reduce the tilting of the vehicle during sharp turns, providing a stable and comfortable ride.
2. Improves Handling
   • By keeping the suspension system balanced, stabilizer links enhance steering response and cornering precision.
3. Distributes Load Evenly
   • Ensures that forces are distributed between the left and right suspension systems, preventing uneven wear on components.
4. Maintains Tire Contact
   • Reduces the chance of wheel lift during aggressive maneuvers, improving traction and control.
5. Enhances Safety
   • Prevents excessive leaning of the vehicle, which could compromise stability and increase the risk of rollover accidents.

Construction of Stabilizer Links

Stabilizer links are designed for durability and performance, with construction materials and components tailored to withstand road stresses:

1. Metal Rod or Shaft
   • Made of high-strength steel or aluminum for durability and rigidity.
   • Links the sway bar to the suspension components.
2. Ball Joints or Bushings
   • Located at each end of the link to allow flexible movement.
   • Ball joints enable rotational motion, while bushings absorb vibrations.
3. Protective Coatings
   • Anti-corrosion treatments, such as powder coatings or zinc plating, prevent rust and extend the lifespan of the links.
4. Threaded Ends
   • Allow for secure attachment to the sway bar and suspension arms.

Types of Stabilizer Links

1. Standard Stabilizer Links
   • Found in most vehicles; provide basic functionality for minimizing body roll.
2. Heavy-Duty Stabilizer Links
   • Designed for trucks, SUVs, and off-road vehicles.
   • Thicker and more robust to handle increased loads and rough terrain.
3. Adjustable Stabilizer Links
   • Allow fine-tuning of suspension geometry for performance driving or customized setups.
4. Polyurethane-Bushed Stabilizer Links
   • Equipped with polyurethane bushings for increased durability and reduced noise compared to rubber bushings.

Benefits of a Front Stabilizer Link Set

1. Enhanced Stability
   • Reduces the swaying motion during cornering or sudden maneuvers, providing a smoother ride.
2. Better Handling
   • Improves the vehicle’s responsiveness to steering inputs, especially on winding roads.
3. Prolonged Tire Life
   • Prevents uneven tire wear by keeping the suspension balanced.
4. Increased Comfort
   • Absorbs vibrations and road irregularities, ensuring a quieter and more comfortable ride.
5. Cost-Effective Maintenance
   • Protects other suspension components by evenly distributing loads and minimizing strain.

Signs of a Faulty Stabilizer Link

1. Clunking or Knocking Noises
   • A worn stabilizer link can cause noise during driving, especially when going over bumps.
2. Poor Handling
   • Increased body roll or difficulty steering can indicate a failing link.
3. Uneven Tire Wear
   • Faulty links disrupt suspension balance, leading to uneven tire degradation.
4. Loose or Detached Link
   • A visual inspection may reveal broken or loose connections.
5. Excessive Vibration
   • Damaged bushings or ball joints can transfer road vibrations to the cabin.

Maintenance of Stabilizer Links

1. Regular Inspections
   • Check for visible damage, corrosion, or looseness during routine maintenance.
2. Lubrication
   • Ensure ball joints are adequately greased to reduce wear and noise.
3. Monitor Suspension Performance
   • Pay attention to changes in handling, noise, or ride comfort.
4. Replace in Pairs
   • When replacing one stabilizer link, replace the other to maintain suspension balance.
5. Use Quality Parts
   • Invest in OEM or high-quality aftermarket stabilizer links for durability and performance.

How to Replace a Front Stabilizer Link Set

Replacing stabilizer links is a straightforward process, typically requiring basic tools and mechanical knowledge:

1. Raise the Vehicle
   • Use a jack and secure the vehicle with jack stands to access the suspension system.
2. Locate the Stabilizer Links
   • Identify the links connecting the sway bar to the suspension arms.
3. Remove the Old Links
   • Use appropriate tools to detach the nuts and bolts securing the links.
4. Inspect Related Components
   • Check the sway bar, bushings, and suspension arms for wear or damage.
5. Install the New Links
   • Position the replacement links and secure them with the provided hardware.
6. Torque to Specifications
   • Tighten all connections to the manufacturer’s recommended torque settings.
7. Test Drive
   • Ensure the vehicle handles correctly and no unusual noises are present.

When to Replace Stabilizer Links

1. Mileage
   • Replace every 50,000 to 100,000 miles, depending on driving conditions and manufacturer recommendations.
2. Severe Conditions
   • Driving on rough roads or carrying heavy loads may necessitate more frequent replacements.
3. Suspension Overhaul
   • Replace stabilizer links as part of a comprehensive suspension maintenance plan.

Common Myths About Stabilizer Links

1. “Stabilizer Links Don’t Affect Handling”
   • False; they are integral to maintaining proper suspension balance and steering response.
2. “Only One Link Needs Replacing”
   • Replacing both links ensures uniform performance and prevents uneven wear.
3. “Any Link Will Do”
   • Using non-compatible or low-quality links can compromise safety and performance.

Benefits of High-Quality Stabilizer Links

1. Durability
   • High-strength materials and advanced designs ensure a longer lifespan.
2. Better Performance
   • Precision-engineered links offer superior handling and comfort.
3. Reduced Maintenance
   • Fewer replacements and repairs are needed with premium-quality parts.
4. Enhanced Safety
   • Reliable links minimize body roll and improve vehicle stability during emergencies.

Conclusion

The front stabilizer link set RH/LH is an indispensable part of a vehicle’s suspension system, ensuring stability, handling, and safety. Regular maintenance and timely replacement of these links not only improve the driving experience but also protect other suspension components from excessive wear.

Investing in high-quality stabilizer links and following recommended maintenance practices will ensure optimal vehicle performance, comfort, and safety for the long term.
