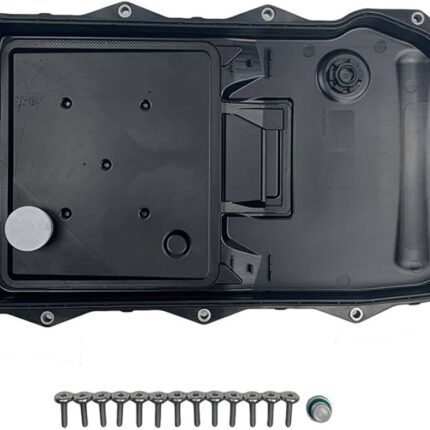

BMW E70 X5 N52 3.0L Automatic Transmission Oil Pan 24152333907

Get BMW E70 X5 N52 3.0L Automatic Transmission Oil Pan 24152333907 in Kenya

The automatic transmission oil pan is an integral component of a vehicle’s automatic transmission system. It serves as a reservoir for the transmission fluid, ensuring proper lubrication, cooling, and the overall functioning of the transmission. Positioned at the bottom of the transmission assembly, the oil pan is vital for maintaining the efficiency and longevity of the vehicle’s transmission system. This guide explores the functions, structure, materials, maintenance, and importance of the automatic transmission oil pan in detail.

Functions of the Automatic Transmission Oil Pan

1. Transmission Fluid Reservoir:
   • The primary purpose of the oil pan is to hold the transmission fluid. This fluid is essential for lubricating the gears, bearings, and clutches, reducing friction and heat.
2. Protection:
   • The oil pan acts as a protective barrier for the transmission system, shielding it from external debris, dirt, and potential impacts from the road.
3. Heat Dissipation:
   • Transmission fluid absorbs heat generated during the operation of the transmission. The oil pan assists in dissipating this heat, maintaining optimal operating temperatures.
4. Facilitates Fluid Drainage:
   • Many oil pans are equipped with a drain plug, making it easier to change the transmission fluid without removing the entire pan.
5. Houses Essential Components:
   • In some designs, the oil pan also accommodates magnets and filters. Magnets capture metallic debris from the fluid, while filters trap other contaminants, ensuring the transmission fluid remains clean.

Structure and Materials

The automatic transmission oil pan is typically designed to withstand the harsh conditions it is exposed to. Its structure and materials play a crucial role in its durability and effectiveness.

1. Materials:
   • Steel: Most oil pans are made from stamped steel, known for its strength and resistance to impact.
   • Aluminum: Some higher-end or aftermarket pans are made from cast aluminum, offering better heat dissipation and corrosion resistance.
   • Plastic/Composite: Modern lightweight designs may use composite materials to reduce vehicle weight.
2. Design Features:
   • Drain Plug: Allows easy fluid draining during maintenance.
   • Reinforced Edges: Strengthens the pan, preventing warping or cracking under pressure.
   • Cooling Fins: Found in some aluminum pans, these fins improve heat dissipation.
   • Magnets: Integrated magnets attract metal shavings or particles, preventing them from circulating in the fluid.

Importance of the Automatic Transmission Oil Pan

1. Lubrication Maintenance:
   • The oil pan ensures that sufficient transmission fluid is available to lubricate the moving parts, minimizing wear and tear.
2. Transmission Cooling:
   • By holding and cooling the fluid, the oil pan prevents overheating, which can damage the transmission components.
3. Protection:
   • It shields the internal transmission components from contaminants and external elements, ensuring a clean operating environment.
4. Fluid Accessibility:
   • With features like a drain plug and detachable design, the oil pan makes fluid changes and inspections more straightforward.
5. Prevents Contamination:
   • The magnets and filters in the oil pan capture debris, ensuring that only clean fluid circulates through the transmission.

Signs of a Faulty Oil Pan

1. Fluid Leaks:
   • Transmission fluid pooling beneath the vehicle indicates a possible crack, gasket failure, or loose bolts.
2. Low Transmission Fluid:
   • Frequent drops in fluid levels can be attributed to leaks or improper sealing.
3. Overheating Transmission:
   • A damaged pan may not adequately hold fluid, leading to insufficient lubrication and cooling.
4. Metal Shavings in Fluid:
   • Visible metallic debris in the fluid can indicate that the magnets or filters are not functioning properly.
5. Physical Damage:
   • Dents, cracks, or corrosion on the pan reduce its effectiveness and can lead to leaks.

Causes of Oil Pan Damage

1. Road Debris:
   • Rocks, potholes, or other debris can dent or crack the oil pan.
2. Corrosion:
   • Exposure to moisture, road salt, or harsh chemicals can lead to rust or corrosion.
3. Improper Installation:
   • Incorrectly installed gaskets or bolts can cause misalignment, leading to leaks or reduced performance.
4. Old or Worn-Out Gaskets:
   • Gaskets degrade over time due to exposure to heat, pressure, and fluid, eventually leading to leaks.
5. Neglected Maintenance:
   • Failure to replace old fluid or inspect the oil pan can result in contamination and reduced effectiveness.

Maintenance Tips for an Automatic Transmission Oil Pan

1. Regular Fluid Changes:
   • Change the transmission fluid according to the manufacturer’s recommendations to prevent contamination and ensure optimal lubrication.
2. Inspect for Leaks:
   • Periodically check under the vehicle for signs of fluid leaks and address them promptly.
3. Replace the Gasket:
   • Always replace the gasket when removing the oil pan during fluid changes to ensure a proper seal.
4. Clean the Pan and Magnets:
   • Remove and clean the pan, magnets, and filters during scheduled maintenance to remove accumulated debris.
5. Use Quality Parts:
   • Opt for high-quality replacement pans, gaskets, and fluids to ensure compatibility and durability.

Replacing an Automatic Transmission Oil Pan

Tools Required:

• Socket wrench, drain pan, scraper, torque wrench, and replacement parts.

Steps:

1. Drain the Transmission Fluid:
   • Place a drain pan under the oil pan and remove the drain plug to release the fluid.
2. Remove the Oil Pan:
   • Unscrew the bolts and carefully detach the pan to avoid spilling any remaining fluid.
3. Clean the Surface:
   • Remove the old gasket material and clean the mating surface on the transmission housing.
4. Inspect and Replace Components:
   • Check for damage to the pan and replace if necessary. Also, replace the gasket and filter.
5. Install the New Pan:
   • Align the pan and gasket, and secure them with bolts. Tighten the bolts to the specified torque.
6. Refill Transmission Fluid:
   • Add the recommended type and quantity of transmission fluid.
7. Check for Leaks:
   • Start the vehicle and inspect for leaks around the pan. Tighten bolts if necessary.
8. Test Drive:
   • Drive the vehicle to ensure smooth shifting and proper performance.

Benefits of a High-Quality Automatic Transmission Oil Pan

1. Leak Prevention:
   • High-quality pans with precision-engineered gaskets minimize the risk of leaks.
2. Improved Cooling:
   • Aluminum pans with cooling fins enhance heat dissipation, improving transmission performance.
3. Extended Transmission Life:
   • Properly maintained oil pans contribute to the longevity of the transmission by ensuring clean and adequate fluid levels.
4. Reduced Maintenance Costs:
   • Investing in durable components reduces the likelihood of frequent repairs or replacements.

Conclusion

The automatic transmission oil pan is a small but indispensable component of a vehicle’s transmission system. It ensures proper lubrication, protects against debris, aids in cooling, and provides easy access for maintenance. Regular inspection, proper maintenance, and the use of high-quality replacement parts are crucial to keeping the transmission and the oil pan in optimal condition. By understanding its functions and importance, vehicle owners can ensure a smooth and reliable driving experience.
