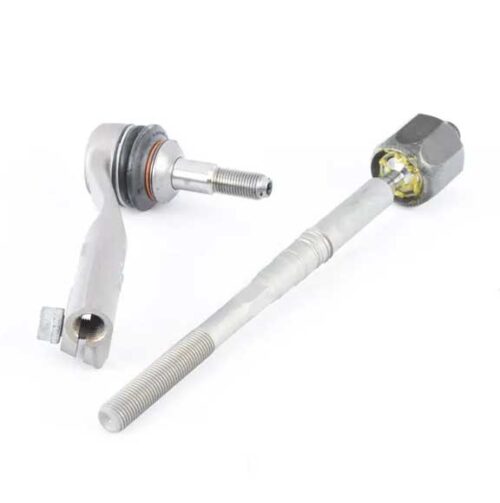

BMW F22 M235i xDrive Tie Rod Assembly LH 32106792029

Get BMW F22 M235i xDrive Tie Rod Assembly LH 32106792029 in Kenya

The tie rod assembly is an essential component of a vehicle’s steering system, responsible for transmitting steering inputs from the driver to the wheels. The “LH” designation refers to the left-hand side of the vehicle. This part is crucial in maintaining control, stability, and alignment. Understanding the tie rod assembly’s function, structure, and maintenance is key for vehicle performance and safety. Below, we dive into a detailed overview of the tie rod assembly LH.

What is a Tie Rod Assembly LH?

The tie rod assembly LH is a mechanical linkage located on the left-hand side of the vehicle, connecting the steering rack or gearbox to the left front wheel. It is designed to convert the rotational motion of the steering wheel into linear motion, allowing the wheels to pivot and turn.

This assembly consists of an inner tie rod and an outer tie rod, along with supporting components like ball joints and protective boots. Together, these components ensure precise wheel movement and alignment for safe and efficient steering.

Components of a Tie Rod Assembly LH

1. Inner Tie Rod
   • Connected directly to the steering rack or gearbox.
   • Transmits steering force from the rack to the outer tie rod.
2. Outer Tie Rod
   • Connects the inner tie rod to the steering knuckle.
   • Directly influences wheel movement by turning the wheel in response to steering inputs.
3. Ball Joint
   • Located at the end of the outer tie rod.
   • Allows the tie rod to pivot and move, accommodating the suspension’s up-and-down motion.
4. Adjusting Sleeve
   • Some designs include an adjustable threaded sleeve that allows for length adjustment during wheel alignment.
5. Tie Rod End Boot
   • A rubber or plastic cover that seals the ball joint, protecting it from dirt, moisture, and debris.

Functions of the Tie Rod Assembly LH

1. Steering Input Transmission
   • Ensures that steering inputs from the driver are accurately transmitted to the left wheel.
2. Wheel Alignment
   • Maintains proper wheel alignment, which is essential for stability, handling, and tire longevity.
3. Directional Control
   • Enables the vehicle to turn left or right smoothly and safely.
4. Suspension Interaction
   • Works in tandem with the suspension system to absorb road shocks and maintain wheel contact with the ground.
5. Load Distribution
   • Evenly distributes steering force, preventing excessive wear on steering and suspension components.

How the Tie Rod Assembly LH Works

The tie rod assembly LH operates as a link between the steering system and the left front wheel. Here’s how it works:

1. Steering Input
   When the driver turns the steering wheel, the motion is transmitted to the steering rack.
2. Inner Tie Rod Movement
   The inner tie rod, connected to the steering rack, moves in a push-pull motion depending on the steering direction.
3. Outer Tie Rod Movement
   The inner tie rod transmits this motion to the outer tie rod, which then moves the steering knuckle.
4. Wheel Rotation
   The steering knuckle pivots the wheel in the desired direction, allowing the vehicle to turn.
5. Suspension Compliance
   The ball joint at the end of the outer tie rod allows the wheel to move vertically with the suspension, maintaining smooth steering and control.

Signs of a Faulty Tie Rod Assembly LH

A malfunctioning tie rod assembly LH can lead to serious safety risks and performance issues. Here are some common signs of failure:

1. Loose Steering
   Excessive play in the steering wheel may indicate worn tie rod components.
2. Uneven Tire Wear
   Misaligned wheels due to a damaged tie rod can cause uneven or premature tire wear.
3. Clunking or Knocking Sounds
   Loose or damaged ball joints in the tie rod assembly can produce noise, especially when turning or driving over bumps.
4. Steering Wheel Vibration
   A worn or loose tie rod can cause noticeable vibrations in the steering wheel, particularly at higher speeds.
5. Vehicle Pulling to One Side
   A misaligned tie rod can cause the vehicle to drift or pull to one side during driving.
6. Difficulty Maintaining Alignment
   If the vehicle frequently requires alignment adjustments, the tie rod assembly may be compromised.

Common Causes of Tie Rod Assembly Failure

1. Normal Wear and Tear
   Over time, the constant movement and stress on the tie rod assembly cause natural wear, particularly in the ball joints.
2. Impact Damage
   Collisions with curbs, potholes, or other obstacles can bend or break the tie rod components.
3. Corrosion
   Exposure to moisture, road salt, and debris can cause rust and weaken the tie rod.
4. Poor Maintenance
   Failure to inspect and lubricate the tie rod assembly regularly can accelerate wear and damage.
5. Faulty Installation
   Incorrect installation or improper tightening of components can lead to premature failure.

Maintenance Tips for a Tie Rod Assembly LH

1. Regular Inspections
   • Inspect the tie rod assembly during routine maintenance checks to identify early signs of wear or damage.
2. Protect the Ball Joints
   • Ensure the rubber boots are intact and replace them if they show signs of cracking or tearing.
3. Lubrication
   • Grease the ball joints regularly to reduce friction and prolong their lifespan.
4. Wheel Alignment
   • Check the vehicle’s alignment periodically, especially after replacing tie rod components or after a significant impact.
5. Replace Worn Parts Immediately
   • Address issues as soon as they arise to prevent further damage to the steering and suspension systems.

Replacement of Tie Rod Assembly LH

Replacing a tie rod assembly LH requires precision and expertise. While it is recommended to seek professional assistance, understanding the process is beneficial:

1. Preparation
   • Park the vehicle on a level surface, secure it with wheel chocks, and raise the front end with a jack.
2. Remove the Old Tie Rod Assembly
   • Disconnect the outer tie rod from the steering knuckle using a ball joint separator.
   • Unscrew the inner tie rod from the steering rack.
3. Install the New Assembly
   • Attach the new inner tie rod to the steering rack and secure it.
   • Connect the outer tie rod to the steering knuckle and ensure all connections are tight.
4. Alignment Check
   • Perform a professional wheel alignment to restore proper handling and prevent uneven tire wear.

Benefits of a Functioning Tie Rod Assembly LH

1. Enhanced Safety
   • A properly functioning tie rod assembly ensures reliable steering control and reduces the risk of accidents.
2. Improved Handling
   • Smooth and precise steering enhances the driving experience.
3. Even Tire Wear
   • Maintains proper alignment, preventing premature tire wear and extending tire life.
4. Longer Component Lifespan
   • Protects other steering and suspension parts from unnecessary stress and wear.
5. Cost Savings
   • Prevents costly repairs associated with neglected tie rod issues.

Conclusion

The tie rod assembly LH is a critical component of a vehicle’s steering system, ensuring smooth, precise, and safe handling. Regular maintenance, prompt repairs, and proper alignment are essential to keep the tie rod assembly in optimal condition. By understanding its structure, function, and common issues, drivers can ensure their vehicle operates safely and efficiently for years to come. Whether you are a mechanic or a driver, the tie rod assembly LH is a vital part of the vehicle deserving close attention and care.
