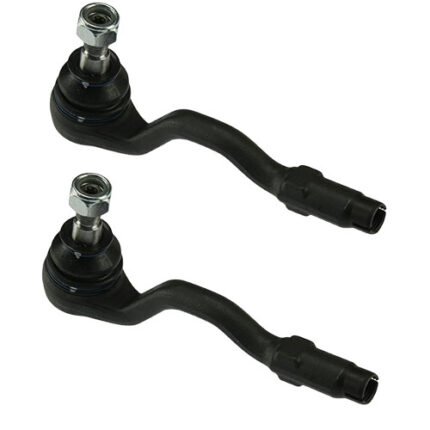

BMW F26 X4 xDrive35i N55 3.0L Tie Rod Steering End 32106792674

Get BMW F26 X4 xDrive35i N55 3.0L Tie Rod Steering End 32106792674 in Kenya

The tie rod steering end is a critical component of a vehicle’s steering and suspension system. Its role is to connect the steering rack or center link to the steering knuckle, enabling precise control of the vehicle’s direction. Despite being a relatively small component, the tie rod end directly influences vehicle handling, steering accuracy, and safety.

This article explores the function, benefits, and maintenance of tie rod steering ends, along with signs of failure and replacement procedures.

What is a Tie Rod Steering End?

A tie rod end is a ball-and-socket joint that forms part of the linkage connecting the steering system to the wheels. The assembly typically consists of:

1. Outer Tie Rod End: Connects directly to the steering knuckle, allowing rotational movement to steer the wheels.
2. Inner Tie Rod End: Connects to the steering rack or center link and transmits input from the steering gear.

The tie rod end works in conjunction with other suspension and steering components to maintain alignment and ensure that the wheels move in the desired direction when the steering wheel is turned.

Functions of a Tie Rod Steering End

1. Transmitting Steering Input
   The primary function of the tie rod end is to transmit steering input from the steering rack or gear to the wheels. It allows the wheels to pivot as the driver turns the steering wheel.
2. Maintaining Alignment
   Tie rod ends play a crucial role in maintaining proper wheel alignment, ensuring that the tires are parallel and evenly aligned with the vehicle’s frame.
3. Absorbing Vibrations
   The ball-and-socket design allows for a degree of flexibility, absorbing minor vibrations and impacts from uneven road surfaces. This contributes to smoother steering performance.
4. Supporting Suspension Movement
   The tie rod end accommodates vertical and lateral movements of the suspension system, ensuring consistent steering geometry as the vehicle travels over bumps or rough terrain.

Benefits of Tie Rod Steering Ends

1. Enhanced Steering Precision
   Tie rod ends provide a direct connection between the steering system and the wheels, enabling accurate and responsive steering.
2. Improved Safety
   By maintaining proper alignment and ensuring smooth steering operation, tie rod ends contribute to safer vehicle handling, especially during sharp turns or emergency maneuvers.
3. Extended Tire Life
   Properly functioning tie rod ends help maintain correct wheel alignment, preventing uneven tire wear and extending tire life.
4. Vibration Dampening
   The flexible design of tie rod ends reduces the transmission of road vibrations to the steering system, resulting in a more comfortable driving experience.
5. Cost-Effective Maintenance
   Tie rod ends are relatively affordable and easy to replace, making them a cost-effective solution for maintaining steering and suspension performance.

Signs of a Failing Tie Rod Steering End

A worn or damaged tie rod end can lead to steering and alignment problems, compromising vehicle safety and performance. Common symptoms include:

1. Unusual Steering Behavior
   • Excessive play in the steering wheel
   • Difficulty steering or a loose, “wandering” feeling
2. Uneven Tire Wear
   Worn tie rod ends can cause misalignment, leading to uneven or excessive wear on the inner or outer edges of the tires.
3. Steering Wheel Vibration
   A faulty tie rod end can result in vibrations in the steering wheel, especially at higher speeds.
4. Clunking or Popping Noises
   A failing tie rod end may produce clunking or popping sounds when turning the steering wheel or driving over uneven surfaces.
5. Poor Alignment
   A damaged tie rod end can cause the wheels to lose proper alignment, leading to the vehicle pulling to one side.
6. Visible Damage
   Inspecting the tie rod end may reveal cracks, corrosion, or a torn rubber boot, which exposes the joint to dirt and moisture.

Maintenance of Tie Rod Steering Ends

Regular maintenance of the tie rod end is essential for ensuring safe and efficient steering performance. Here are some tips to keep your tie rod ends in good condition:

1. Inspect Regularly
   • Perform routine visual inspections of the tie rod ends during oil changes or tire rotations.
   • Look for signs of wear, such as torn rubber boots or excessive play.
2. Lubricate the Joint
   Some tie rod ends have grease fittings for lubrication. Apply grease periodically to minimize friction and prevent premature wear.
3. Monitor Wheel Alignment
   Misaligned wheels can accelerate wear on tie rod ends. Regularly check and adjust wheel alignment to maintain proper geometry.
4. Protect Against Dirt and Moisture
   Ensure that the rubber boots covering the ball-and-socket joint are intact to keep contaminants out. Replace damaged boots promptly.
5. Replace Worn Components
   Replace tie rod ends at the first sign of wear or damage to avoid further suspension issues or safety risks.
6. Follow Maintenance Intervals
   Adhere to your vehicle manufacturer’s recommended maintenance schedule for inspecting and servicing steering and suspension components.

Replacement of Tie Rod Steering Ends

Replacing a worn or damaged tie rod end is a relatively straightforward process but requires careful attention to detail to ensure proper installation and alignment.

Tools and Materials Needed:

• Jack and jack stands
• Wrenches or socket set
• Tie rod puller or separator
• Torque wrench
• Wheel alignment tools (or professional alignment service)

Step-by-Step Procedure:

1. Prepare the Vehicle
   • Park the vehicle on a level surface.
   • Engage the parking brake and chock the wheels.
2. Lift and Support the Vehicle
   • Use a jack to lift the front of the vehicle.
   • Securely place jack stands under the frame for safety.
3. Remove the Wheel
   • Remove the lug nuts and take off the wheel to access the tie rod end.
4. Detach the Tie Rod End
   • Loosen the jam nut securing the tie rod end to the inner tie rod.
   • Remove the cotter pin and nut securing the tie rod end to the steering knuckle.
   • Use a tie rod puller or separator to disconnect the tie rod end from the knuckle.
5. Install the New Tie Rod End
   • Thread the new tie rod end onto the inner tie rod, matching the position of the old one to maintain alignment.
   • Secure the tie rod end to the steering knuckle with a new nut and cotter pin.
6. Reassemble and Test
   • Reinstall the wheel and lower the vehicle.
   • Tighten all fasteners to the manufacturer’s torque specifications.
   • Test the steering system for proper operation.
7. Perform a Wheel Alignment
   After replacing tie rod ends, it’s crucial to have the wheels professionally aligned to ensure optimal handling and tire wear.

Conclusion

The tie rod steering end is an indispensable component of a vehicle’s steering and suspension system, ensuring precise control and safe operation. By transmitting steering input, maintaining alignment, and absorbing vibrations, it plays a significant role in overall driving performance.

Regular maintenance and timely replacement of worn tie rod ends can enhance vehicle safety, extend tire life, and improve steering precision. Whether you’re a DIY enthusiast or a professional mechanic, understanding the importance of tie rod steering ends is essential for maintaining a reliable and efficient vehicle.
