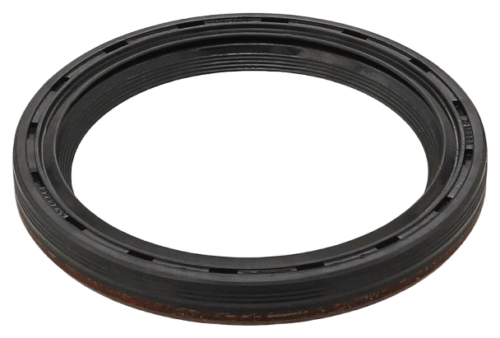

BMW G30 540d xDrive B57 3.0L Front Crankshaft Seal 11117802665

Get BMW G30 540d xDrive B57 3.0L Front Crankshaft Seal 11117802665 in Kenya

The front crankshaft seal, also known as the front main seal, is a crucial component in an internal combustion engine. This small but essential part prevents oil leaks from the front of the crankshaft, ensuring that the engine remains properly lubricated and free from contamination. Despite its relatively simple function, a failing front crankshaft seal can cause serious engine issues, oil leaks, and potential damage to surrounding components.

In this detailed guide, we will explore the function, importance, materials, types, common failure symptoms, causes of failure, replacement process, and maintenance tips of the front crankshaft seal.

What is a Front Crankshaft Seal?

The front crankshaft seal is a circular rubber or synthetic ring installed around the front end of the crankshaft, where it extends through the timing cover or engine block. It is designed to prevent engine oil from leaking out while allowing the crankshaft to rotate smoothly.

This seal is subjected to extreme conditions, including high rotational speeds, pressure, and temperature fluctuations, making it a critical component for engine efficiency and longevity.

Functions of the Front Crankshaft Seal

1. Preventing Oil Leaks

• The primary function of the front crankshaft seal is to prevent engine oil from leaking out of the front of the crankshaft.

2. Maintaining Proper Lubrication

• It ensures that engine oil stays within the lubrication system, reducing wear and tear on moving parts.

3. Protecting Engine Components

• The seal prevents dirt, dust, and debris from entering the engine, which can cause contamination and premature wear.

4. Supporting Engine Performance

• A properly sealed crankshaft helps maintain the correct oil pressure, ensuring smooth engine operation.

Materials and Construction of a Crankshaft Seal

Modern front crankshaft seals are made of durable, heat-resistant materials to withstand extreme engine conditions. Common materials include:

1. Rubber (Nitrile or Viton)

• Offers excellent flexibility and sealing properties.
• Resistant to oil, fuel, and high temperatures.

2. PTFE (Polytetrafluoroethylene) or Teflon

• Used in high-performance applications.
• Provides low friction and excellent longevity.

3. Silicone

• Found in high-temperature engines.
• Resistant to thermal expansion and cracking.

4. Metal Reinforcement

• Some seals include a metal outer ring to provide additional strength and durability.

Types of Front Crankshaft Seals

There are two primary types of front crankshaft seals:

1. Lip Seals

• The most common type, featuring a rubber or PTFE sealing lip that presses against the crankshaft.
• Supported by a spring-loaded tensioner to maintain a tight seal.

2. PTFE (Teflon) Seals

• Advanced design offering low friction and extended lifespan.
• Commonly used in modern engines for better wear resistance and efficiency.

Common Symptoms of a Failing Front Crankshaft Seal

A worn-out or damaged crankshaft seal can lead to various engine issues. Here are some common warning signs:

1. Engine Oil Leaks

• One of the most noticeable signs is oil dripping from the front of the engine.
• Leaks often accumulate near the timing cover or crankshaft pulley.

2. Burning Oil Smell

• If leaking oil drips onto hot engine parts, it can burn and create a strong burning oil odor.

3. Low Engine Oil Levels

• A damaged seal can lead to a gradual loss of oil, requiring frequent top-ups.
• Low oil levels can cause increased engine wear and overheating.

4. Noisy or Worn Timing Belt/Chain

• Oil leakage can contaminate the timing belt or timing chain, leading to slipping, premature wear, or breakage.

5. Visible Cracks or Damage on the Seal

• If inspected, a failing crankshaft seal may show visible cracks, hardening, or distortion.

Causes of Front Crankshaft Seal Failure

Several factors contribute to premature crankshaft seal wear:

1. Age and Wear

• Over time, seals can become brittle, cracked, or deformed, leading to leaks.

2. High Engine Temperatures

• Excessive heat exposure can degrade the rubber or synthetic material of the seal.

3. Poor Engine Oil Quality

• Contaminated or low-quality oil can cause seal deterioration and loss of flexibility.

4. Excessive Crankshaft Vibration

• Worn engine mounts or imbalanced crankshafts can cause excessive movement, leading to seal failure.

5. Improper Installation

• If a seal is not installed properly or aligned correctly, it can wear out prematurely.

How to Replace a Front Crankshaft Seal

Replacing a front crankshaft seal requires precision and mechanical skill.

Tools Required:

• New front crankshaft seal (OEM recommended)
• Socket set and wrenches
• Crankshaft pulley removal tool
• Seal removal tool
• Torque wrench
• Gasket sealer (if necessary)

Replacement Procedure:

1. Disconnect the Battery
   • Prevents accidental starts during the repair process.
2. Remove the Drive Belt
   • Loosen and remove the serpentine or accessory drive belt.
3. Remove the Crankshaft Pulley
   • Use a crankshaft pulley puller to carefully remove the pulley.
4. Extract the Old Seal
   • Use a seal puller or flathead screwdriver to pry out the old seal carefully.
5. Clean the Mounting Surface
   • Wipe away any oil or debris from the crankshaft and surrounding area.
6. Install the New Seal
   • Lubricate the seal with clean engine oil before installing.
   • Gently press the seal into place using a seal driver or a large socket.
7. Reinstall the Crankshaft Pulley
   • Align and torque the pulley bolt to manufacturer specifications.
8. Reassemble and Check for Leaks
   • Reinstall the drive belt and start the engine to check for leaks.

Maintenance Tips for Front Crankshaft Seals

To extend the lifespan of a front crankshaft seal and prevent premature failure:

1. Use High-Quality Engine Oil

• Synthetic oils offer better lubrication and seal protection.

2. Perform Regular Oil Changes

• Fresh oil prevents contaminant buildup, which can damage seals.

3. Inspect the Crankshaft Pulley and Harmonic Balancer

• A damaged or wobbly pulley can cause seal wear and failure.

4. Keep the Cooling System in Good Condition

• Prevent overheating, which can degrade seals faster.

5. Address Engine Vibrations Promptly

• Excessive vibration can put stress on seals and surrounding components.

Conclusion

The front crankshaft seal is a small yet vital component in any engine, ensuring that oil stays contained while allowing the crankshaft to rotate smoothly. While it is designed to last for thousands of miles, wear, heat, and contamination can lead to failure over time.

By understanding its function, recognizing failure symptoms, and maintaining proper oil and cooling system health, vehicle owners can prevent leaks, protect their engine, and ensure long-term performance. If a seal fails, prompt replacement is essential to avoid costly engine damage.
