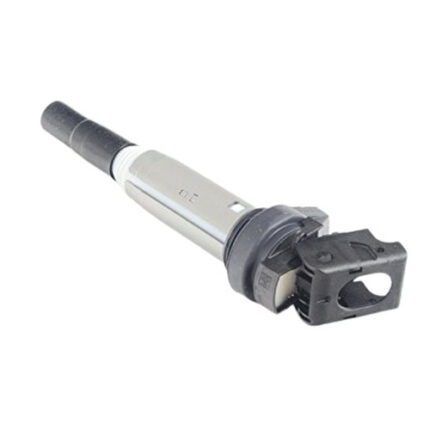

BMW X5 320i Ignition Coil 12131703227

Get BMW X5 320i Ignition Coil 12131703227 in Kenya

The ignition coil is a critical component of an internal combustion engine’s ignition system. It transforms the low voltage from the battery into the high voltage needed to create a spark at the spark plugs, igniting the air-fuel mixture within the engine cylinders. This guide explores the ignition coil’s structure, functionality, common issues, maintenance tips, and replacement process.

What is an Ignition Coil?

An ignition coil is an electromagnetic device that acts as a transformer, converting 12-volt battery power into the thousands of volts required for spark ignition. Depending on the vehicle’s ignition system, a car can have one ignition coil or a coil for each cylinder.

Components of an Ignition Coil

1. Primary Coil Winding
   • Made of thick copper wire, this winding receives current from the battery.
2. Secondary Coil Winding
   • Composed of thousands of fine wire loops, this winding generates high voltage.
3. Core
   • A soft iron core that enhances the magnetic field created by the primary coil.
4. Housing
   • Protects the internal components from heat, vibration, and moisture.
5. Terminals
   • Connects the coil to the battery, ignition module, and spark plug.

How Does an Ignition Coil Work?

The ignition coil operates on electromagnetic induction, similar to a transformer. Here’s how it works:

1. Current Flow in the Primary Coil
   • When the ignition system sends a signal, the coil’s primary winding receives current from the battery. This creates a magnetic field around the coil.
2. Interruption of Current
   • The ignition module or contact breaker interrupts the current flow, causing the magnetic field to collapse rapidly.
3. Voltage Induction in the Secondary Coil
   • The collapsing magnetic field induces a high voltage (10,000–40,000 volts) in the secondary winding.
4. Delivery to the Spark Plug
   • The high voltage travels through the distributor or directly to the spark plug, creating a spark that ignites the air-fuel mixture.

Types of Ignition Coils

1. Conventional Ignition Coils
   • Found in older vehicles, these work with a distributor to deliver high voltage to the spark plugs.
2. Coil Pack
   • A set of multiple ignition coils, typically used in modern engines with distributor-less ignition systems.
3. Coil-on-Plug (COP)
   • Each cylinder has its own coil mounted directly on the spark plug, reducing energy loss.
4. Coil-Near-Plug (CNP)
   • Similar to COP systems but with coils located near the spark plugs and connected by short wires.

Functions of an Ignition Coil

1. Voltage Transformation
   • Converts low battery voltage to high voltage for spark ignition.
2. Ignition Timing
   • Ensures the spark occurs at the precise moment needed for efficient combustion.
3. Efficient Combustion
   • Provides a strong, consistent spark to ignite the air-fuel mixture, optimizing engine performance.
4. Emission Control
   • Supports complete combustion, reducing harmful emissions.

Signs of a Failing Ignition Coil

An ignition coil failure can lead to various engine performance issues. Common symptoms include:

1. Engine Misfires
   • A weak or absent spark causes incomplete combustion, resulting in misfires.
2. Poor Fuel Economy
   • Inadequate combustion leads to increased fuel consumption.
3. Difficulty Starting
   • A malfunctioning coil can prevent the engine from starting reliably.
4. Check Engine Light
   • Modern vehicles may display a diagnostic trouble code (DTC) indicating an ignition system issue.
5. Rough Idling
   • An uneven or weak spark can cause vibrations and rough engine operation.
6. Loss of Power
   • A failed coil reduces the engine’s ability to generate power efficiently.

Causes of Ignition Coil Failure

Several factors can contribute to ignition coil failure:

1. Heat and Vibration
   • Constant exposure to engine heat and vibrations can damage the coil’s internal components.
2. Electrical Overload
   • Faulty wiring or excessive current flow can overload the coil, leading to failure.
3. Wear and Tear
   • Over time, insulation within the coil can degrade, causing short circuits.
4. Contaminants
   • Oil leaks, moisture, and dirt can compromise the coil’s functionality.
5. Spark Plug Issues
   • Worn or improperly gapped spark plugs can place additional stress on the coil.

Maintenance Tips for Ignition Coils

1. Inspect Regularly
   • Check the coil for signs of damage, such as cracks, corrosion, or carbon tracking.
2. Replace Spark Plugs on Time
   • Use the correct type and gap to reduce stress on the ignition coil.
3. Keep Components Clean
   • Ensure the coil and surrounding areas are free of dirt, oil, and moisture.
4. Avoid Electrical Overloads
   • Address any wiring issues promptly to prevent overloading the coil.
5. Check Engine Performance
   • If you notice misfires or rough idling, test the ignition coil as part of your diagnostics.

Diagnosing a Faulty Ignition Coil

To confirm an ignition coil issue, mechanics often perform the following tests:

1. Visual Inspection
   • Look for cracks, burns, or carbon tracks on the coil housing.
2. Resistance Test
   • Use a multimeter to measure the resistance of the primary and secondary windings.
3. Spark Test
   • Check if the coil produces a strong spark using a spark tester.
4. OBD-II Scan
   • Retrieve diagnostic trouble codes (DTCs) indicating ignition system issues.
5. Swap Test
   • Swap the suspect coil with a known good one to isolate the issue.

Replacing an Ignition Coil

If an ignition coil is damaged or faulty, replacement is often the best solution. Here’s a general overview of the process:

Tools Needed

• Socket set
• Screwdrivers
• Torque wrench
• Dielectric grease

Steps for Replacement

1. Disconnect the Battery
   • Prevent electrical accidents by disconnecting the negative terminal.
2. Locate the Ignition Coil
   • Refer to the vehicle manual to find the coil(s).
3. Remove the Old Coil
   • Disconnect the electrical connectors and mounting bolts, then gently remove the coil.
4. Inspect Surrounding Components
   • Check for damage to wiring, connectors, or spark plugs.
5. Install the New Coil
   • Apply dielectric grease to the terminals, then secure the new coil with bolts and connectors.
6. Reconnect the Battery
   • Reattach the negative terminal and test the engine to ensure proper operation.

Benefits of a Functional Ignition Coil

1. Optimal Engine Performance
   • Delivers consistent and powerful sparks for efficient combustion.
2. Reduced Emissions
   • Promotes complete combustion, lowering harmful exhaust gases.
3. Smooth Operation
   • Eliminates misfires, rough idling, and loss of power.
4. Prolonged Engine Lifespan
   • Reduces stress on other engine components by ensuring proper ignition timing.

Conclusion

The ignition coil is a vital component of a vehicle’s ignition system, responsible for transforming low voltage into the high voltage needed for spark ignition. Regular maintenance, timely diagnostics, and prompt replacement of faulty coils ensure optimal engine performance, fuel efficiency, and reduced emissions. By understanding its function and care requirements, you can keep your ignition coil in top condition, ensuring a smoother and more reliable driving experience.
