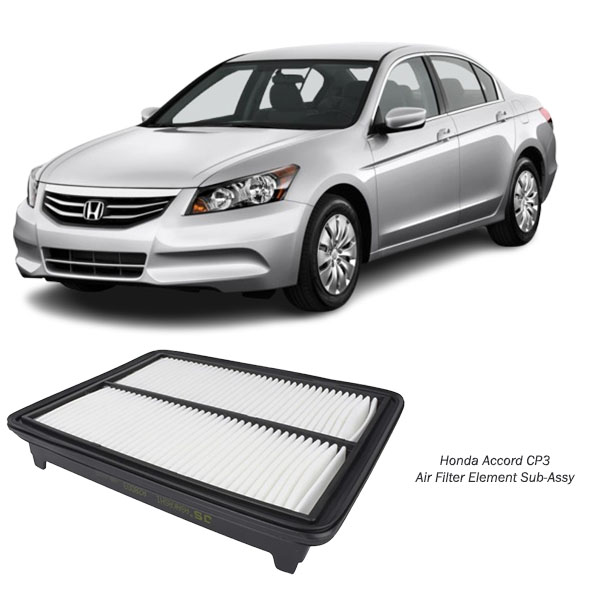

Get Honda Accord CP3 Air Filter Element Sub Assy 17220-R70-A00 in Kenya
The air filter element sub-assembly is a critical component in the air intake systems of various internal combustion engines (ICE), including those used in automobiles, trucks, industrial machinery, and other vehicles. Its primary function is to filter out contaminants such as dirt, dust, debris, and other particulate matter from the air before it enters the engine’s combustion chambers. This ensures that the engine operates efficiently, prolongs its lifespan, and maintains optimal performance.
In this detailed explanation, we will explore the design, construction, functionality, and importance of the air filter element sub-assembly, along with its various types, materials, maintenance needs, and technological advancements.
1. Purpose and Function of the Air Filter Element Sub-Assembly
The air filter element sub-assembly is located within the larger air intake system of an engine, typically housed in an air filter box. Its primary purpose is to prevent harmful particles from entering the engine, which could damage sensitive components like the pistons, valves, and cylinders. A clean air supply is essential for the engine’s fuel combustion process. Air that contains impurities such as dirt, pollen, and soot could interfere with engine performance by causing excessive wear on engine components and increasing fuel consumption.
In addition to protecting engine components, the air filter helps in:
- Optimizing air-fuel mixture: Clean air ensures that the engine receives the proper ratio of air to fuel, enhancing fuel efficiency.
- Maintaining engine efficiency: A clogged or dirty filter restricts airflow, reducing engine efficiency and overall power output.
- Preventing overheating: An efficient air filtration system prevents air contamination, reducing engine overheating and potential damage due to excessive particulate buildup.
2. Design and Components of the Air Filter Element Sub-Assembly
An air filter element sub-assembly typically consists of several components designed to provide efficient filtration and protection to the engine. These components include:
a. Filter Media
The filter media is the heart of the air filter element and is responsible for trapping dirt and particulate matter. The media is usually made of various materials such as:
- Paper: Pleated paper filters are common due to their cost-effectiveness, filtering efficiency, and ease of production. They provide a large surface area for capturing dust and dirt particles.
- Cotton: This material is often used in high-performance air filters due to its ability to trap more dirt while maintaining good airflow.
- Foam: Foam filters are typically used in motorcycles, off-road vehicles, or where reusable filters are preferred. They can be cleaned and reused multiple times.
- Synthetic Materials: High-efficiency filters might use synthetic fiber materials, which are designed to trap smaller particles and last longer.
b. Frame/Holder
The frame or holder is the structure that holds the filter media in place and provides the necessary rigidity for the filter element. The frame is often made of plastic or metal, designed to prevent the filter from collapsing under high air pressure or suction. It is also designed to ensure a secure and airtight seal between the filter element and the air intake system.
c. Seals
Seals around the air filter ensure that air flows through the filter element and not around it. These seals are typically made from rubber or silicone materials, and their role is crucial in maintaining the integrity of the filtration process. Any air bypassing the filter due to poor sealing will lead to reduced filtration efficiency.
d. End Caps
In many air filter designs, end caps are placed at both ends of the filter media to help secure it. These caps are often made from plastic or metal and can be designed to include mounting points for easy integration with the air filter housing.
3. Types of Air Filter Elements
Air filters are classified into different types based on their applications and design. The common types include:
a. Paper Air Filters
Paper filters are the most commonly used type of air filter in modern vehicles. Their pleated design increases the surface area for capturing particles. Paper filters are inexpensive, highly effective, and require replacement rather than cleaning. However, they may not be suitable for extreme performance applications where higher air flow is needed.
b. Cotton Gauze Filters
Cotton gauze filters are typically used in performance vehicles and motorcycles. They provide a greater flow of air compared to paper filters and are reusable after cleaning and oiling. However, cotton filters are typically less efficient at trapping very fine particles compared to paper filters.
c. Foam Filters
Foam filters are used in off-road vehicles, motorcycles, and some industrial applications. They are designed for high filtration efficiency while maintaining a high flow rate. Foam filters can be cleaned and reused, making them environmentally friendly and cost-effective in the long run.
d. Electrostatic Air Filters
These filters use an electrostatic charge to attract and trap particles, including fine dust and pollen. They are typically used in high-performance applications, including some automotive and industrial applications.
4. Materials Used in the Manufacturing of Air Filter Element Sub-Assemblies
The materials chosen for the construction of an air filter element significantly impact its performance and longevity. These materials need to balance filtration efficiency, air flow, and durability under the harsh operating conditions of an engine.
a. Paper
Cellulose paper is a cost-effective material for air filters, with pleating used to maximize surface area. It is often treated with resin to increase strength and provide better filtration.
b. Cotton
Cotton filters are typically used in high-performance applications. They can trap a larger amount of dirt without restricting air flow, but they require regular cleaning and oiling to maintain their effectiveness.
c. Foam
Foam is a lightweight, durable, and reusable material often used in off-road filters. It offers high dirt retention and allows good airflow, but it needs to be cleaned and maintained regularly.
d. Synthetic Fibers
Synthetic materials are used in premium air filters, often in the form of fine meshes or non-woven fabrics. These materials can filter smaller particles and have better dirt-holding capacity compared to paper and cotton, extending the filter’s lifespan.
5. Importance of the Air Filter Element Sub-Assembly
The air filter element sub-assembly plays a vital role in engine performance and longevity. Here are some key points illustrating its importance:
a. Protection of Engine Components
Contaminated air can lead to premature wear and tear on the engine’s internal components, particularly the pistons and cylinders. By filtering out harmful particles, the air filter ensures that only clean air enters the combustion chamber, thereby protecting critical engine parts from damage.
b. Engine Performance
An efficient air filter ensures optimal combustion by maintaining the proper air-fuel ratio. Restricted airflow due to a clogged or inefficient air filter can reduce engine power, leading to poor acceleration, reduced fuel efficiency, and increased emissions.
c. Fuel Economy
A clogged air filter reduces the engine’s efficiency, forcing it to work harder to achieve the desired power output. This results in more fuel consumption. A clean air filter contributes to better fuel economy and lower operating costs.
d. Preventing Overheating
Dirty air can cause an engine to overheat due to inefficient combustion, which may lead to engine failure if left unaddressed. A high-quality air filter reduces the risk of overheating by ensuring the engine operates within optimal conditions.
6. Maintenance and Replacement
Regular maintenance of the air filter element is crucial for maintaining engine performance. The frequency of air filter replacement depends on the type of filter and the operating conditions. For example, vehicles operating in dusty environments may require more frequent air filter changes. In general:
- Paper filters should be replaced periodically as they cannot be cleaned.
- Cotton and foam filters can often be cleaned, oiled, and reused multiple times.
- A clogged or dirty filter should be replaced immediately, as it can severely impact engine performance and fuel efficiency.
Conclusion
The air filter element sub-assembly is a vital component of the air intake system in internal combustion engines. By filtering out harmful particles, it ensures that the engine operates efficiently, preventing damage, improving fuel economy, and maintaining performance. With advances in filter materials and designs, air filters have become more efficient, durable, and capable of handling the demands of modern engines. Regular maintenance and timely replacement of the air filter are essential to ensure that engines continue to run smoothly and reliably.
