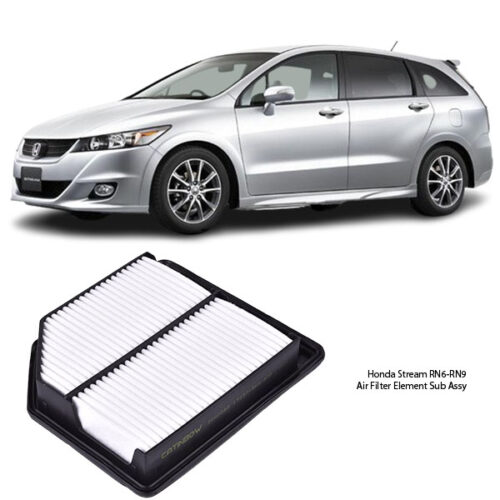

Honda Stream RN6-RN9 Air Filter Element Sub Assy 17220-RNA-A00

Get Honda Stream RN6-RN9 Air Filter Element Sub Assy 17220-RNA-A00 in Kenya

The air filter element sub-assembly is an integral part of a vehicle’s air intake system, designed to filter out contaminants such as dust, dirt, pollen, and other airborne debris before they enter the engine. This ensures that only clean air reaches the combustion chamber, optimizing fuel combustion and prolonging engine life.

A well-maintained air filter element sub-assembly is crucial for engine efficiency, fuel economy, and reduced emissions. This detailed guide will cover its functions, components, types, benefits, symptoms of failure, maintenance practices, and replacement procedures.

What is an Air Filter Element Sub-Assembly?

The air filter element sub-assembly is a specialized component within the air intake system, responsible for trapping airborne contaminants before they mix with fuel for combustion. It consists of:

1. Filter Media – A fibrous or mesh material that captures particles.
2. Support Frame – A rigid structure that holds the filter in place.
3. Sealing Gasket – Prevents unfiltered air from bypassing the filter.
4. Air Intake Duct – Guides airflow into the engine’s throttle body.

Unlike a standard air filter, the sub-assembly includes additional reinforcements, ensuring better durability, fitment, and filtration performance.

How Does an Air Filter Element Sub-Assembly Work?

The filtration process ensures that only clean air reaches the engine, preventing dirt from damaging vital components. Here’s how it works:

1. Air Intake – As the engine runs, air is drawn through the intake duct.
2. Filtration – The air passes through the filter media, trapping dust, pollen, and other contaminants.
3. Clean Air Distribution – The purified air moves into the intake manifold and mixes with fuel for combustion.
4. Exhaust Emission Control – A clean air-fuel mixture leads to complete combustion, reducing carbon buildup and emissions.

A dirty or clogged air filter sub-assembly disrupts this process, leading to reduced power, poor fuel efficiency, and increased emissions.

Types of Air Filter Element Sub-Assemblies

Different vehicles require different types of air filters based on driving conditions and engine specifications.

1. Paper Air Filter Sub-Assembly

• Made of pleated cellulose fibers.
• Common in passenger vehicles due to affordability.
• Designed for one-time use (disposable).

2. Foam Air Filter Sub-Assembly

• Constructed from polyurethane foam.
• Ideal for off-road and high-dust environments.
• Can be cleaned and reused with proper maintenance.

3. Cotton Air Filter Sub-Assembly

• Uses oiled cotton gauze for superior filtration.
• Found in performance and racing vehicles.
• Reusable and long-lasting but requires periodic cleaning.

4. Carbon-Activated Air Filter Sub-Assembly

• Contains a layer of activated carbon to absorb odors and pollutants.
• Common in hybrid and luxury vehicles.
• Helps in reducing air pollution inside the engine.

5. High-Performance Air Filter Sub-Assembly

• Designed for maximum airflow and horsepower gain.
• Used in turbocharged and sports cars.
• Requires frequent maintenance for optimal efficiency.

Benefits of an Air Filter Element Sub-Assembly

A properly functioning air filter sub-assembly provides numerous advantages to the engine and overall vehicle performance.

1. Protects the Engine

• Prevents dust, dirt, and debris from entering the combustion chamber.
• Reduces engine wear and prolongs the lifespan of internal components.

2. Improves Fuel Efficiency

• Ensures an optimal air-fuel mixture, reducing fuel consumption.
• A clogged filter can reduce fuel efficiency by up to 10%.

3. Enhances Engine Performance

• Allows unrestricted airflow, improving acceleration and throttle response.
• Helps maintain optimal engine power in all driving conditions.

4. Reduces Emissions

• Clean air filters enable complete fuel combustion, minimizing exhaust pollutants.
• Helps vehicles meet environmental and emission regulations.

5. Supports Turbocharged Engines

• Turbocharged engines require high airflow rates, which a clean air filter provides.
• Prevents turbo lag and overheating.

6. Prolongs Other Engine Components

• Protects spark plugs, sensors, and fuel injectors from contaminants.
• Reduces the likelihood of engine misfires and starting issues.

Symptoms of a Dirty or Clogged Air Filter Element Sub-Assembly

A clogged or damaged air filter sub-assembly can lead to several performance issues.

1. Decreased Engine Power

• A blocked filter restricts airflow, causing sluggish acceleration.

2. Poor Fuel Economy

• Insufficient air supply forces the engine to consume more fuel.

3. Black Smoke from the Exhaust

• A clogged filter leads to rich fuel combustion, producing black smoke.

4. Rough Idling and Engine Hesitation

• Inconsistent airflow affects combustion, causing engine misfires.

5. Check Engine Light

• Restricted airflow may trigger an error code on the Mass Airflow Sensor (MAF).

6. Strong Fuel Smell

• Unburnt fuel exiting the exhaust is a sign of inefficient combustion.

Causes of Air Filter Element Sub-Assembly Failure

Several factors can contribute to air filter degradation:

1. Driving in Dusty Conditions – Accelerates dirt buildup.
2. Poor Maintenance – Neglecting periodic replacements leads to clogging.
3. Low-Quality Filters – Cheap filters provide poor filtration efficiency.
4. Oil and Moisture Contamination – Damages filter media, reducing airflow.

Maintenance and Replacement Tips

A well-maintained air filter sub-assembly ensures optimal engine performance and longevity.

1. Inspect the Filter Regularly

• Check the air filter every 10,000 to 15,000 miles.
• If the filter appears dark or clogged, replace it immediately.

2. Clean Reusable Filters Properly

• Foam and cotton filters require washing and re-oiling periodically.
• Avoid over-oiling, as it may damage MAF sensors.

3. Use High-Quality Filters

• Always opt for OEM or premium aftermarket air filters.

4. Avoid Driving in Extremely Dusty Areas

• If unavoidable, increase the frequency of filter checks and replacements.

5. Check for Air Leaks

• Ensure the air filter housing is properly sealed to prevent unfiltered air intake.

How to Replace an Air Filter Element Sub-Assembly

Replacing an air filter is a simple and quick process that can be done at home.

Steps to Replace the Air Filter Sub-Assembly:

1. Locate the Air Filter Housing – Usually inside the engine bay or near the intake manifold.
2. Remove the Housing Cover – Unscrew or unclip the cover to access the filter.
3. Take Out the Old Filter – Inspect it for dirt and debris.
4. Insert the New Filter – Ensure it fits securely in the housing.
5. Reassemble the Housing – Close and secure the cover properly.

Pro Tip: Always check your vehicle manual for specific replacement intervals.

Conclusion

The air filter element sub-assembly is a vital component that ensures clean airflow, optimal combustion, and engine longevity. Regular inspection and timely replacement help maintain fuel efficiency, engine power, and emission control.

If you notice reduced performance, black exhaust smoke, or poor fuel economy, it might be time to replace your air filter element sub-assembly! 🚗🔧
