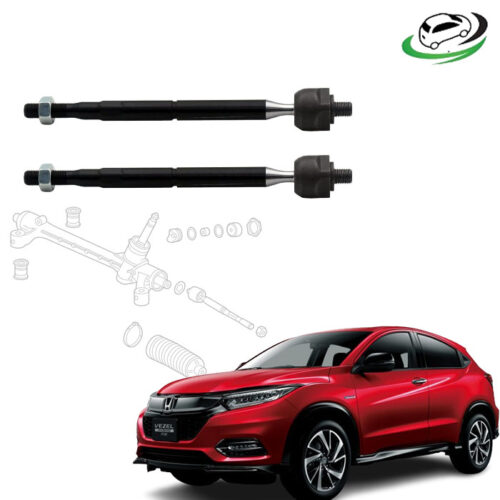

Honda Vezel Steering Rack End Sub-Assy Set 53010-T7A-003

Get Honda Vezel Steering Rack End Sub-Assy Set 53010-T7A-003 in Kenya

The Steering Rack End Sub-Assembly, often referred to simply as the rack end, is a critical component of a vehicle’s steering system. It plays a vital role in converting the rotational motion of the steering wheel into linear motion, which allows the wheels to turn and the vehicle to navigate roads effectively. In this detailed explanation, we will explore the functionality, components, benefits, common issues, maintenance tips, and overall significance of the steering rack end sub-assembly.

What Is a Steering Rack End Sub-Assembly?

The steering rack end sub-assembly is a part of the rack-and-pinion steering system. It connects the steering rack to the outer tie rods, which are then attached to the steering knuckles on the wheels. This component is responsible for transmitting force from the steering rack to the tie rods, enabling the wheels to steer in response to the driver’s inputs.

Components of the Steering Rack End Sub-Assembly

1. Inner Tie Rod:
   The inner tie rod is a core element of the rack end. It attaches directly to the steering rack and is designed to withstand the tension and compression forces generated during steering.
2. Ball Joint:
   A ball joint at the connection point allows for flexible movement and articulation, accommodating the dynamic motion of the suspension system.
3. Boot or Dust Cover:
   A protective rubber boot or cover shields the inner tie rod and ball joint from dirt, moisture, and debris, ensuring longevity and optimal performance.
4. Lock Nut:
   The lock nut secures the tie rod in position, preventing it from loosening during vehicle operation.

Functionality of the Steering Rack End Sub-Assembly

1. Transmits Steering Force:
   The rack end transfers motion from the steering rack to the tie rods, enabling the wheels to turn.
2. Absorbs Suspension Movement:
   The ball joint in the assembly allows for smooth articulation, accommodating the movement of the suspension system over uneven terrain.
3. Maintains Alignment:
   It ensures that the steering geometry remains intact, supporting stable and predictable handling.
4. Supports Precision Steering:
   The rack end’s design minimizes play and slack, providing precise and responsive steering control.

Benefits of a High-Quality Steering Rack End Sub-Assembly

1. Improved Handling and Stability:
   A robust and well-maintained rack end ensures smooth and stable steering, particularly during cornering and at high speeds.
2. Enhanced Driver Control:
   Precision in steering response enables better control of the vehicle, improving safety and driving experience.
3. Prolonged Tire Life:
   Proper alignment facilitated by the rack end reduces uneven tire wear, extending the lifespan of the tires.
4. Reduced Vibrations:
   High-quality components dampen vibrations from the road, contributing to a more comfortable ride.
5. Lower Maintenance Costs:
   Durable rack ends reduce the frequency of replacements and associated repair costs.

Common Issues with Steering Rack End Sub-Assembly

1. Wear and Tear:
   Over time, the inner tie rod and ball joint can wear out due to constant use and exposure to stress.
2. Damaged Dust Boot:
   A torn or damaged boot can allow contaminants to enter, accelerating wear and causing premature failure.
3. Loose or Worn Ball Joints:
   A loose ball joint can lead to steering play, reduced precision, and potential safety risks.
4. Alignment Problems:
   A damaged or worn rack end can cause misalignment, resulting in uneven tire wear and poor handling.
5. Noises During Steering:
   Clunking or knocking noises when turning the steering wheel are often indicative of a failing rack end.

Signs of a Failing Steering Rack End Sub-Assembly

1. Steering Play:
   If the steering feels loose or imprecise, it may indicate a problem with the rack end.
2. Unusual Tire Wear:
   Uneven or excessive tire wear can result from misalignment caused by a worn or damaged rack end.
3. Noisy Steering:
   Clicking, popping, or knocking noises when steering are often symptoms of a failing ball joint or inner tie rod.
4. Vibrations:
   Vibrations felt in the steering wheel, especially at high speeds, may signal a failing rack end.
5. Alignment Issues:
   If the vehicle pulls to one side or struggles to maintain a straight line, the rack end may need attention.

Causes of Steering Rack End Sub-Assembly Wear

1. Driving Conditions:
   Potholes, rough terrain, and frequent off-road driving can accelerate wear on the rack end.
2. Lack of Maintenance:
   Neglecting regular inspections and lubrication can lead to faster degradation of the assembly.
3. Aging Components:
   Like all mechanical parts, the rack end has a finite lifespan and will wear out over time.
4. Exposure to Elements:
   Dirt, water, and road salts can compromise the protective dust boot, leading to internal damage.

Maintenance Tips for Steering Rack End Sub-Assembly

1. Regular Inspections:
   Inspect the rack end during routine maintenance or alignment services to catch early signs of wear.
2. Protective Measures:
   Ensure the dust boots are intact and replace them promptly if damaged.
3. Use Quality Parts:
   When replacing the rack end, choose high-quality OEM or aftermarket parts for durability and reliability.
4. Wheel Alignment:
   Perform wheel alignment after replacing the rack end to ensure proper steering geometry.
5. Lubrication:
   Ensure that the ball joints and other moving parts are adequately lubricated to minimize wear.

Replacing a Steering Rack End Sub-Assembly

Replacing a steering rack end sub-assembly requires specialized tools and expertise. Below is a general overview of the process:

1. Prepare the Vehicle:
   • Lift the vehicle securely and remove the wheels for access.
2. Remove the Outer Tie Rod:
   • Loosen and remove the tie rod from the rack end assembly.
3. Detach the Rack End:
   • Use a tie rod end tool or wrench to unscrew and remove the rack end from the steering rack.
4. Install the New Rack End:
   • Thread the new rack end onto the steering rack and secure it in place.
5. Reassemble Components:
   • Reattach the tie rod and other components, ensuring proper alignment and torque specifications.
6. Perform Alignment:
   • Conduct a wheel alignment to restore correct steering geometry.

Cost of Replacing a Steering Rack End Sub-Assembly

The cost of replacement varies depending on the vehicle make, model, and labor charges.

• Part Cost: $20 to $100, depending on quality and brand.
• Labor Costs: $100 to $300, depending on the complexity of the replacement.

Importance of Timely Replacement

Delaying the replacement of a worn steering rack end can lead to:

• Reduced steering precision and safety.
• Accelerated wear on tires and suspension components.
• Increased repair costs due to damage to associated parts.

Timely replacement ensures optimal vehicle performance and safety on the road.

Conclusion

The steering rack end sub-assembly is a vital component of the steering system, providing the link between the steering rack and the wheels. Its role in ensuring precise and responsive steering makes it crucial for vehicle performance and safety. Regular inspections, timely replacements, and proper maintenance are essential to keep this component in optimal condition. Investing in a high-quality rack end sub-assembly not only enhances driving comfort and handling but also ensures the longevity of the entire steering system.
