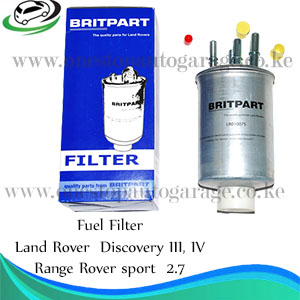

Land Rover Discovery III Fuel Filter Sub Assy FC0037

The fuel filter sub-assembly is a crucial component in a vehicle’s fuel system, playing a key role in ensuring the delivery of clean fuel to the engine. By removing impurities such as dirt, rust, and debris from the fuel, it protects the engine’s intricate components and ensures optimal performance. This detailed guide will delve into the design, functionality, benefits, maintenance, and issues associated with fuel filter sub-assemblies, providing a comprehensive understanding of their importance.

What is a Fuel Filter Sub-Assembly?

A fuel filter sub-assembly is a combination of the fuel filter and its related components that work together to purify fuel before it reaches the engine. It is typically housed within the fuel delivery system and may include additional elements such as:

1. Filter Element: The main component that traps contaminants.
2. Housing: Encases the filter to protect it from external damage and ensures a secure fit.
3. Inlet and Outlet Ports: Facilitate the flow of fuel into and out of the assembly.
4. Pressure Regulators (in some designs): Maintain consistent fuel pressure for optimal performance.

Functions of the Fuel Filter Sub-Assembly

1. Filtration of Fuel:
   • Removes solid particles and contaminants to prevent engine damage.
2. Protecting Fuel Injectors:
   • Ensures clean fuel flows through the injectors, promoting efficient spray patterns and combustion.
3. Maintaining Engine Performance:
   • Prevents blockages in the fuel system, ensuring smooth and consistent power delivery.
4. Extending Engine Longevity:
   • Reduces wear and tear on critical engine components by eliminating abrasive particles.
5. Enhancing Fuel Efficiency:
   • Promotes better combustion by ensuring a clean fuel supply.

Types of Fuel Filters in Sub-Assemblies

1. Inline Fuel Filters:
   • Positioned along the fuel line between the fuel tank and the engine.
   • Common in many passenger vehicles.
2. Cartridge Fuel Filters:
   • Installed within a reusable housing.
   • Only the filter element is replaced during maintenance.
3. Spin-On Fuel Filters:
   • A self-contained unit that is replaced entirely during servicing.
   • Easy to install and commonly used in older vehicle models.
4. Diesel Fuel Filters:
   • Designed to separate water from diesel fuel in addition to filtering contaminants.
   • Often includes a water drain for added functionality.
5. Strainer Fuel Filters:
   • Typically located in the fuel tank.
   • Acts as the first line of defense by trapping larger debris.

Importance of Clean Fuel

Fuel contamination can occur due to various factors, including sediment in storage tanks, water intrusion, and the natural degradation of fuel over time. If unfiltered fuel enters the engine, it can lead to several problems:

• Clogged Fuel Injectors: Impurities disrupt fuel spray patterns, leading to inefficient combustion.
• Reduced Engine Performance: Dirty fuel hampers the engine’s ability to produce power.
• Increased Wear and Tear: Abrasive particles cause damage to sensitive engine components.
• Higher Emissions: Incomplete combustion due to contaminated fuel results in increased pollutants.

Signs of a Failing Fuel Filter Sub-Assembly

1. Reduced Engine Performance:
   • Sluggish acceleration or a noticeable drop in power output.
2. Difficulty Starting the Engine:
   • Restricted fuel flow can make it hard for the engine to start.
3. Poor Fuel Economy:
   • The engine works harder to compensate for restricted fuel flow, consuming more fuel.
4. Frequent Stalling:
   • Insufficient fuel supply causes the engine to stall intermittently.
5. Engine Misfires:
   • Inconsistent fuel delivery leads to incomplete combustion cycles.
6. Illuminated Check Engine Light:
   • Modern vehicles may detect fuel system issues and trigger a warning light.

Maintenance of Fuel Filter Sub-Assemblies

1. Regular Inspections:
   • Check the fuel filter during routine maintenance to ensure it is not clogged or damaged.
2. Timely Replacement:
   • Replace the filter according to the manufacturer’s recommendations, typically every 20,000 to 40,000 miles, or sooner for diesel engines.
3. Drain Water from Diesel Filters:
   • Diesel filters with water-separating functionality should be drained periodically to prevent water accumulation.
4. Use High-Quality Fuel:
   • Opt for reputable fuel stations to minimize the risk of contamination.
5. Avoid Overfilling the Fuel Tank:
   • Overfilling can introduce sediment into the fuel system.

Steps to Replace a Fuel Filter Sub-Assembly

1. Relieve Fuel System Pressure:
   • Disconnect the fuel pump relay and run the engine until it stalls.
2. Locate the Fuel Filter:
   • Refer to the vehicle manual for the precise location, often near the fuel tank or along the fuel line.
3. Disconnect the Fuel Lines:
   • Use a wrench or special tool to disconnect the inlet and outlet lines.
4. Remove the Old Filter Assembly:
   • Unscrew or unclip the housing and carefully extract the filter.
5. Install the New Filter Assembly:
   • Place the new filter in the housing, ensuring proper alignment.
6. Reconnect the Fuel Lines:
   • Securely attach the inlet and outlet ports to prevent leaks.
7. Test the System:
   • Start the engine to verify proper fuel flow and check for leaks.

Benefits of a Properly Functioning Fuel Filter Sub-Assembly

1. Improved Engine Performance:
   • Ensures a steady supply of clean fuel for efficient combustion.
2. Enhanced Fuel Efficiency:
   • Promotes optimal air-to-fuel ratios, maximizing mileage.
3. Prolonged Engine Life:
   • Reduces wear on fuel injectors and internal components.
4. Lower Maintenance Costs:
   • Prevents costly repairs caused by contaminated fuel.
5. Reduced Emissions:
   • Cleaner combustion leads to fewer pollutants being emitted.

Common Issues with Fuel Filter Sub-Assemblies

1. Clogged Filter:
   • Accumulated debris restricts fuel flow, reducing engine efficiency.
2. Leaks:
   • Damaged seals or connections may cause fuel leaks, posing safety risks.
3. Incorrect Installation:
   • Improper fitment can lead to unfiltered fuel entering the engine.
4. Water Contamination (Diesel):
   • Failing to drain water can cause corrosion and damage to the fuel system.

Tips for Choosing a Fuel Filter Sub-Assembly

1. Compatibility:
   • Ensure the filter matches your vehicle’s make, model, and engine specifications.
2. Quality:
   • Opt for filters from reputable brands to guarantee durability and performance.
3. Type of Fuel:
   • Choose filters designed specifically for gasoline or diesel engines.
4. Installation Ease:
   • Look for filters that are easy to install, especially if you prefer DIY maintenance.

FAQs

1. Can a dirty fuel filter damage my engine?
   • Yes, unfiltered contaminants can cause severe engine damage over time.
2. How do I know if my fuel filter needs replacing?
   • Look for signs such as poor performance, frequent stalling, or difficulty starting the engine.
3. Is it safe to drive with a clogged fuel filter?
   • While it might be possible, it’s not advisable as it can lead to engine damage.
4. Are aftermarket fuel filters reliable?
   • High-quality aftermarket filters can be as reliable as OEM parts if sourced from trusted brands.

Conclusion

The fuel filter sub-assembly is a vital part of the fuel system, ensuring the engine receives clean, contaminant-free fuel. Regular maintenance, timely replacements, and using high-quality components can help keep your vehicle running efficiently and reliably. Whether you drive a gasoline-powered car or a diesel engine vehicle, investing in a quality fuel filter sub-assembly is crucial for preserving engine health and performance over the long haul.
