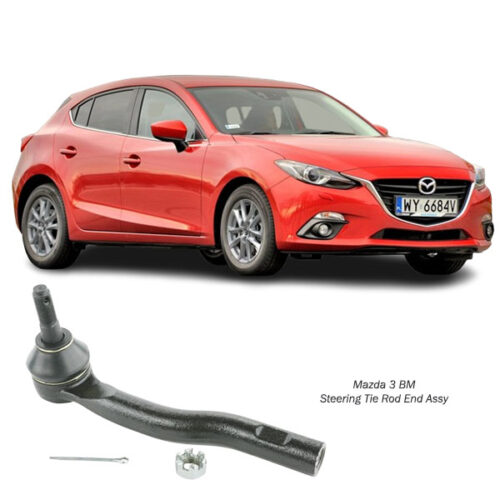

Mazda 3 BM Steering Tie Rod End R/L 0521-GJRH

Get Mazda 3 BM Steering Tie Rod End R/L 0521-GJRH in Kenya

The steering tie rod end, a crucial component of a vehicle’s steering system, connects the steering rack to the steering knuckle. It facilitates smooth and precise steering while accommodating suspension movement. This guide covers the design, functionality, maintenance, and replacement of steering tie rod ends for both right (R) and left (L) sides, ensuring a comprehensive understanding of this critical component.

What is a Steering Tie Rod End?

A steering tie rod end is the outermost part of the tie rod assembly, which links the steering rack to the wheels via the steering knuckle. Its primary role is to transfer the steering input from the rack-and-pinion system or recirculating ball mechanism to the wheels, ensuring directional control and alignment.

The designations R (right) and L (left) correspond to their respective installation sides on the vehicle, each essential for balanced and effective steering operation.

Components of a Steering Tie Rod End

1. Ball Joint
   • A spherical bearing allowing multi-directional movement and ensuring flexibility during suspension articulation.
2. Stud
   • A threaded shaft that connects to the steering knuckle, facilitating alignment and secure attachment.
3. Housing
   • The robust metallic shell that encases the ball joint for durability.
4. Dust Boot
   • A protective cover, often made of rubber, that seals the joint to prevent contaminants like dirt and moisture from entering.
5. Grease Fitting (Optional)
   • Enables periodic lubrication for smoother operation and extended service life.

Functions of Steering Tie Rod Ends

1. Steering Input Transmission
   • Converts the rotational input from the steering wheel into lateral movement of the wheels.
2. Wheel Alignment Maintenance
   • Works in conjunction with other suspension components to maintain proper wheel alignment for stability and even tire wear.
3. Facilitating Suspension Movement
   • The ball joint design allows for vertical wheel movement during suspension compression and rebound while maintaining consistent steering input.

Types of Steering Tie Rod Ends

1. Outer Tie Rod Ends
   • Connect directly to the steering knuckle and are visible when inspecting the suspension system.
2. Inner Tie Rod Ends
   • Positioned closer to the centerline of the vehicle and attach to the steering rack, transmitting steering force to the outer tie rod ends.
3. Adjustable Tie Rod Ends
   • Feature threaded sections for alignment adjustment, enabling precise toe-in or toe-out corrections during alignment services.

Benefits of Steering Tie Rod Ends

1. Precision Steering
   • Ensures accurate and responsive steering control for enhanced driving confidence.
2. Vehicle Stability
   • Maintains proper alignment and handling characteristics, even on uneven road surfaces.
3. Improved Safety
   • Provides consistent and reliable steering performance, reducing the risk of accidents caused by loss of control.
4. Reduced Tire Wear
   • Helps prevent uneven tire wear by maintaining proper alignment, saving costs on frequent replacements.
5. Smooth Ride Quality
   • Damps minor vibrations and shocks from road irregularities for a more comfortable drive.

Signs of a Faulty Steering Tie Rod End

1. Uneven Tire Wear
   • Misaligned wheels due to a worn tie rod end may cause uneven tread patterns.
2. Steering Vibrations
   • Loose or damaged tie rod ends can lead to noticeable vibrations in the steering wheel.
3. Loose or Wandering Steering
   • Increased play or unresponsiveness in the steering wheel indicates tie rod issues.
4. Clunking or Knocking Noises
   • Audible sounds, particularly during turns or over bumps, often point to a failing tie rod end.
5. Pulling to One Side
   • A vehicle pulling left or right may indicate alignment problems caused by a damaged tie rod end.
6. Damaged Dust Boot
   • Visible cracks or tears in the boot expose the ball joint to contaminants, accelerating wear.

Maintenance Tips for Steering Tie Rod Ends

1. Inspect Regularly
   • Include tie rod end checks during routine vehicle inspections, especially if unusual steering behavior occurs.
2. Protect the Dust Boot
   • Ensure the boot is intact to keep contaminants out and prolong component life.
3. Lubricate as Needed
   • If equipped with grease fittings, apply fresh grease periodically to minimize friction and wear.
4. Monitor Alignment
   • Perform wheel alignment after replacing tie rod ends or experiencing significant impacts, such as potholes or curbs.
5. Replace in Pairs
   • For optimal balance and performance, replace both the right and left tie rod ends simultaneously.

Replacing Steering Tie Rod Ends

Tools Required

• Wrenches and socket set
• Tie rod puller or pickle fork
• Torque wrench
• Grease (if applicable)

Replacement Steps

1. Secure the Vehicle
   • Park on a level surface, engage the parking brake, and use jack stands for stability.
2. Remove the Wheel
   • Detach the wheel to gain access to the tie rod end.
3. Loosen the Nut
   • Loosen the tie rod end nut on the steering knuckle but do not remove it completely.
4. Separate the Tie Rod End
   • Use a tie rod puller or pickle fork to disconnect the tie rod end from the knuckle.
5. Unscrew the Tie Rod End
   • Count the number of turns required to unscrew the tie rod end from the inner tie rod for proper reinstallation.
6. Install the New Tie Rod End
   • Screw the new tie rod end onto the inner tie rod using the same number of turns counted earlier.
7. Reconnect and Torque
   • Attach the tie rod end to the steering knuckle and tighten the nut to the manufacturer’s specified torque.
8. Align the Wheels
   • Perform a professional wheel alignment to ensure proper handling and tire wear after replacement.

Advancements in Tie Rod End Technology

1. Durable Materials
   • High-strength alloys and corrosion-resistant coatings enhance longevity.
2. Sealed Ball Joints
   • Many modern tie rod ends are permanently lubricated and sealed, reducing maintenance needs.
3. Performance Designs
   • For high-performance and off-road vehicles, reinforced tie rod ends offer improved durability under extreme conditions.

Common Issues and Solutions

1. Premature Wear
   • Caused by contamination or poor-quality components.
   • Solution: Use high-quality tie rod ends and maintain the dust boots.
2. Alignment Problems
   • Result from improper installation or skipped alignment.
   • Solution: Always align wheels after tie rod end replacement.
3. Corrosion
   • Due to exposure to road salt or moisture.
   • Solution: Opt for corrosion-resistant parts or apply protective coatings.

Conclusion

The steering tie rod end R/L plays a pivotal role in vehicle handling, safety, and ride quality. Proper care, regular inspection, and timely replacement can ensure optimal steering performance and extend the life of other related components. Understanding its functions and maintenance will help drivers maintain a smooth and safe driving experience.
