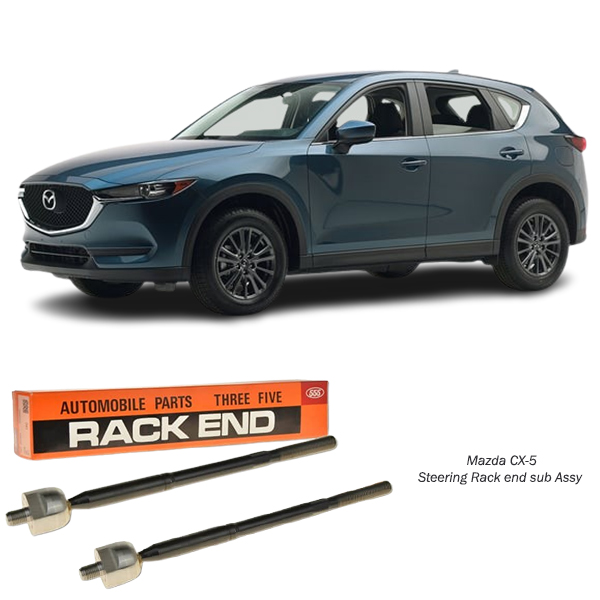

Mazda CX-5 2011-2017 Steering Rack End Sub Assy SR1860

Get Mazda CX-5 2011-2017 Steering Rack End Sub Assy SR1860 in Kenya

The steering rack end sub-assembly, also known as the tie rod assembly, is a critical component of a vehicle’s steering system. It connects the steering rack to the steering knuckle, allowing precise transfer of motion from the steering wheel to the wheels, enabling smooth and controlled driving. This detailed guide explores the structure, functions, benefits, common issues, and maintenance of the steering rack end sub-assembly, emphasizing its importance in vehicle safety and performance.

What is a Steering Rack End Sub-Assembly?

The steering rack end sub-assembly consists of a tie rod, which includes an inner tie rod and an outer tie rod. Together, these parts ensure efficient communication between the steering rack and the front wheels.

Key Components

1. Inner Tie Rod: Connects directly to the steering rack.
2. Outer Tie Rod: Connects the inner tie rod to the steering knuckle.
3. Tie Rod End Joint: A ball-and-socket joint that provides flexibility for the suspension’s movement.
4. Protective Boot: Shields the tie rod from dirt, moisture, and debris, ensuring longevity.

Functions of the Steering Rack End Sub-Assembly

The steering rack end sub-assembly plays a pivotal role in the operation of the steering system. Its functions include:

1. Motion Transfer

• Converts rotational motion from the steering wheel into linear motion, enabling the wheels to turn.

2. Precise Steering Control

• Ensures accurate steering response, providing the driver with control over the vehicle’s direction.

3. Suspension Compensation

• Allows flexibility to accommodate the vertical movement of the suspension system while maintaining steering accuracy.

4. Alignment Support

• Helps maintain correct wheel alignment, ensuring stability and even tire wear.

5. Impact Absorption

• Absorbs minor shocks and vibrations from the road, enhancing driving comfort.

Benefits of a Well-Maintained Steering Rack End Sub-Assembly

1. Enhanced Vehicle Safety

• A responsive steering system prevents loss of control, reducing the risk of accidents.

2. Improved Handling

• Ensures smooth and precise turning, crucial for maneuvering through tight spaces and navigating corners.

3. Even Tire Wear

• Maintains proper wheel alignment, minimizing uneven tire wear and extending tire life.

4. Reduced Vibrations

• Absorbs road vibrations, providing a smoother and quieter ride.

5. Cost Savings

• Proper maintenance prevents damage to other components, such as the steering rack or suspension parts, saving on expensive repairs.

Common Issues with Steering Rack End Sub-Assembly

Despite its robust design, the steering rack end sub-assembly is susceptible to wear and damage due to constant use and exposure to harsh driving conditions.

1. Worn Tie Rod Ends

• Continuous motion and friction cause the tie rod ends to wear out, leading to loose steering and reduced accuracy.

2. Corrosion and Rust

• Exposure to water, salt, and road debris can cause the metal components to corrode, weakening the assembly.

3. Damaged Protective Boots

• Torn or worn boots allow dirt and moisture to enter, accelerating wear and reducing the lifespan of the tie rod.

4. Misalignment

• Damaged tie rods can cause the wheels to misalign, affecting handling and tire wear.

5. Noise and Vibrations

• Worn tie rod ends may produce clunking or knocking noises, especially during turns or driving over bumps.

Signs of a Failing Steering Rack End Sub-Assembly

Recognizing the symptoms of a failing steering rack end sub-assembly can help prevent more significant issues and ensure timely repairs.

1. Uneven Tire Wear

• Abnormal wear patterns on tires indicate misalignment due to a faulty tie rod.

2. Loose Steering

• Increased play in the steering wheel, making it harder to control the vehicle.

3. Vibrations

• Excessive vibrations in the steering wheel, particularly when driving at high speeds.

4. Noises

• Clunking, knocking, or squeaking sounds during steering or suspension movement.

5. Steering Pull

• The vehicle pulling to one side, even when the steering wheel is centered.

Maintenance Tips for Steering Rack End Sub-Assembly

Regular maintenance of the steering rack end sub-assembly ensures optimal performance and extends its lifespan.

1. Routine Inspection

• Inspect the tie rods and protective boots during regular vehicle servicing for signs of wear or damage.

2. Lubrication

• Apply appropriate grease to the tie rod ends to reduce friction and prevent premature wear.

3. Wheel Alignment

• Check and adjust wheel alignment periodically, especially after replacing suspension or steering components.

4. Protect Against Corrosion

• Clean the tie rod and surrounding area to prevent rust and corrosion from road salt and debris.

5. Replace Damaged Boots

• Replace torn or worn protective boots promptly to prevent contamination of the tie rod ends.

Replacement of Steering Rack End Sub-Assembly

When the steering rack end sub-assembly shows signs of failure, timely replacement is essential to maintain safety and performance.

1. Tools and Equipment

• Tie rod end puller
• Wrenches and socket set
• Torque wrench
• Replacement tie rod assembly

2. Process Overview

1. Raise the Vehicle: Secure the vehicle on a lift or jack stands and remove the front wheels.
2. Remove the Old Assembly: Disconnect the outer tie rod from the steering knuckle and unthread it from the inner tie rod.
3. Install the New Assembly: Thread the new tie rod into the steering rack and attach the outer tie rod to the steering knuckle.
4. Tighten Connections: Use a torque wrench to tighten all connections to the manufacturer’s specifications.
5. Perform Alignment: Adjust the alignment to ensure proper steering and handling.

Choosing the Right Steering Rack End Sub-Assembly

Selecting a high-quality replacement is vital for optimal performance and durability. Consider the following factors:

1. Compatibility

• Ensure the assembly matches your vehicle’s make and model.

2. Material Quality

• Opt for components made from durable materials resistant to corrosion and wear.

3. Manufacturer Reputation

• Choose reputable brands like MOOG, TRW, or Lemforder for reliable products.

4. Warranty

• Look for parts with a warranty to guarantee quality and peace of mind.

5. Driving Conditions

• For vehicles used in off-road or extreme conditions, consider heavy-duty tie rods.

Importance of Steering Rack End Sub-Assembly Maintenance

Proper maintenance of the steering rack end sub-assembly is critical for:

1. Safety

• Ensures precise steering and prevents accidents caused by sudden component failure.

2. Cost Efficiency

• Prevents damage to other steering and suspension components, saving on repair costs.

3. Longevity

• Regular care extends the lifespan of the tie rod assembly and related parts.

4. Driving Comfort

• Maintains smooth and responsive steering for an enjoyable driving experience.

Conclusion

The steering rack end sub-assembly is an indispensable part of a vehicle’s steering system, ensuring precise control, stability, and safety. Understanding its functions, benefits, and maintenance requirements allows drivers to keep this component in excellent condition, enhancing overall vehicle performance.

Regular inspections, timely replacements, and the use of high-quality components are essential to prevent steering issues and ensure a safe and comfortable driving experience. By prioritizing the care of the steering rack end sub-assembly, drivers can maintain their vehicle’s reliability and enjoy the benefits of smooth, responsive steering.
