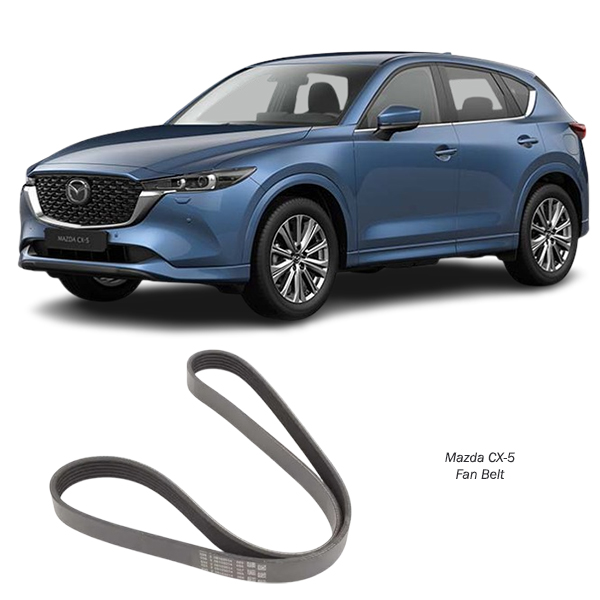

Mazda CX-5 Fan Belt 6pk1180

Get Mazda CX-5 Fan Belt 6pk1180 in Kenya

The fan belt, also known as the serpentine belt or drive belt, is a critical component in a vehicle’s engine system. The 6PK1180 fan belt is a specific type of belt, commonly used in modern vehicles, identified by its dimensions and ribbing design. This guide provides a comprehensive understanding of the fan belt, focusing on the 6PK1180 variant, including its functions, construction, benefits, maintenance, and common issues.

What is a Fan Belt?

A fan belt is a continuous loop of durable rubber or synthetic material designed to drive multiple engine components. It connects the engine’s crankshaft pulley to other vital systems, such as the alternator, power steering pump, water pump, and air conditioning compressor. The 6PK1180 fan belt is characterized by:

1. 6PK: Refers to a six-ribbed belt, indicating its rib design for increased grip and efficiency.
2. 1180: Denotes the length of the belt in millimeters (1180 mm).

Functions of the Fan Belt

The fan belt performs several essential roles, including:

1. Driving the Alternator
   • Powers the alternator to generate electricity for the battery and electrical systems.
2. Operating the Water Pump
   • Ensures the circulation of coolant through the engine to maintain optimal temperatures.
3. Powering the Air Conditioning System
   • Drives the compressor to facilitate cooling inside the vehicle.
4. Facilitating Power Steering
   • Provides the necessary force to operate the power steering pump, ensuring smooth and easy steering.
5. Running Auxiliary Systems
   • In some vehicles, the belt may also drive additional accessories like the smog pump.

Construction of the 6PK1180 Fan Belt

The 6PK1180 fan belt is engineered for durability and efficiency. Its construction includes:

1. Base Material
   • Typically made from EPDM (ethylene propylene diene monomer) rubber for flexibility, wear resistance, and heat tolerance.
2. Ribbed Design
   • The six ribs provide increased surface contact for optimal grip, reducing slippage and noise.
3. Reinforcement
   • Embedded with high-strength cords (e.g., polyester or aramid) to resist stretching and maintain tension.
4. Wear Indicators
   • Modern belts include indicators that signal when replacement is necessary.
5. Coating
   • A special coating reduces friction, enhances durability, and minimizes noise.

Benefits of the 6PK1180 Fan Belt

1. Efficient Power Transfer
   • Ensures smooth operation of multiple engine components with minimal energy loss.
2. Durability
   • Designed to withstand extreme conditions, including high temperatures and constant tension.
3. Compact Design
   • Replaces the need for multiple belts, simplifying the engine layout and reducing maintenance complexity.
4. Reduced Noise
   • The ribbed design and advanced materials minimize squeaking and vibrations.
5. Enhanced Engine Performance
   • Ensures auxiliary systems operate effectively, contributing to overall engine efficiency.

How the 6PK1180 Fan Belt Works

The fan belt functions as part of the accessory drive system. Here’s how it works:

1. Crankshaft Connection
   • The belt wraps around the crankshaft pulley, which provides rotational force.
2. Driven Components
   • The belt transfers this force to various pulleys connected to components like the alternator, water pump, and air conditioning compressor.
3. Tension Maintenance
   • A tensioner pulley keeps the belt taut, ensuring consistent grip and operation.
4. Continuous Operation
   • As the engine runs, the belt rotates continuously, driving the connected components seamlessly.

Signs of a Faulty Fan Belt

A failing fan belt can lead to various issues. Watch for these warning signs:

1. Squealing Noise
   • A high-pitched squealing sound often indicates a loose or worn-out belt.
2. Visible Cracks or Fraying
   • Physical damage to the belt signals the need for immediate replacement.
3. Loss of Power Steering
   • Difficulty in steering could indicate belt failure affecting the power steering pump.
4. Engine Overheating
   • A non-functioning water pump due to a broken belt can cause the engine to overheat.
5. Battery Warning Light
   • A failing alternator drive due to a damaged belt can trigger the battery warning light.

Maintenance Tips for the Fan Belt

1. Regular Inspections
   • Check the belt for cracks, fraying, or glazing every 10,000–15,000 miles.
2. Monitor Tension
   • Ensure the belt maintains proper tension to prevent slippage or damage.
3. Keep Clean
   • Remove dirt and debris from the belt and pulleys to prevent wear.
4. Replace When Necessary
   • Most belts last 50,000–100,000 miles, but replace sooner if signs of wear are evident.
5. Check the Tensioner
   • A faulty tensioner can cause uneven wear and reduce the belt’s lifespan.

Common Issues with Fan Belts

1. Wear and Tear
   • Prolonged use leads to cracking, glazing, or stretching of the belt.
2. Misalignment
   • Misaligned pulleys can cause uneven wear and reduce the belt’s efficiency.
3. Contamination
   • Oil or coolant leaks can degrade the belt material and reduce its grip.
4. Improper Tension
   • Over-tightened belts can strain components, while loose belts can slip and squeal.
5. Breakage
   • Rare but possible, especially if maintenance is neglected or the belt is old.

Replacing a Fan Belt

Replacing a fan belt is a relatively straightforward process. Here’s how it’s typically done:

1. Locate the Belt Path
   • Refer to the vehicle’s diagram or manual to understand the belt routing.
2. Release Tension
   • Use a wrench or a belt tensioner tool to release tension and remove the old belt.
3. Inspect Components
   • Check pulleys, tensioners, and other components for wear or damage.
4. Install the New Belt
   • Position the new 6PK1180 belt according to the routing diagram.
5. Adjust Tension
   • Ensure the belt is properly tensioned for optimal performance.
6. Test Run
   • Start the engine and observe the belt for proper alignment and noise-free operation.

Benefits of Using the Correct Fan Belt

Using the correct fan belt, such as the 6PK1180, ensures:

1. Perfect Fit
   • Designed to match specific vehicle requirements, ensuring compatibility.
2. Optimal Performance
   • Transfers power efficiently to all engine components.
3. Reduced Wear and Tear
   • Minimizes stress on pulleys and accessories.
4. Longer Lifespan
   • High-quality materials provide durability under extreme conditions.
5. Improved Safety
   • Prevents sudden failures that could lead to breakdowns.

Conclusion

The 6PK1180 fan belt is an essential component in a vehicle’s engine system, responsible for driving multiple accessories with precision and efficiency. Regular maintenance, timely replacement, and proper installation are crucial to ensuring the belt performs optimally. By understanding its functions, benefits, and maintenance requirements, you can prolong the life of the fan belt and the components it drives, contributing to a smoother, safer, and more reliable driving experience
