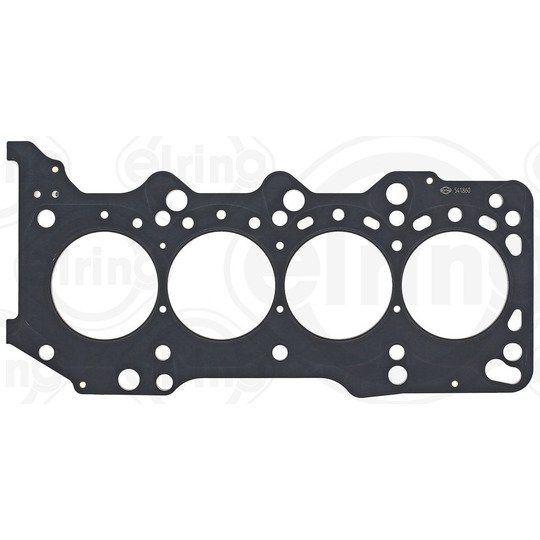

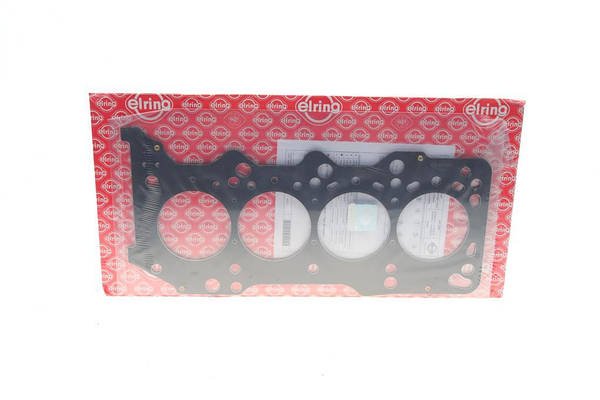

SH01-10-271 Cylinder Head Gasket Mazda CX-5 KE ,KF, GH Elring 541.860

Get Mazda CX-5 KE ,KF, GH Cylinder Head Gasket SH01-10-271E

The cylinder head gasket is a critical component in an internal combustion engine, sealing the combustion chamber and maintaining the separation between the engine block and cylinder head. Multi-layer steel (MLS) gaskets represent a significant advancement in gasket technology, offering enhanced durability, sealing capability, and reliability. This article explores the structure, function, benefits, and applications of MLS cylinder head gaskets in detail.

Structure and Composition

Multi-layer steel (MLS) cylinder head gaskets are engineered using multiple layers of steel sheets coated with a thin layer of elastomer, typically made from materials such as Viton or rubber. The number of layers can vary depending on the specific application and engine requirements, but MLS gaskets typically consist of three to five layers.

1. Steel Layers: The core of an MLS gasket is its multiple steel layers. These layers are typically embossed or laser-cut to create precise sealing beads and combustion fire rings. The steel material provides robustness and strength to withstand high temperatures and pressures within the engine.
2. Elastomer Coating: Each steel layer is coated with a thin layer of elastomer on both sides. This elastomer coating serves multiple purposes:
   • It enhances the gasket’s ability to conform to irregularities and imperfections on the sealing surfaces of the engine block and cylinder head.
   • It provides elasticity and resilience, allowing the gasket to maintain a reliable seal even under varying operating conditions and thermal cycles.
   • It acts as a barrier to prevent leaks of engine oil, coolant, or combustion gases between the cylinder head and engine block.
3. Sealing Beads and Fire Rings: MLS gaskets feature strategically placed sealing beads and combustion fire rings. These features are designed to:
   • Enhance the gasket’s sealing capability under high combustion pressures and temperatures.
   • Prevent leakage of combustion gases, which is crucial for maintaining engine efficiency and emissions compliance.

Function and Importance

The primary function of an MLS cylinder head gasket is to provide a reliable seal between the engine block and cylinder head, sealing off the combustion chamber, coolant passages, and oil galleries. Here’s how MLS gaskets achieve this:

1. Sealing Under Pressure: MLS gaskets are specifically designed to withstand high combustion pressures and temperatures generated within the engine during operation. The multiple layers of steel provide structural integrity, while the elastomer coating ensures flexibility and resilience to maintain a tight seal.
2. Resisting Leaks: The elastomer coating on MLS gaskets effectively seals off oil and coolant passages, preventing leaks that could lead to loss of lubrication, coolant loss, or contamination of engine fluids.
3. Conforming to Surface Imperfections: Engine surfaces, such as those on the cylinder head and engine block, may have minor imperfections or irregularities. MLS gaskets are designed to conform to these surfaces, creating a uniform sealing interface that minimizes the risk of leaks.
4. Enhancing Engine Performance: By maintaining a reliable seal, MLS gaskets contribute to optimal engine performance. They ensure efficient combustion, proper cooling of engine components, and consistent lubrication, which are essential for engine longevity and reliability.

Benefits of MLS Cylinder Head Gaskets

MLS gaskets offer several advantages over traditional gasket materials, such as composite or asbestos:

1. Durability: The steel layers in MLS gaskets provide exceptional durability and resistance to deformation, ensuring long-term reliability even under extreme conditions.
2. Reliability: MLS gaskets are known for their reliability in sealing critical engine components. They reduce the likelihood of blown gaskets and associated engine problems.
3. High-Temperature Resistance: MLS gaskets can withstand higher temperatures compared to other gasket materials, making them suitable for high-performance engines and turbocharged applications.
4. Improved Sealing Performance: The multi-layer construction and elastomer coating of MLS gaskets provide superior sealing performance, reducing the risk of leaks and maintaining engine efficiency.
5. Reduced Maintenance: Due to their robust construction and reliable sealing properties, MLS gaskets generally require less frequent replacement and maintenance compared to other gasket types.

Applications

MLS cylinder head gaskets are commonly used in modern engines, particularly those with high-performance requirements, turbocharged engines, and engines designed for heavy-duty applications. They are favored in automotive, marine, and industrial engines where reliability and durability are critical.
