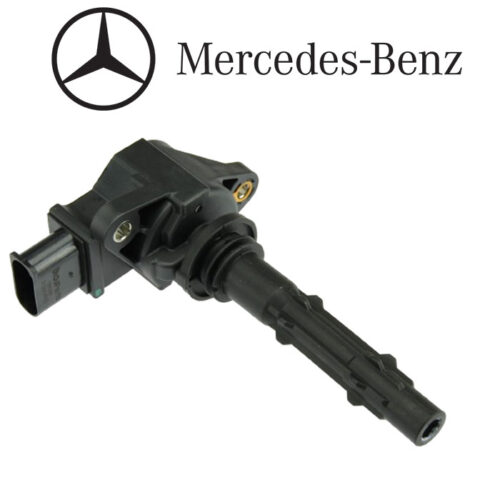

Mercedes Benz C280 Ignition Coil 2729060060

Get Mercedes Benz C280 Ignition Coil 2729060060 in Kenya

The ignition coil is a crucial component in an internal combustion engine’s ignition system. It converts low-voltage electricity from the vehicle’s battery into the high voltage necessary to create a spark at the spark plug, which ignites the air-fuel mixture in the engine’s cylinders.

A failing ignition coil can lead to engine misfires, poor fuel efficiency, rough idling, and even complete engine failure. Understanding its function, different types, and how to maintain it can help vehicle owners ensure optimal engine performance.

1. What is an Ignition Coil?

An ignition coil is an electrical transformer that steps up the 12-volt battery power to as high as 30,000-50,000 volts (or more), which is required to generate a strong spark in the combustion chamber.

1.1 How It Works

The ignition coil consists of three main components:

• Primary winding (low-voltage coil)
• Secondary winding (high-voltage coil)
• Iron core (magnetic core to amplify the voltage)

Here’s a step-by-step explanation of its operation:

1. Voltage Supply – The vehicle’s battery (12V) sends power to the ignition coil.
2. Magnetic Field Generation – The primary winding inside the coil builds a magnetic field when current flows through it.
3. Voltage Induction – When the current is suddenly interrupted (via the ignition control module or distributor), the magnetic field collapses.
4. Voltage Transformation – This collapse induces a high voltage (30,000V to 50,000V or more) in the secondary winding.
5. Spark Generation – This high voltage is sent to the spark plug via the distributor or ignition coil pack, creating a spark that ignites the air-fuel mixture in the cylinder.

This process happens thousands of times per minute while the engine is running.

2. Types of Ignition Coils

There are different types of ignition coils used in various engine configurations.

2.1 Canister-Type Ignition Coil (Conventional Coil)

• Used in older vehicles with distributor-based ignition systems.
• Contains oil or epoxy for cooling.
• Works with a single high-voltage output, distributing sparks to all cylinders.

2.2 Coil-on-Plug (COP) Ignition Coil

• Each spark plug has its own ignition coil mounted directly on top.
• Eliminates the need for spark plug wires.
• Improves spark efficiency, fuel economy, and emissions control.
• Found in modern direct ignition systems (DIS).

2.3 Coil Pack Ignition System

• Used in distributor-less ignition systems (DIS).
• Contains multiple coils, each serving a pair of spark plugs.
• Controlled electronically by the Engine Control Unit (ECU).

2.4 Distributor Coil Ignition System

• A single coil generates high voltage and distributes it via a distributor rotor.
• Found in older vehicles with mechanical ignition systems.
• Less efficient compared to modern COP or coil pack systems.

2.5 Pencil Coil (Slim Coil-on-Plug)

• A compact version of the COP ignition coil, used in some modern engines.
• Plugs directly into the spark plug well for better energy transfer.

3. Functions of an Ignition Coil

3.1 Converts Low Voltage to High Voltage

• The primary function of the ignition coil is to step up the voltage from 12V to over 30,000-50,000V to generate a spark.

3.2 Ensures Efficient Combustion

• A strong, consistent spark ensures complete fuel combustion, leading to better engine performance and fuel economy.

3.3 Synchronizes with Engine Timing

• The ignition coil is precisely timed with the crankshaft and camshaft, ensuring the spark occurs at the right moment for optimal power output.

3.4 Reduces Emissions

• Proper combustion minimizes unburnt fuel, reducing harmful emissions such as carbon monoxide (CO) and hydrocarbons (HCs).

4. Symptoms of a Failing Ignition Coil

A malfunctioning ignition coil can lead to various engine problems. Some common symptoms include:

4.1 Engine Misfires

• A weak or inconsistent spark leads to misfiring cylinders.
• The engine may hesitate, jerk, or struggle to accelerate.

4.2 Rough Idling and Stalling

• A failing coil disrupts the combustion cycle, causing the engine to shake or vibrate excessively when idling.
• In severe cases, the engine may stall unexpectedly.

4.3 Poor Fuel Economy

• Incomplete combustion forces the engine to use more fuel to compensate for the loss of power.

4.4 Difficulty Starting the Engine

• A bad ignition coil may prevent the engine from starting, especially in cold weather.

4.5 Check Engine Light (CEL) Activation

• The ECU detects irregular combustion patterns and triggers a fault code related to ignition coil performance.
• Scanning the vehicle with an OBD-II scanner can confirm if the ignition coil is faulty.

4.6 Reduced Engine Power

• A weak spark results in lower combustion efficiency, reducing horsepower and torque.

5. Ignition Coil Maintenance and Replacement

5.1 Regular Inspection

• Check for cracks, corrosion, or carbon tracking on the coil’s housing.
• Inspect ignition coil connectors and wiring for damage or loose connections.

5.2 Spark Plug Condition

• A faulty spark plug increases ignition coil workload, leading to premature failure.
• Replace spark plugs at recommended intervals (usually every 30,000-60,000 miles).

5.3 Using the Right Ignition Coil

• Always use an OEM (Original Equipment Manufacturer) or high-quality aftermarket coil that matches the vehicle’s specifications.

5.4 Preventing Overheating

• Avoid overheating the engine, as excessive heat can damage ignition coil windings.

6. Testing an Ignition Coil

6.1 Resistance Test (Multimeter Method)

1. Set a digital multimeter to the ohms (Ω) setting.
2. Measure resistance:
   • Primary winding resistance: Typically 0.4 to 2 ohms.
   • Secondary winding resistance: Typically 6,000 to 10,000 ohms.
3. If the values are outside the recommended range, the coil is faulty.

6.2 Spark Test

1. Remove a spark plug wire and insert a spark tester.
2. Crank the engine and observe if a strong blue spark is present.
3. A weak or no spark indicates a failing ignition coil.

6.3 OBD-II Scanner Test

• Scan the engine control unit (ECU) for codes like P0301-P0312 (misfire codes) or P0350-P0358 (ignition coil faults).

7. Conclusion

The ignition coil is essential for efficient engine operation, ensuring proper combustion, fuel efficiency, and performance. Understanding its function, failure symptoms, and maintenance can help prevent breakdowns and costly repairs.

Regular inspection, replacing faulty spark plugs, and using high-quality ignition coils will keep your engine running smoothly. 🚗🔧
