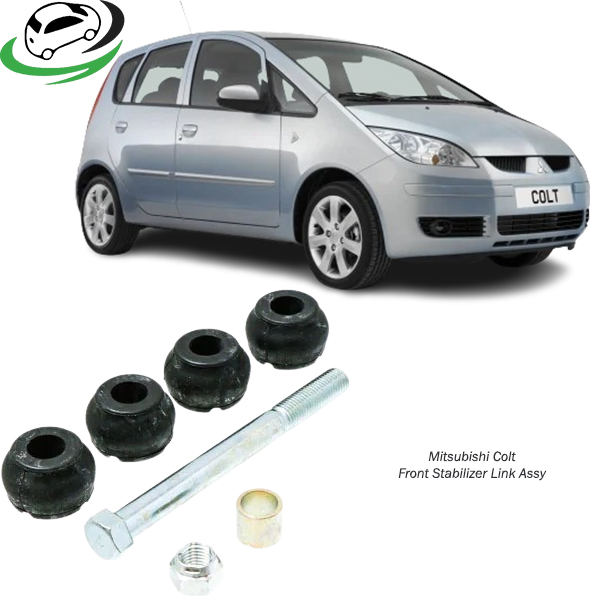

Mitsubishi Colt Front Stabilizer Link Assy 4056A050

Get Mitsubishi Colt Front Stabilizer Link Assy 4056A050 in Kenya

The front stabilizer link assembly, also known as the sway bar link or anti-roll bar link, is a key component in the suspension system of many vehicles. This component works to provide balance, improve handling, and reduce body roll while driving, especially during turns. In this guide, we’ll delve into the function, construction, types, signs of wear, and maintenance of front stabilizer link assemblies, covering why they’re crucial for a vehicle’s performance and stability.

1. Understanding the Function of the Front Stabilizer Link Assembly

The primary purpose of the front stabilizer link assembly is to connect the front stabilizer bar (or sway bar) to the suspension system, usually the control arms. The stabilizer bar itself is a metal rod that spans the width of the vehicle, connecting the left and right suspension systems. The role of this bar is to minimize body roll, the tilting or swaying motion of a car’s body during cornering.

When a vehicle takes a turn, centrifugal force shifts the vehicle’s weight to the outside, causing the suspension on that side to compress and the inside suspension to lift. The front stabilizer link assembly helps counteract this by transferring some of the force from the compressed side to the lifted side, balancing the suspension on both sides. This process reduces body roll and increases stability, resulting in a safer, more controlled driving experience.

2. Benefits of the Front Stabilizer Link Assembly

The front stabilizer link assembly provides numerous benefits to the vehicle’s handling and overall driving experience:

• Reduced Body Roll: By stabilizing the vehicle during turns, the stabilizer link assembly prevents excessive body lean, enhancing driver and passenger comfort.
• Enhanced Stability and Control: The assembly maintains balance between the left and right sides of the vehicle, offering more consistent traction and stability.
• Improved Cornering Performance: With less body roll, the vehicle can take turns more smoothly, allowing the tires to maintain better contact with the road for optimal grip.
• Increased Safety: By reducing the likelihood of the vehicle tipping or swaying excessively, the stabilizer link assembly plays an important role in accident prevention, particularly when making sharp turns or sudden maneuvers.

3. Construction of the Front Stabilizer Link Assembly

The front stabilizer link assembly typically consists of the following components:

• Link Rod: The link rod is a solid or hollow rod that connects the stabilizer bar to the suspension. The material is usually metal, such as steel, though it may be coated or made from composite materials to prevent corrosion.
• Bushings: Bushings are rubber or polyurethane components that cushion the joints between the link and the stabilizer bar or control arm. They reduce vibration, absorb shock, and prevent metal-to-metal contact, thereby prolonging the life of the assembly and improving ride comfort.
• Ball Joints: Stabilizer links often use ball joints at one or both ends to allow for multi-directional movement. These joints help accommodate the suspension’s movement while maintaining a stable connection to the stabilizer bar.

The construction of a stabilizer link assembly may vary between vehicles, with some having a simple design with two bushings, while others have ball joints on both ends for greater flexibility and durability.

4. Types of Front Stabilizer Link Assemblies

There are several types of stabilizer link assemblies, which differ in design and material based on the vehicle’s make, model, and suspension system requirements:

• Fixed Length Stabilizer Links: These are standard link assemblies with a fixed length, designed for specific vehicles. They are simple in design and easy to replace.
• Adjustable Stabilizer Links: Adjustable links allow for a variable length, making them ideal for custom suspension setups or vehicles with adjustable ride height. They enable fine-tuning of the suspension to achieve desired handling characteristics.
• Heavy-Duty Stabilizer Links: Heavy-duty stabilizer links are constructed from stronger materials, such as reinforced steel or hardened aluminum. They are designed for off-road or high-performance applications where the suspension endures more stress than in regular driving.
• Ball Jointed Stabilizer Links: These links have ball joints on both ends, allowing for greater movement and reducing the stress on the link during suspension articulation. Ball jointed links are common in vehicles with independent suspension systems, where flexibility is crucial.

5. Signs of Wear and Common Issues with Front Stabilizer Link Assemblies

Over time, front stabilizer link assemblies experience wear and may develop issues due to constant exposure to road conditions, temperature fluctuations, and suspension movement. Some common signs of wear and symptoms of a faulty stabilizer link assembly include:

• Clunking or Knocking Sounds: One of the most common signs of a failing stabilizer link assembly is a clunking or knocking noise, especially when driving over bumps or making turns. This noise indicates that the link or its bushings may be worn out, causing metal parts to collide.
• Poor Handling and Increased Body Roll: If the stabilizer link assembly is worn, you may notice more body roll, especially during turns. The vehicle might feel unstable or have reduced cornering performance.
• Loose or Wobbly Steering: A worn stabilizer link can impact the vehicle’s steering, making it feel loose or less responsive. This occurs because the connection between the stabilizer bar and suspension becomes compromised, reducing control.
• Uneven Tire Wear: Faulty stabilizer link assemblies can affect wheel alignment and suspension geometry, leading to uneven tire wear. This uneven wear can reduce tire lifespan and compromise traction.
• Visible Damage or Wear on the Link: A visual inspection may reveal visible damage, rust, or wear on the link rod, bushings, or ball joints. Cracked or deteriorated bushings, in particular, indicate a need for replacement.

6. Maintenance Tips for Front Stabilizer Link Assemblies

Proper maintenance of the front stabilizer link assembly is essential to extend its lifespan and maintain optimal handling. Here are some tips to keep the stabilizer link assembly in good condition:

• Regular Inspections: Regularly inspect the stabilizer link assembly for wear, especially if you hear unusual sounds or notice changes in handling. Catching issues early can prevent further damage to the suspension.
• Replace Worn Bushings: If the bushings are cracked or deteriorated, replace them promptly. Quality bushings reduce vibrations and prevent premature wear on the link and surrounding components.
• Check Alignment and Suspension: Misaligned wheels or an uneven suspension can put extra stress on the stabilizer link assembly, leading to faster wear. Regularly check and adjust the wheel alignment and suspension settings.
• Lubrication of Ball Joints: For assemblies with ball joints, periodic lubrication can prevent wear and reduce friction, extending the life of the joints and maintaining smooth movement.
• Drive Cautiously on Rough Terrain: Driving over rough terrain or speed bumps at high speeds can put undue stress on the stabilizer link assembly. Driving cautiously on uneven surfaces can reduce wear and prevent damage.

7. Replacement Considerations for Front Stabilizer Link Assemblies

Replacing a front stabilizer link assembly becomes necessary when it shows signs of wear or damage. Here are some considerations for replacement:

• OEM vs. Aftermarket: Original Equipment Manufacturer (OEM) parts are designed specifically for your vehicle and generally provide the best fit and reliability. Aftermarket parts, however, can be more affordable and may offer enhancements, such as heavy-duty designs, for certain applications.
• Material and Quality: Look for quality materials like stainless steel or treated alloys that resist rust and corrosion. Bushings made of polyurethane are often more durable than rubber but can lead to a stiffer ride.
• Consider Both Sides: It’s often recommended to replace stabilizer links in pairs (both front links) to maintain even performance and prevent imbalances in handling.
• Professional Installation: Proper installation is critical for optimal performance and safety. Incorrectly installed links can compromise the vehicle’s stability and handling.

8. Conclusion

The front stabilizer link assembly is a small but vital component of a vehicle’s suspension system, crucial for maintaining balance, reducing body roll, and ensuring stable handling. Whether driving on highways, navigating city streets, or maneuvering through winding roads, the stabilizer link assembly works behind the scenes to provide a smoother, safer, and more controlled driving experience.

Regular inspections, timely maintenance, and replacing worn parts are key to keeping the front stabilizer link assembly in good condition. By understanding its function, recognizing the signs of wear, and following best maintenance practices, drivers can ensure a comfortable ride and optimal handling performance. In the broader context of vehicle safety and performance, the stabilizer link assembly remains an indispensable component that enhances the driver’s confidence and the vehicle’s overall roadworthiness.
