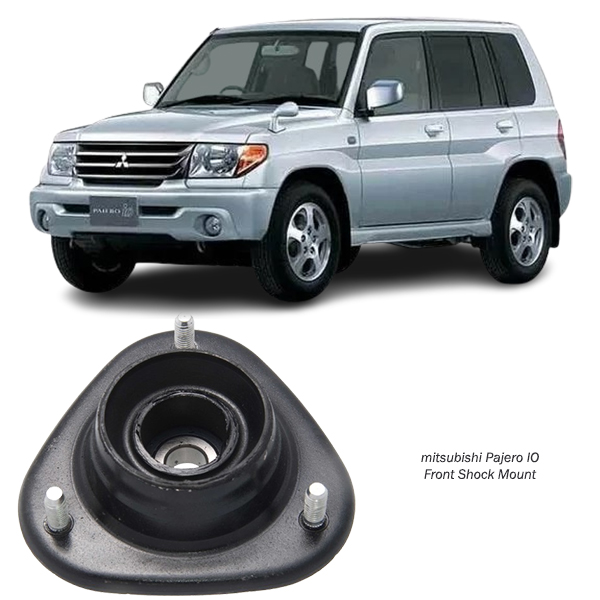

Mitsubishi Pajero IO Front Shock Absorber Mount MSS-PININ

The front shock absorber mount is a vital component of a vehicle’s suspension system. It plays a crucial role in providing a smooth and controlled ride by supporting the shock absorber and ensuring proper alignment with the vehicle’s chassis. This comprehensive guide delves into the functions, construction, benefits, maintenance, and troubleshooting of front shock absorber mounts.

What is a Front Shock Absorber Mount?

The front shock absorber mount, also known as a strut mount, serves as the connection point between the shock absorber (or strut) and the vehicle’s chassis. It is designed to perform two primary functions:

1. Structural Support:
   • Provides a secure attachment point for the shock absorber, ensuring it remains firmly in place during operation.
2. Vibration and Noise Dampening:
   • Absorbs vibrations and noise from the road, preventing them from transferring to the vehicle’s cabin.

In many modern vehicles, front shock absorber mounts also house a bearing assembly that allows the suspension to pivot during steering.

Functions of the Front Shock Absorber Mount

1. Connecting the Suspension to the Chassis
   • The mount securely fastens the shock absorber to the vehicle’s chassis, ensuring stability.
2. Damping Vibrations and Noise
   • With rubber or polyurethane components, the mount minimizes the impact of road irregularities on the cabin.
3. Steering Support (in Strut-Based Suspensions)
   • In MacPherson strut systems, the mount often includes a bearing that enables the strut to rotate with the steering wheel.
4. Load Distribution
   • Distributes the weight of the vehicle and the stress from impacts evenly across the suspension system.
5. Enhancing Ride Comfort and Safety
   • Works in tandem with the shock absorber to maintain a smooth ride and improve handling.

Construction of a Front Shock Absorber Mount

The design of a front shock absorber mount is engineered for durability, functionality, and adaptability. Its key components include:

1. Base Plate
   • Typically made of metal, this provides a rigid foundation for attaching the mount to the chassis.
2. Rubber Insulator
   • Encases the mount to absorb vibrations and dampen noise. High-quality mounts use durable rubber or polyurethane for better longevity and performance.
3. Bearing Assembly (in Some Designs)
   • A built-in bearing allows the suspension strut to pivot with the steering mechanism, especially in MacPherson strut setups.
4. Mounting Hardware
   • Includes bolts, nuts, and washers to secure the mount to the chassis and the shock absorber.
5. Protective Cover
   • Shields the internal components from dirt, moisture, and debris, prolonging the lifespan of the mount.

Types of Front Shock Absorber Mounts

1. Rubber Mounts
   • Common in older vehicles, these are simple yet effective for absorbing vibrations.
2. Hydraulic Mounts
   • Incorporate a fluid-filled chamber to enhance vibration damping, often found in luxury vehicles.
3. Bearing-Integrated Mounts
   • Include a bearing assembly for pivoting in strut-based suspensions.
4. Heavy-Duty Mounts
   • Designed for off-road or performance vehicles, offering enhanced durability.

Benefits of a Front Shock Absorber Mount

1. Enhanced Ride Comfort
   • Absorbs shocks and vibrations, ensuring a smoother driving experience.
2. Improved Noise Isolation
   • Reduces road noise and vibrations transmitted to the cabin.
3. Better Handling and Stability
   • Maintains the alignment of the suspension system, contributing to precise handling.
4. Longevity of Suspension Components
   • Reduces stress on the shock absorber and other suspension parts by evenly distributing loads.
5. Safety
   • Ensures that the shock absorber functions correctly, maintaining proper contact between the tires and the road.

How the Front Shock Absorber Mount Works

1. Shock Absorption
   • The mount holds the top of the shock absorber, allowing it to compress and rebound as the vehicle travels over bumps.
2. Noise and Vibration Isolation
   • The rubber or polyurethane layer absorbs energy from road impacts, preventing it from transferring to the cabin.
3. Steering Support (in Strut Mounts)
   • The bearing assembly within the mount allows the strut to rotate smoothly when the steering wheel is turned.
4. Load Bearing
   • Supports the weight of the vehicle and transmits forces from the road to the suspension system.

Signs of a Failing Front Shock Absorber Mount

A damaged or worn-out shock absorber mount can negatively impact ride quality and vehicle performance. Common symptoms include:

1. Increased Noise
   • Clunking or knocking sounds, especially when driving over bumps or turning.
2. Excessive Vibration
   • More vibrations felt in the cabin due to reduced damping efficiency.
3. Poor Handling
   • Decreased stability, especially during steering or cornering.
4. Uneven Tire Wear
   • Misalignment caused by a faulty mount can lead to uneven tire wear.
5. Steering Issues
   • Stiff or noisy steering, often linked to a damaged bearing in the mount.

Maintenance Tips for Front Shock Absorber Mounts

1. Regular Inspections
   • Inspect mounts during routine suspension or tire maintenance for cracks, wear, or damage.
2. Replace Worn-Out Components
   • Replace mounts at the first sign of wear to prevent damage to other suspension components.
3. Use High-Quality Parts
   • Always choose OEM or high-quality aftermarket mounts for better performance and durability.
4. Check Alignment
   • Realign the suspension system after replacing mounts to ensure proper handling.
5. Protect Against Contaminants
   • Clean the mounts regularly and ensure the protective cover is intact to prevent dirt and moisture damage.

Replacing a Front Shock Absorber Mount

Replacing a front shock absorber mount requires specialized tools and expertise. Here’s an overview of the process:

1. Prepare the Vehicle
   • Secure the vehicle on a lift or jack stands and remove the front wheels for access.
2. Remove the Strut Assembly
   • Disconnect the strut assembly from the vehicle’s chassis and suspension system.
3. Disassemble the Strut
   • Use a spring compressor to safely remove the coil spring and access the mount.
4. Inspect Components
   • Check the shock absorber, spring, and other suspension components for wear or damage.
5. Install the New Mount
   • Position the new mount on the strut assembly, ensuring proper alignment.
6. Reassemble and Reinstall
   • Reassemble the strut and reinstall it in the vehicle. Tighten all bolts to manufacturer specifications.
7. Test Drive
   • Test the vehicle to ensure the suspension system is functioning correctly.

Common Issues with Front Shock Absorber Mounts

1. Premature Wear
   • Caused by poor-quality materials or harsh driving conditions.
2. Bearing Failure
   • In strut mounts, the bearing can seize or wear out, leading to stiff or noisy steering.
3. Rubber Deterioration
   • Exposure to heat, moisture, and contaminants can degrade the rubber insulator.
4. Misalignment
   • A misaligned mount can cause uneven stress on suspension components and poor handling.
5. Corrosion
   • Metal components of the mount may corrode over time if not properly protected.

Conclusion

The front shock absorber mount is a small but indispensable part of a vehicle’s suspension system. It ensures a smooth and comfortable ride, supports steering functionality, and contributes to overall vehicle safety and stability. Regular maintenance and timely replacement are essential to prevent ride quality issues and maintain optimal suspension performance. By understanding its functions, construction, and importance, drivers can appreciate how this crucial component enhances their driving experience.
