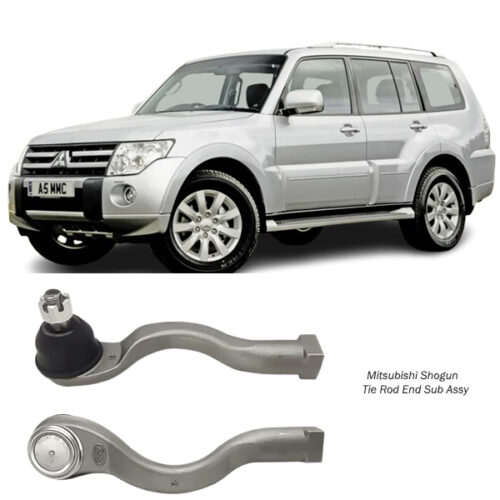

Mitsubishi Shogun Tie Rod End Assy Set R/L SE7841

Get Mitsubishi Shogun Tie Rod End Assy Set R/L SE7841 in Kenya

The tie rod end assembly set is a crucial component of a vehicle’s steering system, directly impacting steering precision, safety, and overall handling. This assembly links the steering rack to the steering knuckle, ensuring smooth transmission of motion and control while allowing the front wheels to pivot during steering.

This detailed guide covers the functions, components, types, benefits, maintenance, signs of failure, and replacement procedures for the tie rod end assembly set.

1. What is a Tie Rod End Assembly Set?

A tie rod end assembly set comprises the tie rod ends and their associated hardware, which work together to enable accurate steering control. It connects the steering rack to the wheels, translating the driver’s input from the steering wheel into directional movement.

Components of a Tie Rod End Assembly Set

• Inner Tie Rod: Connects to the steering rack and transmits motion to the outer tie rod.
• Outer Tie Rod: Links to the steering knuckle and directly influences wheel alignment.
• Ball Joint: A pivoting mechanism that allows smooth movement and flexibility.
• Adjusting Sleeve (in some designs): Used to fine-tune wheel alignment and adjust the tie rod length.

2. Functions of the Tie Rod End Assembly Set

a) Steering Control

• Facilitates the movement of wheels in response to the steering input, ensuring precision and control.

b) Wheel Alignment

• Maintains proper toe alignment, preventing uneven tire wear and improving stability.

c) Suspension Integration

• Works in harmony with suspension components to absorb shocks and maintain road contact.

d) Turning Efficiency

• Allows the wheels to pivot smoothly, ensuring efficient cornering and turning.

3. Types of Tie Rod Ends

a) Standard Tie Rod Ends

• Found in most vehicles, consisting of an inner and outer tie rod connected by a ball joint.

b) Rack-and-Pinion Tie Rod Ends

• Used in vehicles with rack-and-pinion steering systems, offering compact and efficient motion transfer.

c) Articulated Tie Rod Ends

• Designed for heavy-duty and off-road vehicles, providing enhanced durability and flexibility.

d) Adjustable Tie Rod Ends

• Allow fine-tuning of alignment settings, often used in high-performance or modified vehicles.

4. How the Tie Rod End Assembly Set Works

1. Steering Input: When the driver turns the steering wheel, the motion is transferred to the steering rack.
2. Motion Transmission: The inner tie rod pushes or pulls the outer tie rod.
3. Wheel Movement: The outer tie rod rotates the steering knuckle, causing the wheels to pivot.
4. Flexibility: The ball joint in the tie rod end allows multi-directional movement, accommodating changes in road conditions and suspension travel.

5. Benefits of a Tie Rod End Assembly Set

a) Precise Steering

• Ensures accurate response to steering inputs, contributing to driver confidence and vehicle safety.

b) Enhanced Handling

• Maintains wheel alignment, improving overall handling and stability.

c) Longevity of Tires

• Proper alignment prevents uneven tire wear, extending the lifespan of tires.

d) Safety

• Reduces the risk of steering failure, especially during high-speed driving or sudden maneuvers.

e) Smooth Ride Quality

• Absorbs minor vibrations and irregularities, ensuring a comfortable driving experience.

6. Signs of a Faulty Tie Rod End Assembly Set

a) Unusual Tire Wear

• Scalloped or uneven tread wear may indicate misalignment caused by a failing tie rod end.

b) Steering Play

• Excessive looseness or play in the steering wheel suggests a worn or damaged tie rod end.

c) Noise

• Clunking or knocking sounds, especially during turns or on rough roads, often point to a failing ball joint.

d) Poor Alignment

• The vehicle pulling to one side indicates improper alignment, possibly due to a faulty tie rod end.

e) Vibration

• Shaking or vibration in the steering wheel while driving may be caused by worn tie rod ends.

7. Causes of Tie Rod End Failure

a) Wear and Tear

• Regular use leads to gradual degradation of the ball joint and other components.

b) Harsh Driving Conditions

• Driving on rough or unpaved roads accelerates wear.

c) Lack of Maintenance

• Insufficient lubrication and neglect of routine inspections contribute to early failure.

d) Environmental Factors

• Exposure to water, dirt, and road salt can corrode or damage tie rod ends.

8. Maintenance of Tie Rod End Assembly Set

a) Regular Inspections

• Periodically check for signs of wear, damage, or looseness.

b) Lubrication

• Apply grease to the ball joint (if applicable) to reduce friction and prevent corrosion.

c) Alignment Checks

• Perform wheel alignment during routine servicing or after replacing tie rod ends.

d) Replace Damaged Boots

• Ensure the protective rubber boot around the ball joint is intact to prevent contamination.

9. Replacement of Tie Rod End Assembly Set

a) Tools Required

• Jack and jack stands
• Wrenches and sockets
• Tie rod puller
• Torque wrench
• Alignment tools

b) Steps for Replacement

1. Raise the Vehicle: Securely lift the car and remove the wheels.
2. Loosen the Tie Rod End: Detach the locking nut and separating joint from the steering knuckle.
3. Measure and Mark: Note the position of the old tie rod for accurate replacement.
4. Remove the Old Tie Rod: Unscrew the tie rod from the adjusting sleeve or inner tie rod.
5. Install the New Tie Rod: Thread the new tie rod end into place, matching the previous position.
6. Tighten and Torque: Secure all bolts to the manufacturer’s specifications.
7. Perform Alignment: Adjust toe alignment to ensure the vehicle tracks straight.

c) Cost Considerations

• Parts: $20–$100 per tie rod end, depending on quality and vehicle type.
• Labor: $50–$150 at a professional shop.
• Alignment: $50–$100.

10. Innovations in Tie Rod End Design

a) Enhanced Durability

• Modern tie rod ends are made with high-strength materials and improved coatings to resist corrosion.

b) Low-Friction Ball Joints

• Advanced designs reduce steering effort and improve responsiveness.

c) Sealed Designs

• Many tie rod ends now feature sealed ball joints, eliminating the need for periodic lubrication.

d) Lightweight Materials

• Aluminum and composite materials reduce weight without sacrificing strength, improving fuel efficiency.

11. Troubleshooting Common Tie Rod End Issues

a) Persistent Noise

• Verify proper lubrication and check for loose mounting hardware.

b) Alignment Problems

• Ensure correct installation and perform a professional alignment.

c) Premature Wear

• Check for over-tightened components or excessive exposure to dirt and water.

12. Conclusion

The tie rod end assembly set is an essential component of your vehicle’s steering and suspension system, directly influencing safety, handling, and comfort. Proper maintenance, timely replacement, and adherence to alignment schedules ensure optimal performance and longevity. Investing in high-quality components and professional servicing enhances driving confidence, making the tie rod end assembly set a critical aspect of vehicle care.
