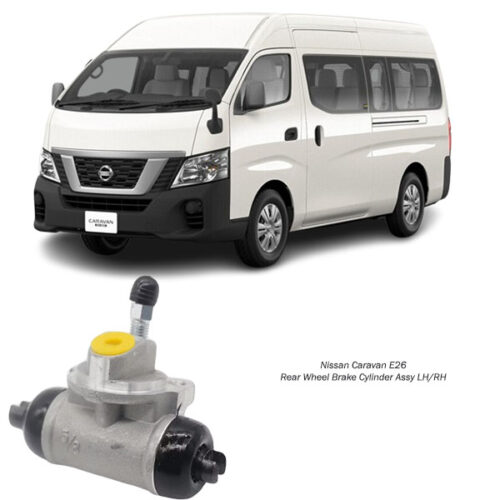

Nissan Caravan E26 Rear Wheel Brake Cylinder Assy LH/RH 44100-05N10

Get Nissan Caravan E26 Rear Wheel Brake Cylinder Assy LH/RH 44100-05N10 in Kenya

When it comes to slowing down safely and effectively, every part of a vehicle’s braking system must work in harmony. Among these, the Rear Wheel Brake Cylinder Assembly, both Left-Hand (LH) and Right-Hand (RH), plays a crucial yet often underappreciated role. This small but mighty hydraulic component lies at the center of drum brake systems, converting brake fluid pressure into the mechanical force that pushes brake shoes outward against the drum, bringing the vehicle to a stop.

Though it works behind the scenes, its performance is directly tied to safety, stopping distance, and brake responsiveness. In this guide, we’ll explore everything you need to know about the rear wheel brake cylinder assembly—what it does, how it works, symptoms of wear, maintenance tips, and why it matters.

🔧 What Is a Rear Wheel Brake Cylinder Assembly?

The Rear Wheel Brake Cylinder Assy is part of a drum brake system and is mounted inside the brake drum. Each rear wheel has its own cylinder—one on the LH side and one on the RH side.

This assembly includes:

• A metal housing (cylinder body)

• Two pistons, each with a rubber seal or cup

• A bleeder valve for removing air from the system

• A dust boot to protect internal parts

• Sometimes pre-attached mounting hardware for ease of installation

The cylinder’s job is to receive hydraulic pressure from the master cylinder (via brake fluid), and use it to push the pistons outward. These pistons then press the brake shoes against the inside of the spinning drum, generating the friction needed to slow or stop the wheel.

⚙️ How It Works

Braking begins the moment you step on the brake pedal. The following chain reaction happens within milliseconds:

1. The master cylinder pushes brake fluid through the brake lines.

2. This fluid enters the rear wheel brake cylinder under pressure.

3. The two pistons inside the cylinder are forced outward.

4. These pistons press against the brake shoes, pushing them against the drum.

5. The friction between the shoes and the drum slows down or stops the wheel.

When the pedal is released, return springs pull the shoes away from the drum, and the pistons slide back into their resting position.

It’s a simple design but extremely effective—and it relies on tight hydraulic seals, clean fluid, and precision movement inside the cylinder.

🧩 RH vs. LH – What’s the Difference?

While both the Left-Hand (LH) and Right-Hand (RH) brake cylinder assemblies perform the same function, their mounting orientation or bleeder screw position may differ slightly depending on design. It’s important to install the correct side-specific cylinder to ensure:

• Proper fluid flow

• Effective bleeding of air

• Correct alignment with brake shoes

• Safe braking operation

Always refer to part specifications to match the right side of the vehicle.

🔎 Signs of a Failing Brake Cylinder

Over time, exposure to heat, moisture, dirt, and contaminated brake fluid can cause a wheel cylinder to wear or corrode. Here are the common symptoms of a failing or leaking wheel cylinder:

1. 🛑 Reduced Braking Performance

A failing cylinder can’t exert full pressure on the brake shoes, reducing brake effectiveness.

2. 💧 Brake Fluid Leaks

If you notice fluid on the inside of the tire or along the backing plate, it may be leaking from the cylinder. Fluid loss can lead to brake failure.

3. 🧯 Soft or Spongy Brake Pedal

Air entering the brake system through a leaking wheel cylinder can cause the brake pedal to feel mushy or unresponsive.

4. ⚠️ Uneven Braking

One rear brake may engage more than the other, leading to pulling during braking or uneven wear.

5. 🧹 Contaminated Brake Shoes

Brake fluid leaking inside the drum can soak the brake shoes, reducing friction and ruining their effectiveness.

🧪 How to Check a Wheel Cylinder

You or a mechanic can inspect a wheel cylinder by removing the brake drum and examining the area around the cylinder:

• Look for wetness or oily residue

• Check if dust boots are cracked or missing

• Test for free piston movement

• Inspect brake shoe surface for contamination

If any of these issues are present, the cylinder likely needs replacement.

🔁 When to Replace It

A rear wheel brake cylinder should be replaced if:

• It is leaking brake fluid

• The rubber seals are worn, swollen, or cracked

• The pistons are seized or stuck

• There is corrosion inside the housing

• You are doing a complete brake system overhaul

• The vehicle has high mileage and the system hasn’t been serviced in a while

Typically, wheel cylinders can last anywhere from 80,000 to 150,000 kilometers, depending on driving conditions and brake maintenance.

🔧 Replacement Process (Overview)

Replacing a wheel cylinder involves the following general steps:

1. Raise and support the vehicle safely.

2. Remove the wheel and brake drum.

3. Disconnect the brake line attached to the cylinder.

4. Remove the brake shoes if necessary for access.

5. Unbolt the old cylinder from the backing plate.

6. Install the new cylinder, ensuring tight seals.

7. Reconnect the brake line and shoes.

8. Bleed the brake system to remove any air.

9. Reassemble the drum and wheel.

10. Test the brakes for proper function.

Although it’s not the most complex job, it does require caution to avoid introducing air into the brake system.

🛡️ Maintenance Tips

You can prolong the life of your wheel cylinders and keep your braking system in top shape by following these tips:

✅ Flush Brake Fluid Regularly

Brake fluid attracts moisture over time, which can corrode internal parts. A flush every 2 years is good practice.

✅ Inspect During Brake Service

Whenever the drum is removed for service, check the cylinder for signs of wear or leakage.

✅ Keep an Eye on Brake Performance

Respond quickly to any changes in pedal feel or braking power—it may be the first sign of internal failure.

✅ Use Quality Parts

Investing in high-quality, corrosion-resistant cylinders can make a noticeable difference in durability and reliability.

📊 Why It Matters

While disc brakes may dominate the front axle, drum brakes with wheel cylinders still provide significant stopping power, especially in daily driving conditions. A healthy rear brake system ensures:

• Even braking distribution

• Reduced stress on front brakes

• Better vehicle control during emergency stops

• Lower risk of rear-wheel lockup

Neglecting these small components can compromise the safety of the entire brake system.

🧠 Final Thoughts

The Rear Wheel Brake Cylinder Assembly LH/RH is a hidden hero of the braking system. Though small and often overlooked, it has the essential job of converting hydraulic pressure into the mechanical force that makes your brakes function.

By understanding how it works and recognizing the signs of wear or failure, you can stay ahead of brake issues and keep your driving experience safe and responsive. Regular inspection, fluid maintenance, and timely replacement are key to avoiding costly damage—and more importantly, ensuring peace of mind every time you press the brake pedal.
