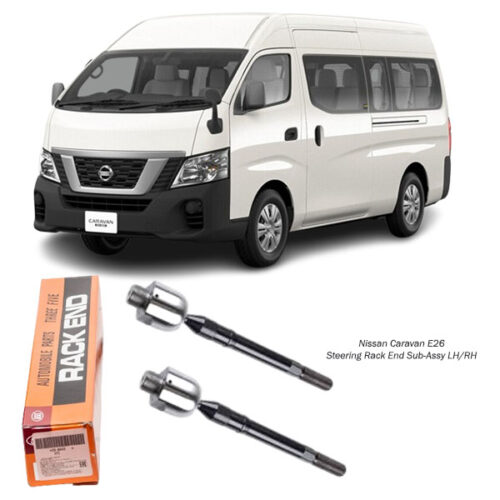

Nissan Caravan E26 Steering Rack End Sub-Assy LH/RH SRN660

Get Nissan Caravan E26 Steering Rack End Sub-Assy LH/RH SRN660 in Kenya

When thinking about steering components, most drivers picture the steering wheel, maybe the steering rack itself—but few are aware of the smaller, vital components that work behind the scenes to ensure precise control and safe handling. One of those essential parts is the Steering Rack End Sub-Assembly, often referred to as the rack end or inner tie rod.

This small but powerful part is key to translating your steering inputs into actual wheel movement. In this article, we’ll take a deep dive into what the Steering Rack End Sub-Assy LH/RH is, how it works, signs of wear, why replacement matters, and how it fits into the broader steering system.

📘 What Is a Steering Rack End Sub-Assy?

The Steering Rack End Sub-Assembly is a component found on each side of the steering rack—one on the left-hand side (LH) and one on the right-hand side (RH). These are the inner ends of the steering linkage that connect the rack to the outer tie rods, which then connect to the wheel hub assemblies.

Its job is simple but critical: it transmits force from the rack gear (moved by your steering wheel) to the tie rods, which push or pull the wheels to steer the vehicle left or right.

It’s a direct mechanical link between the steering rack and the front wheels—making it an indispensable part of the steering system.

🧩 How It Works in the Steering System

The modern rack-and-pinion steering system is compact, responsive, and reliable. When you turn the steering wheel:

1. The steering column rotates.

2. This movement is transferred to the steering rack.

3. The rack slides left or right depending on the direction of turn.

4. The rack ends (inner tie rods), bolted to either side of the rack, move with it.

5. These rack ends push or pull the outer tie rods, which in turn rotate the steering knuckles and move the wheels.

Each rack end acts like a hinged joint, allowing movement not just left and right, but also up and down, to accommodate suspension travel.

🔍 Anatomy of a Rack End Sub-Assembly

While the exact design can vary, a typical rack end sub-assy includes:

• Threaded inner section – Screws into or bolts onto the rack housing.

• Ball-and-socket joint – Allows multi-directional movement while maintaining strength and control.

• Threaded outer shaft – Connects to the outer tie rod and adjusts toe alignment.

• Protective boot (optional) – A rubber boot or bellow helps keep grease in and contaminants out.

The LH and RH rack ends are usually mirror images, designed to work symmetrically on either side of the vehicle.

🧱 Common Materials and Build Quality

Rack ends are built for strength and longevity. Typical materials include:

• Forged steel or hardened alloy – For strength and resistance to wear.

• Protective coatings – Such as zinc plating or phosphate to prevent corrosion.

• Grease-filled joints – Ensuring smooth, quiet operation under load.

Some high-end or performance variants use sealed ball joints, while others allow for periodic lubrication.

⚠️ Signs of a Failing Rack End

Rack ends are constantly moving and taking on mechanical stress, especially when turning or driving on uneven surfaces. Over time, they wear out. Here’s how to spot the symptoms:

1. 🎯 Loose or Unresponsive Steering

If your steering feels vague or less direct, worn rack ends may be introducing play in the system.

2. 🗯️ Clunking Noises

Knocking or clunking from the front end—especially when turning the wheel—can signal a loose or damaged ball joint within the rack end.

3. 🧭 Steering Wander or Pulling

If the vehicle tends to drift to one side or doesn’t hold its line, it could be due to uneven movement caused by worn rack ends.

4. 👣 Uneven Tire Wear

Excessive play can throw off wheel alignment, leading to rapid or uneven wear on your tires.

5. 👀 Visible Damage

During inspection, torn boots, grease leaks, or noticeable movement in the inner tie rod can indicate it’s time for a replacement.

🔧 Replacement Considerations

Replacing a worn rack end sub-assy is essential for safety and handling. This is not a “wait and see” part—when it’s worn, it should be replaced promptly.

When to Replace:

• During steering system overhauls

• After an alignment issue diagnosis

• If the steering feels loose or noisy

• After a front-end collision or impact

Should You Replace Both Sides?

If one side is worn, it’s often best to replace both LH and RH rack ends for balance and consistent performance—especially if they’re the same age.

🔩 Replacement Process Overview

Replacing the rack end sub-assembly involves:

1. Lifting the vehicle and removing the front wheels.

2. Removing the outer tie rod, often by loosening a lock nut and detaching the joint.

3. Detaching the rack end, typically using a special tool to unscrew it from the rack.

4. Installing the new rack end, ensuring the proper thread engagement and torque.

5. Reinstalling the outer tie rod, adjusting for alignment.

6. Checking and correcting wheel alignment, which is crucial after replacing steering components.

While the process seems straightforward, precision is key—improper installation can result in poor handling or premature wear.

🛠️ Maintenance Tips for Longevity

While rack ends are generally low-maintenance, a few best practices can extend their life:

✅ Inspect Regularly

Include them in your routine steering and suspension inspections.

✅ Protect the Boots

Ensure the rubber dust boots or bellows are intact—torn boots allow dirt and moisture in, leading to premature failure.

✅ Mind the Roads

Potholes, rough terrain, and curbs can place stress on steering components. Drive mindfully to avoid impact damage.

✅ Get Proper Alignments

Regular wheel alignments ensure the rack ends work within designed parameters and reduce uneven stress.

🧠 Why Rack End Health Matters

A faulty or loose rack end can affect more than just steering feel—it can impact safety, tire life, fuel efficiency, and suspension alignment. Because it’s such a critical connection between your steering rack and the wheels, any weakness in this area compromises your control of the vehicle.

Whether you’re driving in the city, on highways, or off-road, healthy rack ends ensure every steering input is translated accurately into wheel direction.

📌 Conclusion

The Steering Rack End Sub-Assy LH/RH might be one of the most underappreciated parts of a vehicle’s steering system, but it plays an essential role in maintaining handling precision, safety, and driving confidence. From absorbing motion to keeping alignment tight, this small joint does a big job.

Understanding how it works, knowing the signs of wear, and replacing it on time can make all the difference in steering performance and vehicle reliability.
