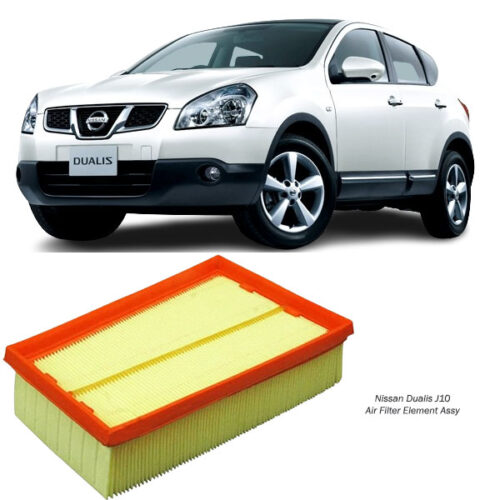

Nissan Dualis J10/J10E Air Filter Element Assy 16546-JD20A

The air filter element assembly is a vital part of a vehicle’s engine air filtration system. It plays a key role in ensuring that the engine receives clean, filtered air, which is necessary for proper combustion. Without a functioning air filter element assembly, the engine would be exposed to dirt, debris, and contaminants, leading to inefficient operation, reduced performance, and potential long-term damage.

In this article, we’ll explore the function, types, and maintenance of the air filter element assembly, along with common signs that the filter needs to be replaced. We’ll also cover the process of replacing the air filter, ensuring that you understand how to keep your vehicle’s engine operating at its best.

What is an Air Filter Element Assembly? 🔧

The air filter element assembly consists of an air filter element (usually made from paper, foam, or synthetic materials) housed in a plastic or metal frame. The assembly is designed to fit into a specific location in the air intake system of a vehicle, typically near the engine’s intake manifold. The purpose of the air filter element is to trap dirt, dust, and debris before they enter the engine’s combustion chambers.

The main components of an air filter element assembly include:

1. Air Filter Element: This is the actual filter made of materials like paper, foam, or synthetic fibers. It is the part that filters out dirt and other contaminants from the air.

2. Filter Housing or Frame: The air filter element is housed in a plastic or metal casing that helps hold it in place within the air intake system.

3. Sealing Gasket: This rubber or foam gasket ensures that no unfiltered air bypasses the filter, directing all incoming air through the filter element.

4. Mounting Brackets or Clips: These parts secure the filter housing to the vehicle’s air intake system, ensuring it stays in place during operation.

5. Bypass Valve (optional): Some air filter assemblies are equipped with a bypass valve that opens when the filter becomes clogged, allowing unfiltered air to enter the engine temporarily to prevent engine damage from insufficient airflow.

How Does an Air Filter Element Assembly Work? ⚙️

The air filter element assembly is located in the vehicle’s air intake system, which is responsible for drawing in air from outside the vehicle and delivering it to the engine for combustion. Here’s how the air filter element works within this system:

1. Air Intake: As the vehicle’s engine runs, air is drawn into the intake system through the front of the vehicle. This air typically comes from the outside environment, where it may contain dust, pollen, dirt, leaves, and other debris.

2. Air Filter Function: When the air passes through the air filter element, contaminants are trapped by the fibers within the filter. The filter material has tiny pores that allow air to pass through but block larger particles, ensuring that only clean air enters the engine.

3. Clean Air to the Engine: Once the air has passed through the filter, it moves into the engine’s intake manifold, where it is mixed with fuel for combustion. The filtered air is crucial for achieving proper fuel combustion, which helps the engine run efficiently.

4. Engine Protection: By preventing contaminants from entering the engine, the air filter element protects the sensitive components of the engine, such as the pistons, cylinders, and valves, from damage caused by abrasion, clogging, or excessive wear.

5. Ongoing Filtration: The air filter element continually filters the air as long as the vehicle is running. Over time, the filter accumulates debris, which may reduce airflow and filtering efficiency.

Types of Air Filter Elements 🛠️

There are several types of air filter elements, each designed for specific engine requirements and environmental conditions. The most common types include:

1. Paper Air Filters 📄
   Paper filters are the most common type used in modern vehicles. They are made from a pleated, fibrous material that is designed to trap dirt, dust, and other contaminants effectively. Paper filters are disposable and need to be replaced once they become clogged.

   • Advantages:

     • Affordable and widely available.

     • Effective in trapping contaminants.

     • Lightweight and easy to install.

   • Disadvantages:

     • Not reusable; must be replaced when dirty.

     • May clog more quickly in dusty or harsh conditions.

2. Cotton or Foam Air Filters 🧽
   These filters are made from cotton or foam materials and are often used in performance vehicles or off-road applications. They are often reusable and can be cleaned and re-oiled to maintain efficiency.

   • Advantages:

     • Reusable and can be cleaned and oiled.

     • Higher airflow, which may benefit performance vehicles.

     • Effective at trapping larger debris.

   • Disadvantages:

     • More expensive upfront.

     • Requires regular cleaning and maintenance.

3. Synthetic Air Filters 🧬
   Synthetic air filters are made from a combination of man-made fibers designed to trap fine particles while offering high airflow. These filters are typically more durable than paper filters and can be cleaned and reused.

   • Advantages:

     • Higher durability and longer lifespan.

     • Can be cleaned and reused.

     • Offers better performance in extreme conditions.

   • Disadvantages:

     • More expensive than paper filters.

     • Requires proper cleaning and oiling for optimal performance.

4. HEPA Filters (High-Efficiency Particulate Air) 🌱
   HEPA filters are used in certain applications where extremely clean air is required, such as in high-performance or luxury vehicles. These filters are designed to capture very fine particles, including bacteria and allergens.

   • Advantages:

     • Highly effective at filtering fine particles.

     • Ideal for environments with high pollution levels.

   • Disadvantages:

     • Expensive and often require professional maintenance.

     • Can reduce airflow if not properly maintained.

Signs That the Air Filter Element Needs Replacing ⚠️

Over time, the air filter element will accumulate dirt and debris, reducing its ability to filter air properly. Here are some signs that it may be time to replace the air filter element assembly:

1. Reduced Engine Performance: If you notice that your vehicle’s engine is not performing as well, such as sluggish acceleration or rough idling, a clogged air filter could be restricting airflow and affecting combustion efficiency.

2. Decreased Fuel Efficiency: A dirty air filter reduces the engine’s ability to burn fuel efficiently, which can lead to decreased fuel economy.

3. Increased Engine Hesitation: If the engine hesitates or stalls during acceleration, the airflow may be insufficient due to a clogged air filter.

4. Unusual Engine Sounds: A clogged air filter can cause the engine to work harder to draw in air, leading to unusual engine noises, such as a sputtering sound or a “choking” effect.

5. Check Engine Light: In some vehicles, the check engine light may come on if the air filter becomes excessively clogged and affects engine performance.

6. Visible Dirt or Damage: If you inspect the air filter and see visible dirt buildup, tears, or holes in the filter material, it is time to replace it.

Replacing the Air Filter Element Assembly 🔄

Replacing the air filter element assembly is a relatively simple process that can be done at home with minimal tools. Here’s how to replace the air filter element:

Tools You’ll Need:

• A replacement air filter element

• Screwdriver or socket set (if required)

• Clean gloves (optional)

Step-by-Step Process:

1. Locate the Air Filter Housing: Open the vehicle’s hood and locate the air filter housing. The housing is usually a rectangular or circular box near the engine’s intake system.

2. Remove the Housing Cover: Use a screwdriver or socket to remove any screws, bolts, or clips securing the air filter housing cover. Lift the cover off the housing to expose the air filter element.

3. Inspect the Filter: Take out the old air filter and inspect it for dirt, damage, or wear. If it’s dirty or clogged, it needs to be replaced.

4. Insert the New Air Filter: Place the new air filter into the housing, ensuring it fits snugly. Make sure the filter is seated properly and that there are no gaps around the edges.

5. Reassemble the Housing: Once the new filter is in place, reattach the housing cover and secure it with screws, bolts, or clips.

6. Check for Proper Fit: Ensure that the filter is securely in place and that the housing is properly closed to prevent unfiltered air from entering the engine.

7. Test the Vehicle: Start the engine and check for smooth operation. Ensure there are no unusual noises or performance issues.

Conclusion 🎯

The air filter element assembly plays a crucial role in protecting your engine by ensuring that it receives clean, filtered air for combustion. Regular maintenance of the air filter element is necessary to ensure optimal engine performance, fuel efficiency, and long-term engine health. By understanding the types of air filters, signs of wear, and how to replace them, you can keep your vehicle running smoothly and efficiently.

Replacing the air filter is a simple task that can be performed at home, and it’s a small investment that can make a significant difference in your vehicle’s overall performance. Whether you choose a paper, cotton, synthetic, or HEPA filter, keeping your air filter clean and in good condition is essential for maintaining your vehicle’s reliability and longevity.
