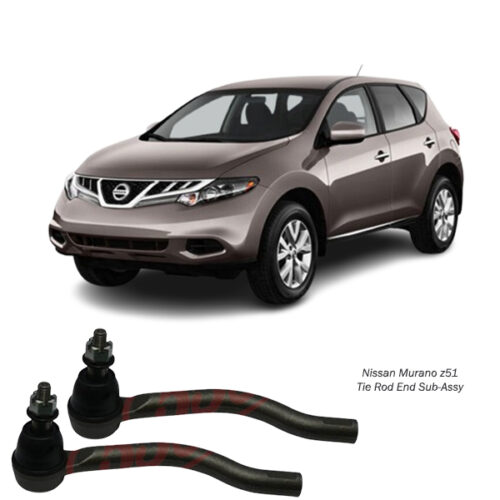

Nissan Murano Z51 Tie rod end sub assy R/L SEN151

Get Nissan Murano Z51 Tie rod end sub assy R/L SEN151 in Kenya

The tie rod end sub-assembly (R/L) is a critical component of a vehicle’s steering and suspension system. It directly influences steering precision, alignment, and overall vehicle control. This detailed guide will cover its function, construction, types, benefits, signs of wear, maintenance tips, and replacement considerations.

What is a Tie Rod End Sub-Assembly?

The tie rod end sub-assembly connects the steering rack or linkage to the steering knuckle, facilitating smooth and precise wheel movement. It plays an integral role in translating the driver’s steering inputs into the motion of the wheels, ensuring accurate handling and alignment.

The designation R/L stands for Right (R) and Left (L) sides of the vehicle. Each side has a specific design and orientation to align with the steering system’s geometry.

Functions of a Tie Rod End Sub-Assembly

1. Steering Connection:
   • Transfers force from the steering gear to the steering knuckle, enabling wheel movement.
2. Steering Precision:
   • Maintains the desired direction of travel by facilitating smooth wheel alignment.
3. Suspension Integration:
   • Works in tandem with suspension components to ensure a comfortable and stable ride.
4. Alignment Control:
   • Helps maintain correct toe alignment, a critical factor in vehicle stability and tire longevity.

Components of a Tie Rod End Sub-Assembly

1. Tie Rod End:
   • A ball-jointed component that allows flexibility and rotation for smooth steering movement.
2. Stud:
   • Connects the tie rod end to the steering knuckle and allows pivoting motion.
3. Ball Socket:
   • Encases the ball joint, enabling rotational movement while securing the stud in place.
4. Dust Boot:
   • Protects the ball joint and socket from dirt, moisture, and debris, preventing premature wear.
5. Lock Nut:
   • Secures the assembly to the steering knuckle, ensuring a stable connection.
6. Threaded Section:
   • Adjusts toe alignment by enabling slight rotational adjustments during wheel alignment procedures.

Types of Tie Rod Ends

Tie rod ends come in different designs to suit various vehicle types and driving conditions. Common types include:

1. Inner Tie Rod Ends:
   • Located closer to the steering rack or gear.
   • Primarily responsible for transmitting steering inputs to the outer tie rod.
2. Outer Tie Rod Ends:
   • Positioned near the steering knuckle.
   • Provides the final link in the steering system to the wheels.
3. Adjustable Tie Rod Ends:
   • Allows for manual adjustments during alignment to fine-tune steering geometry.
4. Non-Adjustable Tie Rod Ends:
   • Fixed design, often pre-set during manufacturing, requiring replacement if alignment issues arise.

Benefits of a Tie Rod End Sub-Assembly

1. Improved Steering Control:
   • Ensures smooth and precise steering, enhancing overall driving experience.
2. Enhanced Safety:
   • Maintains alignment and stability, reducing the risk of accidents caused by erratic steering.
3. Longevity of Tires:
   • Properly functioning tie rod ends prevent uneven tire wear, extending tire lifespan.
4. Reduced Component Stress:
   • Minimizes strain on other steering and suspension parts by maintaining proper alignment.
5. Optimized Fuel Efficiency:
   • Proper alignment reduces rolling resistance, improving fuel economy.

Signs of Wear or Failure

Tie rod ends are subject to constant stress and wear due to their role in steering and suspension. Symptoms of a failing tie rod end include:

1. Loose or Wobbly Steering:
   • Excessive play in the steering wheel indicates wear in the tie rod end.
2. Uneven Tire Wear:
   • Misaligned wheels caused by a damaged tie rod end lead to uneven tire tread patterns.
3. Clunking or Knocking Noise:
   • A worn ball joint in the tie rod end may produce noise when driving over bumps or during turns.
4. Vibration While Driving:
   • A damaged tie rod end can cause vibrations that are felt through the steering wheel.
5. Steering Pulls to One Side:
   • Misalignment due to tie rod wear can cause the vehicle to drift or pull to one side.
6. Visual Damage:
   • Cracks or tears in the dust boot, rust, or other visible signs of damage indicate the need for replacement.

Maintenance of Tie Rod Ends

To ensure the longevity and performance of tie rod ends, regular maintenance is essential. Here’s how to keep them in top condition:

1. Regular Inspections:
   • Check for visible damage, loose components, or worn dust boots during routine vehicle maintenance.
2. Greasing:
   • Some tie rod ends are greasable. Regularly lubricate these components to reduce friction and wear.
3. Wheel Alignment:
   • Perform alignment checks after any major suspension or steering repair to ensure proper settings.
4. Avoid Overloading:
   • Excessive weight can strain the steering system, leading to premature tie rod wear.
5. Prompt Repairs:
   • Address symptoms of wear immediately to prevent further damage to other steering or suspension parts.

Replacement Considerations

Replacing a tie rod end sub-assembly requires attention to detail and adherence to manufacturer specifications. Here’s what to consider:

1. Compatibility:
   • Ensure the tie rod end is designed for your specific vehicle make, model, and side (right or left).
2. Quality:
   • Opt for high-quality components from reputable manufacturers to ensure durability and performance.
3. Professional Installation:
   • Have the replacement performed by a qualified technician to guarantee proper fitment and alignment.
4. Alignment After Replacement:
   • Always perform a wheel alignment after replacing tie rod ends to restore proper geometry.
5. Cost:
   • While aftermarket options may be cheaper, OEM or high-quality aftermarket tie rod ends offer better reliability and longevity.

Innovations in Tie Rod End Design

Modern advancements have improved tie rod end performance and durability:

1. Enhanced Materials:
   • Use of high-strength steel or composite materials for better resistance to wear and corrosion.
2. Advanced Dust Boots:
   • Improved designs and materials provide superior protection against contaminants.
3. Integrated Lubrication:
   • Maintenance-free tie rod ends come pre-lubricated, reducing the need for periodic greasing.
4. Adjustable Designs:
   • Allow for easier alignment adjustments, catering to performance and off-road enthusiasts.

Steps to Replace a Tie Rod End Sub-Assembly

Replacing a tie rod end typically involves the following steps:

1. Prepare the Vehicle:
   • Lift the vehicle and secure it on jack stands. Remove the wheel to access the tie rod end.
2. Loosen the Old Tie Rod:
   • Remove the cotter pin and nut securing the tie rod stud to the steering knuckle.
3. Detach the Tie Rod:
   • Use a tie rod puller to disconnect the stud from the steering knuckle.
4. Replace the Component:
   • Thread the new tie rod end onto the steering linkage, matching the previous orientation.
5. Secure the Assembly:
   • Attach the stud to the steering knuckle, tighten the nut, and insert a new cotter pin.
6. Alignment Check:
   • Perform a wheel alignment to ensure proper steering geometry.

Conclusion

The tie rod end sub-assembly (R/L) is a vital component of a vehicle’s steering and suspension system. Proper maintenance, timely replacement, and quality components are essential for ensuring safety, performance, and longevity. By understanding its functions, benefits, and maintenance requirements, drivers can ensure smooth and reliable steering for their vehicles.
