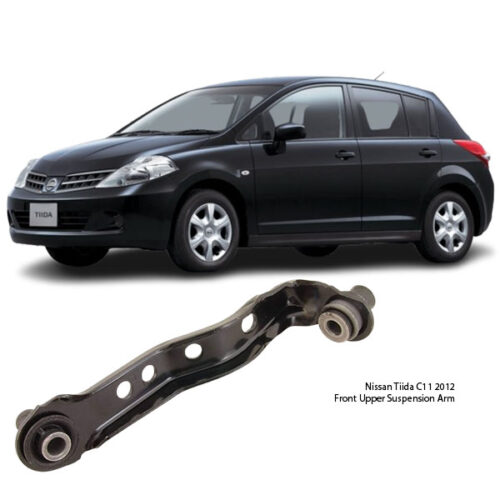

Nissan Tiida C11 2012 Front Upper Suspension Arm Assy LH NSL-NM3

Get Nissan Tiida C11 2012 Front Upper Suspension Arm Assy LH NSL-NM3 in Kenya

The Front Upper Suspension Arm Assembly (LH) is a crucial component of the suspension system in vehicles, particularly in double-wishbone and multi-link suspension setups. It plays a key role in maintaining stability, handling, and comfort while driving.

This guide provides an in-depth explanation of:

• Overview of the Front Upper Suspension Arm Assembly
• How It Works
• Functions of the Suspension Arm Assembly
• Benefits of a Well-Functioning Suspension Arm
• Common Symptoms of a Failing Suspension Arm
• Causes of Suspension Arm Failure
• Inspection and Maintenance Tips
• Replacement Procedure
• Choosing the Right Suspension Arm for Your Vehicle

Overview of the Front Upper Suspension Arm Assembly (LH)

The Front Upper Suspension Arm Assembly (LH) (Left-Hand side) is a control arm that connects the vehicle’s frame or chassis to the steering knuckle or wheel hub assembly. It is found primarily in vehicles with independent front suspension, such as:

• SUVs
• Pickup trucks
• Sedans
• Off-road vehicles

This component is essential for controlling wheel movement, maintaining alignment, and absorbing road shocks.

How It Works

The upper suspension arm works in coordination with the lower control arm and other suspension components, including:

• Shock absorbers (or struts)
• Ball joints
• Bushings
• Stabilizer bars

Step-by-Step Functioning:

1. Supports Wheel Movement – It helps control vertical and lateral wheel movement while driving.
2. Absorbs Road Shocks – Works alongside the lower control arm and suspension system to absorb bumps and uneven terrain.
3. Maintains Wheel Alignment – Keeps the wheel positioned correctly for optimal contact with the road.
4. Enables Steering Control – Ensures smooth cornering and handling by keeping the suspension geometry intact.

Functions of the Front Upper Suspension Arm Assembly

The upper control arm plays several critical roles in vehicle performance:

✔ Supports Suspension System:

• Helps distribute load and absorbs road forces for a smoother ride.

✔ Maintains Camber Angle:

• Ensures the tire maintains the correct vertical angle relative to the road.

✔ Prevents Excessive Tire Wear:

• Keeps tires aligned properly, reducing uneven tread wear.

✔ Enhances Steering Response:

• Works with ball joints and bushings to provide precise steering control.

✔ Improves Ride Comfort:

• Reduces vibrations and absorbs road imperfections.

Benefits of a Well-Functioning Suspension Arm

A properly maintained front upper suspension arm assembly offers multiple advantages:

✔ Enhanced Vehicle Stability – Ensures even weight distribution and reduces body roll during cornering.
✔ Improved Handling & Steering Precision – Keeps the wheels in proper alignment for a smoother driving experience.
✔ Better Tire Longevity – Prevents uneven tire wear, reducing frequent tire replacements.
✔ Increased Comfort & Safety – Absorbs road shocks, minimizing vibrations and harsh impacts.
✔ Prevents Damage to Other Suspension Components – A faulty control arm can stress ball joints, bushings, and tie rods, leading to expensive repairs.

Common Symptoms of a Failing Suspension Arm

If the front upper suspension arm assembly begins to wear out, you may notice:

🚨 Clunking or Knocking Sounds

• Worn-out ball joints or bushings cause metal-to-metal contact, producing noises when driving over bumps.

🚨 Uneven or Rapid Tire Wear

• Misalignment due to a bad suspension arm results in irregular tire wear patterns.

🚨 Steering Wheel Vibration

• A failing control arm can loosen steering connections, causing vibrations at high speeds.

🚨 Poor Handling or Drifting

• If the vehicle pulls to one side, it could indicate a worn-out control arm affecting alignment.

🚨 Excessive Play in the Steering

• A loose control arm affects steering responsiveness, making the vehicle harder to control.

Causes of Suspension Arm Failure

Several factors contribute to suspension arm wear and failure:

🔧 Normal Wear & Tear – Constant movement leads to bushing and ball joint deterioration over time.
🔧 Rough Road Conditions – Driving on potholes, gravel, or off-road terrains accelerates damage.
🔧 Corrosion & Rust – Exposure to moisture, road salt, and debris weakens the metal components.
🔧 High-Impact Collisions – Accidents, hitting curbs, or severe bumps can bend or crack the control arm.
🔧 Overloading the Vehicle – Excess weight stresses the suspension system, leading to premature wear.

Inspection and Maintenance Tips

✔ Visual Inspection – Check for cracks, rust, and deformed parts regularly.
✔ Listen for Noises – Clunking sounds while driving over bumps indicate worn ball joints or bushings.
✔ Monitor Tire Wear Patterns – Uneven wear suggests alignment issues due to suspension wear.
✔ Check Steering Responsiveness – Difficulty steering or drifting to one side signals a control arm problem.
✔ Lubricate Ball Joints (if applicable) – Prevent excessive friction by applying grease to serviceable ball joints.

Replacement Procedure for Front Upper Suspension Arm Assembly (LH)

🛠 Tools Required:
✔ Jack & Jack Stands
✔ Wrench Set & Ratchet
✔ Ball Joint Separator
✔ Torque Wrench
✔ Pry Bar

🛠 Step-by-Step Replacement:

1️⃣ Raise the Vehicle & Remove the Wheel

• Use a jack and jack stands for safety.

2️⃣ Unbolt the Ball Joint

• Loosen and remove the ball joint nut connecting the upper arm to the steering knuckle.

3️⃣ Detach the Suspension Arm Mounting Bolts

• Remove the bolts securing the control arm to the chassis.

4️⃣ Install the New Suspension Arm Assembly

• Align the new arm and tighten bolts to manufacturer’s torque specifications.

5️⃣ Reconnect the Ball Joint & Torque Properly

• Secure the ball joint nut and ensure proper alignment.

6️⃣ Reinstall the Wheel & Lower the Vehicle

• Double-check all connections before lowering the car.

7️⃣ Perform a Wheel Alignment

• Ensure proper camber and caster angles after suspension work.

Choosing the Right Suspension Arm for Your Vehicle

✔ OEM vs. Aftermarket:

• OEM Parts ensure a perfect fit and maintain factory standards.
• Aftermarket Options can be cost-effective, but quality varies.

✔ Material Quality:

• Forged aluminum or steel provides durability and strength.

✔ Compatibility:

• Ensure the part matches your vehicle’s make, model, and year.

✔ Warranty & Brand Reputation:

• Choose reputable manufacturers that offer a warranty on suspension parts.

Final Thoughts

The Front Upper Suspension Arm Assembly (LH) is an essential part of the suspension system, ensuring stability, handling, and ride comfort. Regular inspection and timely replacement prevent steering issues, uneven tire wear, and costly repairs. By maintaining this component, you enhance vehicle safety, performance, and driving experience. 🚗💨
