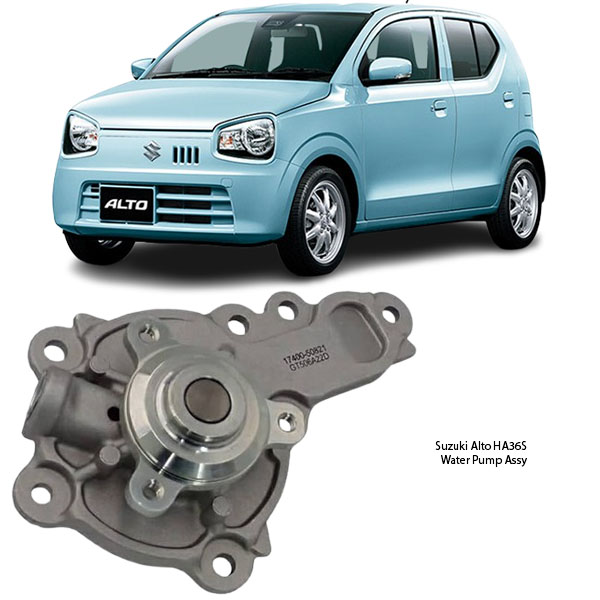

Suzuki Alto Water Pump Assy 17400-50821

Get Suzuki Alto Water Pump Assy 17400-50821 in Kenya

The water pump assembly is a critical component in a vehicle’s cooling system, responsible for circulating coolant throughout the engine to regulate temperature and prevent overheating. A properly functioning water pump ensures that the engine operates at an optimal temperature, avoiding excessive heat buildup that can cause engine damage, reduced performance, or even failure.

This guide explores the functions, components, benefits, signs of failure, maintenance tips, and replacement considerations for a water pump assembly in 1,000 words.

1. What Is a Water Pump Assembly?

A water pump assembly is a mechanical device that moves coolant through the engine and radiator to dissipate excess heat. It is typically belt-driven and operates whenever the engine runs.

Basic Working Principle:

1. Coolant flows from the radiator into the water pump.
2. The water pump impeller spins, creating a centrifugal force that pushes the coolant into the engine.
3. Coolant absorbs engine heat and returns to the radiator, where it is cooled before recirculating.

A faulty water pump can cause engine overheating, leading to potential head gasket damage or total engine failure.

2. Components of a Water Pump Assembly

A typical water pump assembly consists of several key components that work together to ensure proper coolant circulation:

A. Housing

• The outer casing of the pump, usually made of aluminum or cast iron, which encloses and protects the internal components.

B. Impeller

• A rotating fan-like structure inside the pump.
• Usually made of metal or plastic, the impeller forces coolant to flow through the cooling system.

C. Bearings and Shaft

• The bearings support the shaft, which connects to the impeller and allows it to spin.
• Bearings are lubricated and sealed to minimize friction and wear.

D. Pulley or Gear

• Belt-driven water pumps use a pulley, which is connected to the engine’s serpentine belt or timing belt.
• Some modern electric water pumps are gear-driven and powered by the engine control unit (ECU).

E. Seal and Gasket

• Prevents leaks between the water pump housing and the engine block.
• Typically made of rubber, silicone, or metal-reinforced materials.

3. Types of Water Pumps

There are two main types of water pumps used in vehicles:

A. Mechanical Water Pump

• Driven by a serpentine belt, timing belt, or timing chain.
• Common in traditional internal combustion engines (ICEs).
• Reliable but requires periodic maintenance.

B. Electric Water Pump

• Operates using an electric motor controlled by the ECU.
• More common in modern fuel-efficient and hybrid vehicles.
• Provides variable coolant flow, improving fuel economy and reducing emissions.

4. Benefits of a Well-Functioning Water Pump

A properly working water pump enhances engine efficiency and longevity by:

✔ Preventing Overheating – Ensures consistent coolant circulation, keeping engine temperatures stable.
✔ Optimizing Engine Performance – Reduces heat stress on engine components, improving combustion efficiency.
✔ Enhancing Fuel Efficiency – A well-regulated temperature helps maintain optimal fuel combustion.
✔ Extending Engine Lifespan – Prevents excessive wear on engine components, reducing the risk of expensive repairs.

5. Signs of a Failing Water Pump

A failing water pump can cause serious engine problems. Here are some common warning signs to look for:

A. Coolant Leaks

• Puddle of coolant under the engine.
• Usually green, red, or orange in color.
• Leaks often occur near the water pump housing or gasket.

B. Engine Overheating

• Temperature gauge shows high temperatures.
• Steam coming from the engine bay.
• Overheating can lead to a blown head gasket.

C. Grinding or Whining Noises

• Worn-out bearings may produce grinding or whining sounds.
• Can be caused by a loose or damaged pulley.

D. Coolant Contamination

• Rust or debris in the coolant reservoir.
• Indicates internal corrosion, affecting coolant flow.

E. Low Coolant Levels

• If coolant levels keep dropping, check for leaks from the water pump seal.
• A failing pump may cause coolant evaporation.

F. Engine Misfires or Poor Performance

• An overheating engine can cause ignition timing issues.
• May result in rough idling or loss of power.

6. Water Pump Maintenance Tips

Regular inspection and maintenance can extend the lifespan of a water pump:

✔ Check Coolant Levels – Keep coolant at the recommended level to prevent pump damage.
✔ Inspect for Leaks – Regularly check under the vehicle for any signs of coolant leakage.
✔ Replace Coolant Periodically – Use the correct coolant type and flush the system every 30,000 – 50,000 km.
✔ Monitor Engine Temperature – If the temperature gauge fluctuates, inspect the cooling system.
✔ Check Drive Belts – A worn or loose belt can reduce water pump efficiency.
✔ Listen for Noises – Unusual whining or grinding sounds indicate bearing or pulley issues.

7. When to Replace a Water Pump

A water pump typically lasts between 100,000 – 150,000 km, depending on vehicle usage and maintenance. Replace the water pump if you notice:

✔ Persistent coolant leaks.
✔ Overheating despite coolant refills.
✔ Loud bearing noises from the pump.
✔ Rust or deposits inside the cooling system.

8. Steps to Replace a Water Pump

Replacing a water pump assembly is a moderate to advanced mechanical task. Here’s a general step-by-step guide:

Tools Needed:

🔧 Socket wrench set
🛢️ Drain pan
🔩 New water pump + gasket
🟢 Fresh coolant

Step-by-Step Process:

1. Disconnect the Battery – Ensures safety before working.
2. Drain Coolant – Open the radiator drain plug and collect coolant.
3. Remove Drive Belt or Timing Belt – Required to access the pump.
4. Unbolt and Remove the Old Pump – Carefully detach the old pump and gasket.
5. Install the New Pump – Align the new gasket and pump, then bolt it securely.
6. Reassemble Components – Reinstall the drive belt/timing belt.
7. Refill with Coolant – Use fresh coolant and bleed the system of air bubbles.
8. Test the Engine – Check for leaks and proper operation.

💡 Pro Tip: If replacing a timing belt-driven water pump, change the timing belt at the same time to avoid future failures.

Conclusion

The water pump assembly is an essential component in a vehicle’s cooling system, ensuring optimal engine temperature and preventing overheating. Regular maintenance, early detection of issues, and timely replacement can help extend the lifespan of your engine and improve overall vehicle performance.

If you suspect water pump failure, address it immediately to avoid costly repairs and engine damage. A well-maintained cooling system ensures a smooth and reliable driving experience! 🚗💨
