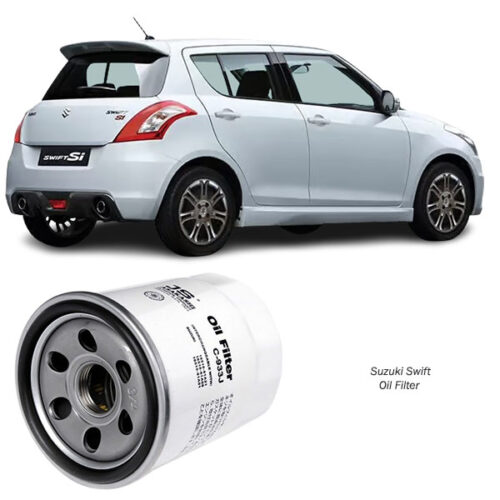

Suzuki Swift Oil Filter Assy C933J

Get Suzuki Swift Oil Filter Assy C933J in Kenya

The oil filter assembly is a crucial component of an internal combustion engine, playing a pivotal role in maintaining engine health and performance. Understanding its functions, components, and maintenance is essential for anyone involved in automotive maintenance, repair, or operation. This detailed explanation covers the structure, working principle, benefits, and maintenance of oil filter assemblies.

1. What is an Oil Filter Assembly?

An oil filter assembly is a system designed to remove contaminants, debris, and impurities from engine oil. It ensures that the oil circulating within the engine remains clean, thereby reducing wear and tear on engine components and extending engine life. The assembly typically includes the oil filter itself, housing, and various seals and fittings.

The assembly is usually located near the engine block, where it is easily accessible for maintenance. Modern vehicles may use different types of oil filter assemblies depending on the engine design and manufacturer specifications.

2. Components of an Oil Filter Assembly

An oil filter assembly consists of several key components, each serving a specific purpose:

1. Oil Filter Housing:
   • This is the casing that holds the oil filter in place. It is often made of durable materials such as aluminum or plastic to withstand high temperatures and pressures.
2. Filter Element:
   • The core part of the oil filter, typically made of synthetic fiber, cellulose, or a combination of both. It captures contaminants from the oil.
3. Anti-Drainback Valve:
   • A valve that prevents oil from draining out of the filter when the engine is off, ensuring immediate lubrication upon engine startup.
4. Bypass Valve:
   • A safety feature that allows oil to bypass the filter if it becomes clogged, ensuring that the engine still receives lubrication.
5. O-Rings and Seals:
   • These components ensure a tight fit between the filter and the engine, preventing oil leaks.
6. Threaded Base Plate:
   • A metal plate with holes that allows oil to flow into and out of the filter.
7. Pressure Relief Valve:
   • This valve regulates the oil pressure within the filter assembly, preventing damage to the engine or the filter.

3. How Does an Oil Filter Assembly Work?

The oil filter assembly operates as part of the engine’s lubrication system. Here’s a step-by-step breakdown:

1. Oil Circulation:
   • Engine oil is pumped from the oil pan through the lubrication system.
2. Filtration:
   • The oil enters the oil filter assembly through the inlet holes. As it flows through the filter element, contaminants such as metal particles, carbon deposits, and sludge are trapped.
3. Clean Oil Output:
   • The filtered oil exits the assembly and continues to circulate through the engine, lubricating moving parts and reducing friction.
4. Safety Mechanisms:
   • If the filter becomes clogged, the bypass valve opens, allowing unfiltered oil to circulate temporarily to prevent engine damage.
5. Post-Shutdown Retention:
   • The anti-drainback valve keeps oil in the filter when the engine is off, ensuring immediate lubrication during the next startup.

4. Types of Oil Filter Assemblies

1. Spin-On Filters:
   • These are the most common and feature a filter element encased in a metal housing. They are easy to replace by unscrewing and screwing on a new one.
2. Cartridge Filters:
   • These filters consist of a replaceable filter element without a metal housing. They are eco-friendly and becoming more popular in modern vehicles.
3. Magnetic Filters:
   • These incorporate a magnet to capture metal particles, providing an extra layer of protection.
4. Centrifugal Filters:
   • These use centrifugal force to separate contaminants from the oil. They are common in heavy-duty engines.

5. Benefits of an Oil Filter Assembly

The oil filter assembly provides numerous benefits, making it an indispensable part of any vehicle’s engine system:

1. Enhanced Engine Performance:
   • By removing contaminants, the oil filter ensures the engine operates smoothly and efficiently.
2. Extended Engine Life:
   • Clean oil reduces wear on moving parts, prolonging the engine’s lifespan.
3. Improved Fuel Efficiency:
   • A well-maintained oil filter reduces engine strain, leading to better fuel economy.
4. Reduced Emissions:
   • Cleaner oil helps the engine burn fuel more efficiently, lowering harmful emissions.
5. Cost Savings:
   • Preventing premature engine wear reduces repair and replacement costs over time.

6. Signs of a Failing Oil Filter Assembly

Recognizing the signs of a failing oil filter assembly is crucial to prevent engine damage. Common symptoms include:

1. Decreased Engine Performance:
   • A clogged filter restricts oil flow, causing the engine to run less efficiently.
2. Unusual Engine Noises:
   • Lack of proper lubrication may result in knocking or grinding sounds.
3. Oil Leaks:
   • Damaged seals or improper installation can lead to oil leakage around the filter assembly.
4. Low Oil Pressure:
   • A clogged filter can cause a drop in oil pressure, often indicated by a warning light on the dashboard.
5. Dirty or Dark Oil:
   • If the oil remains dirty even after a recent oil change, it could be a sign of a faulty filter.

7. Maintenance Tips for Oil Filter Assemblies

Proper maintenance of the oil filter assembly ensures optimal engine performance and longevity. Here are some tips:

1. Regular Oil and Filter Changes:
   • Follow the manufacturer’s recommendations for oil and filter replacement intervals, typically every 5,000 to 10,000 kilometers.
2. Use Quality Filters:
   • Invest in high-quality oil filters to ensure effective filtration and durability.
3. Inspect Seals and Gaskets:
   • Check for leaks and ensure all seals are intact during filter replacement.
4. Monitor Oil Levels:
   • Regularly check the oil level and quality to identify potential issues early.
5. Professional Servicing:
   • If you’re unsure about replacing the filter yourself, have it done by a professional mechanic.

8. Common Mistakes to Avoid

1. Using the Wrong Filter:
   • Always use a filter compatible with your vehicle’s engine specifications.
2. Over-Tightening:
   • Tightening the filter too much can damage seals and lead to leaks.
3. Skipping Filter Replacement:
   • Replacing the oil without changing the filter can cause the new oil to become contaminated.
4. Ignoring Warning Signs:
   • Neglecting symptoms of a failing oil filter can result in severe engine damage.

9. Conclusion

The oil filter assembly is a small yet vital component of any vehicle’s engine. Its primary role in maintaining clean oil flow directly impacts engine performance, fuel efficiency, and longevity. By understanding its functions, components, and maintenance requirements, you can ensure your vehicle runs smoothly and reliably.

Routine maintenance, including regular oil and filter changes, is the key to avoiding costly repairs and ensuring the health of your engine. Whether you’re a car owner or an automotive professional, the importance of a properly functioning oil filter assembly cannot be overstated.
