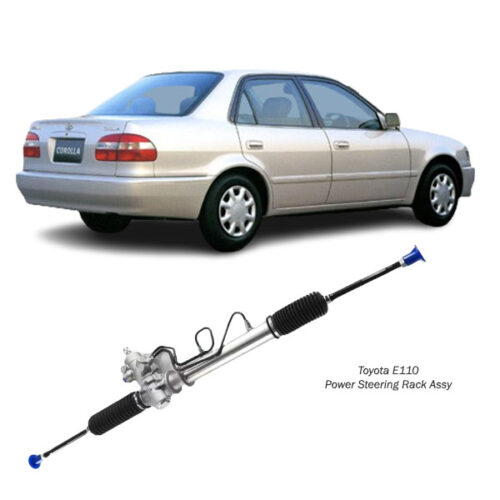

Toyota AE110 Power Steering Rack Assy 44250-12620

Get Toyota AE110 Power Steering Rack Assy 44250-12620 in Kenya

The power steering rack assembly is a critical component of modern vehicles, allowing for smooth and efficient steering. This assembly integrates several parts that work together to provide a responsive and controlled driving experience. Below, we delve into the design, functionality, benefits, and maintenance of the power steering rack assembly.

Understanding the Power Steering Rack Assembly

At its core, the power steering rack assembly translates the driver’s input from the steering wheel into the movement of the vehicle’s wheels. It reduces the physical effort required to steer, especially in heavier vehicles, and improves precision and control.

Components of a Power Steering Rack Assembly

1. Steering Rack: The central component, connected to the wheels via tie rods, which moves side to side to steer the wheels.
2. Pinion Gear: Works in tandem with the steering rack to convert rotational motion (from the steering wheel) into linear motion.
3. Hydraulic or Electric Assist Mechanism:
   • Hydraulic systems use pressurized fluid to amplify steering input.
   • Electric systems utilize an electric motor for assistance.
4. Tie Rods: Connect the steering rack to the wheels and facilitate wheel movement.
5. Seals and Bushings: Ensure smooth operation and prevent fluid leaks in hydraulic systems.
6. Steering Column: Links the steering wheel to the rack and pinion mechanism.

Types of Power Steering Systems

1. Hydraulic Power Steering (HPS):
   • Relies on hydraulic fluid pressurized by a pump, often driven by the engine.
   • Offers a smooth and predictable steering feel.
   • Requires regular maintenance of fluid levels and seals.
2. Electric Power Steering (EPS):
   • Powered by an electric motor instead of hydraulic fluid.
   • More energy-efficient and requires less maintenance.
   • Often features customizable steering modes for different driving conditions.
3. Electro-Hydraulic Power Steering (EHPS):
   • A hybrid system combining hydraulic and electric elements.
   • Provides the benefits of both systems, including energy efficiency and robust performance.

How the Power Steering Rack Assembly Works

1. Driver Input: When the steering wheel is turned, the steering column rotates the pinion gear.
2. Gear Interaction: The pinion gear engages with the teeth on the steering rack, causing the rack to move laterally.
3. Assist Mechanism:
   • In HPS, pressurized fluid assists the movement of the rack.
   • In EPS, an electric motor provides the required assistance.
4. Wheel Movement: The tie rods transmit the rack’s motion to the wheels, steering the vehicle.

Benefits of the Power Steering Rack Assembly

1. Ease of Steering:
   • Significantly reduces the effort needed to steer, especially at low speeds or when parking.
   • Improves accessibility for drivers of all physical capabilities.
2. Enhanced Precision:
   • Provides responsive and accurate steering for better control.
   • Essential for high-speed driving and tight cornering.
3. Driver Comfort:
   • Reduces fatigue during long drives by minimizing the physical strain of steering.
   • Dampens road vibrations and shocks transmitted through the steering wheel.
4. Improved Safety:
   • Allows for quick and controlled evasive maneuvers in emergencies.
   • Helps maintain stability during adverse driving conditions, such as slippery roads.
5. Adaptability:
   • Modern EPS systems can adjust steering effort based on speed and driving conditions, providing optimal performance.

Maintenance Tips for a Power Steering Rack Assembly

Proper care of the power steering rack assembly is essential for its longevity and performance. Neglecting maintenance can lead to steering issues, safety hazards, and costly repairs.

1. Regular Inspections:
   • Check for leaks in hydraulic systems, particularly around seals and hoses.
   • Look for signs of wear or damage in the steering rack and tie rods.
2. Fluid Maintenance (For Hydraulic Systems):
   • Ensure the power steering fluid is at the correct level and replace it as recommended by the manufacturer.
   • Use the correct type of fluid to avoid compatibility issues.
3. Monitor Steering Performance:
   • Pay attention to changes in steering effort or unusual noises, such as whining or clunking.
   • A pulling sensation while driving may indicate alignment issues or problems within the rack assembly.
4. Alignment and Suspension Checks:
   • Misaligned wheels can strain the steering system, leading to premature wear.
   • Regularly inspect and maintain suspension components for a smooth ride.
5. Address Issues Promptly:
   • Resolve any steering-related problems immediately to prevent further damage.
   • Ignoring symptoms like fluid leaks, excessive play in the steering wheel, or difficulty steering can lead to complete failure of the assembly.

Common Issues with Power Steering Rack Assemblies

1. Leaks:
   • Hydraulic systems are prone to fluid leaks, often caused by worn seals or damaged hoses.
   • Leaks can lead to a loss of steering assist, making the vehicle harder to control.
2. Excessive Play:
   • Worn or damaged components in the rack and pinion mechanism can cause looseness in the steering wheel.
   • This can compromise vehicle stability and control.
3. Noisy Operation:
   • Whining, grinding, or knocking noises may indicate issues with the pump, motor, or internal components of the rack.
   • Immediate diagnosis is necessary to avoid further damage.
4. Stiff Steering:
   • Often caused by low fluid levels, a failing pump, or issues within the electric motor in EPS systems.
   • Can make driving uncomfortable and unsafe.
5. Uneven Steering Effort:
   • A sign of internal wear or contamination in the hydraulic fluid.
   • May also result from alignment problems or worn tie rods.

Replacement and Repair Considerations

When replacing or repairing a power steering rack assembly, it is crucial to use high-quality parts and follow the manufacturer’s guidelines. Professional assistance is recommended for diagnosing and addressing issues to ensure the system operates correctly.

Factors to Consider:

• Compatibility: Ensure the replacement assembly matches the vehicle’s make, model, and power steering system type.
• Quality: Opt for OEM (Original Equipment Manufacturer) or high-quality aftermarket parts for reliability.
• Cost: While high-quality parts may be more expensive upfront, they save money in the long run by reducing the need for frequent repairs.

Conclusion

The power steering rack assembly is a cornerstone of modern automotive design, enabling effortless and precise steering. Whether hydraulic, electric, or hybrid, this system enhances comfort, safety, and overall driving experience. Regular maintenance, timely repairs, and the use of quality components are essential to keep the assembly functioning optimally. By understanding its importance and ensuring proper care, drivers can enjoy reliable and responsive steering for years to come.
