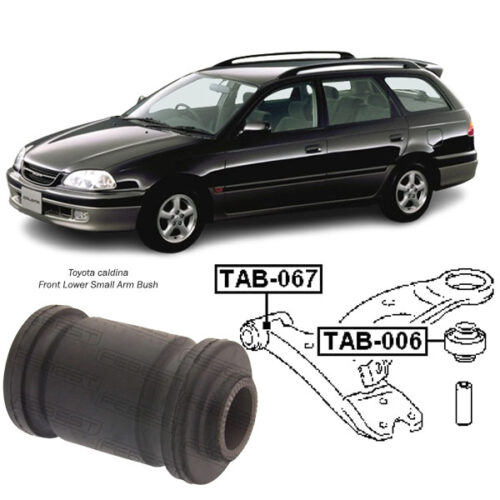

Toyota Caldina Front Lower Small Arm Bush TAB-067

Toyota Caldina Front Lower Small Arm Bush TAB-067

Brand: Febest

Part No: TAB-067

OEM No: 48069-20270

Fits: Caldina Corona Premio Gaia Ipsum Nadia

Cross Reference: 48068-20220/ 48068-20221/48654-20190

Original price was: KShs1,000.Current price is: KShs8.

Payment Methods:

Description

Get Toyota Caldina Front Lower Small Arm Bush TAB-067 in Kenya

A Front Lower Small Arm Bush (also known as a control arm bushing) is a critical component in a vehicle’s suspension system. It is a small but essential rubber or polyurethane bushing that connects the front lower control arm to the chassis or subframe.

🔧 Functions of a Front Lower Small Arm Bush:
✔️ Absorbs road shocks and vibrations.
✔️ Reduces metal-to-metal contact between suspension parts.
✔️ Maintains proper wheel alignment.
✔️ Enhances ride comfort and stability.
✔️ Prevents excessive movement and noise in the suspension system.

💡 A worn-out control arm bush can lead to poor handling, excessive noise, and uneven tire wear!


2. How Does a Front Lower Small Arm Bush Work? 🔄

The Front Lower Small Arm Bush acts as a cushion between the control arm and the chassis.

Step-by-Step Functionality:

1️⃣ The control arm connects the wheel hub to the vehicle’s frame or subframe.
2️⃣ The small arm bush absorbs shocks and prevents excessive movement.
3️⃣ When driving over bumps or potholes, the bushing allows controlled movement, preventing harsh vibrations.
4️⃣ During cornering or braking, the bush helps maintain proper suspension alignment.

💡 Without a good small arm bush, the control arm would rattle, causing instability and an uncomfortable ride!


3. Types of Front Lower Small Arm Bushes 🚘

There are different types of small arm bushes, depending on material and design.

1. Rubber Bushings 🏁

✔️ Common in factory-installed (OEM) setups.
✔️ Offer a soft and comfortable ride.
✔️ Absorb vibrations well.
✔️ Prone to wear, cracking, and deformation over time.

2. Polyurethane (PU) Bushings 🔵

✔️ More durable and resistant to wear than rubber.
✔️ Improve handling and cornering stability.
✔️ Resistant to oil, heat, and environmental damage.
✔️ Slightly stiffer, which may lead to a firmer ride.

3. Hydraulic Bushings 💧

✔️ Found in luxury and high-end vehicles.
✔️ Contain fluid-filled chambers for better vibration damping.
✔️ Expensive but provide exceptional comfort and noise reduction.

💡 For daily driving, rubber bushes are ideal. For performance and durability, polyurethane bushes are better!


4. Signs of a Worn-Out Front Lower Small Arm Bush 🚨

Over time, the bushings degrade due to heat, friction, and environmental factors.

Common Symptoms of a Bad Front Lower Small Arm Bush:

1. Clunking or Knocking Noise 🔊

❌ A worn bush allows the control arm to move excessively, causing noise over bumps.

2. Uneven Tire Wear 🏁

❌ Loose suspension components misalign the wheels, leading to abnormal tire wear.

3. Poor Steering Response 🎯

❌ A damaged bushing creates loose or unresponsive steering, making it harder to control the vehicle.

4. Vibrations & Harsh Ride 🌎

❌ Faulty bushings fail to absorb road shocks, making the ride rougher and noisier.

5. Vehicle Pulling to One Side 🔄

❌ Misaligned suspension due to bad bushings can cause the car to drift while driving straight.

🚨 Ignoring worn-out small arm bushes can lead to unsafe driving conditions and additional suspension damage!


5. How Long Do Front Lower Small Arm Bushes Last? ⏳

The lifespan of a small arm bush depends on driving conditions, material quality, and maintenance.

Estimated Lifespan:

✔️ Rubber Bushes: 50,000 – 80,000 km
✔️ Polyurethane Bushes: 100,000+ km

💡 Inspecting your control arm bushes every 30,000 km can help identify wear before it becomes a problem.


6. How to Check & Replace a Front Lower Small Arm Bush (DIY Guide) 🔧

Tools Needed 🛠️

✔️ Jack & jack stands
✔️ Wrenches & sockets
✔️ Pry bar
✔️ Press tool or bushing removal kit
✔️ New bushings


How to Inspect a Front Lower Small Arm Bush 🏁

1️⃣ Lift the Vehicle: Secure the car with jack stands for safety.
2️⃣ Locate the Lower Control Arm: It connects the wheel hub to the chassis.
3️⃣ Check for Cracks & Damage: Look for visible wear, cracks, or loose rubber in the bush.
4️⃣ Test for Movement: Use a pry bar to check if the control arm moves excessively.

🚗 Pro Tip: A healthy bushing should be firm and flexible, without excessive movement.


How to Replace a Front Lower Small Arm Bush 🏗️

1️⃣ Lift the Car & Secure It: Ensure safety by using jack stands.
2️⃣ Remove the Control Arm: Unbolt the control arm from the chassis and suspension components.
3️⃣ Press Out the Old Bushings: Use a bushing removal tool or press to remove the worn bushings.
4️⃣ Install New Bushings: Press the new small arm bush into place.
5️⃣ Reattach the Control Arm: Secure all bolts and ensure proper alignment.
6️⃣ Lower the Car & Test Drive: Check for noise, stability, and handling improvements.

🚗 Pro Tip: Apply lubrication to polyurethane bushings for smoother performance!


9. Final Thoughts: Are Front Lower Small Arm Bushes Important? 🎯

YES! Small arm bushes play a crucial role in:
✔️ Smooth handling & steering response.
✔️ Reduced noise & vibrations.
✔️ Longer suspension lifespan.
✔️ Improved ride comfort & safety.

🚗 Verdict: Replacing worn small arm bushes is an easy and cost-effective way to improve ride quality and vehicle stability!
