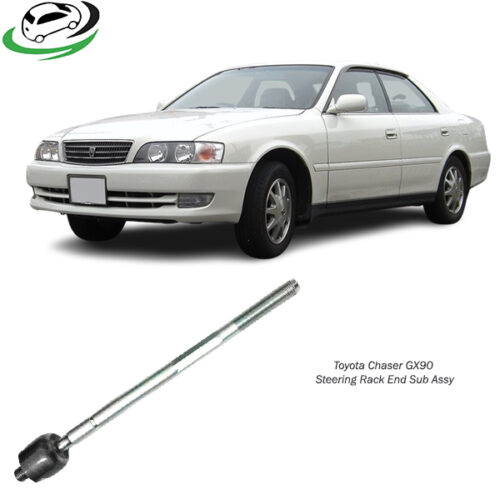

Toyota Chaser GX90 Steering Rack End Sub Assy 45503-29485

Get Toyota Chaser GX90 Steering Rack End Sub Assy 45503-29485 in Kenya

The Steering Rack End Sub Assembly is a crucial component in a vehicle’s steering system, connecting the steering rack to the wheels and playing a central role in translating the driver’s steering input into precise wheel movement. A properly functioning steering rack end assembly ensures smooth, responsive steering, stability, and overall handling of the vehicle. Let’s dive deeper into its structure, functions, maintenance requirements, benefits, and the importance of keeping it in good working order.

1. Overview of the Steering Rack End Sub Assembly

In modern vehicles, the steering system is primarily composed of a rack and pinion mechanism. This mechanism converts the rotational motion of the steering wheel into the linear motion needed to turn the wheels. The steering rack end assembly, often referred to as the rack end or inner tie rod, connects the steering rack to the tie rod ends that connect directly to the wheels. This link ensures that the wheels respond to the steering wheel’s movement, providing a seamless and controlled driving experience.

The steering rack end assembly consists of:

• The Steering Rack: A metal bar with teeth that engage with the pinion gear.
• The Inner Tie Rod: The part that links the steering rack to the outer tie rod.
• Ball Joint: Allows for movement and flexibility, ensuring that the tie rod can pivot as the vehicle’s suspension moves over uneven surfaces.
• Protective Dust Boot: Encases the ball joint to prevent dirt, dust, and moisture from entering and damaging the joint, helping prolong the life of the assembly.

2. Functions of the Steering Rack End Sub Assembly

The steering rack end assembly has several critical functions in the steering and suspension systems:

• Translating Steering Input: When the driver turns the steering wheel, the steering rack moves side-to-side, depending on the direction of the turn. This lateral motion is passed to the inner tie rods, which push or pull on the outer tie rods, causing the wheels to turn in the intended direction.
• Maintaining Wheel Alignment: Properly functioning rack end assemblies keep the wheels aligned by ensuring that the steering rack’s movement is transferred accurately to the wheels. This alignment is crucial for handling, tire longevity, and fuel efficiency.
• Absorbing Impact and Road Vibrations: Since the steering rack end assembly connects the steering rack to the wheels, it absorbs some of the road’s shocks, protecting the rack and pinion from excessive wear.
• Allowing for Suspension Flexibility: The ball joints within the inner and outer tie rods allow the wheels to move independently over uneven terrain while staying connected to the steering system. This flexibility reduces wear on the steering components and ensures a smoother ride.

3. Signs of a Worn or Damaged Steering Rack End Sub Assembly

Over time, the steering rack end assembly can wear out due to regular use, exposure to the elements, and road conditions. Here are some common symptoms of a failing or worn rack end assembly:

• Loose or Wobbly Steering: Worn rack end assemblies can cause play in the steering wheel, making it feel loose or unresponsive.
• Uneven or Accelerated Tire Wear: A failing rack end assembly affects wheel alignment, causing uneven tire wear and often leading to premature tire replacement.
• Steering Wheel Vibration: Excessive wear in the rack end can cause the steering wheel to vibrate, especially at higher speeds or while turning.
• Clunking or Knocking Noises: Damaged rack ends can create a clunking or knocking sound when turning the steering wheel or driving over rough terrain.
• Vehicle Pulling to One Side: If the vehicle pulls to one side while driving straight, it can be a sign of misalignment due to a faulty steering rack end assembly.

4. Benefits of a Well-Maintained Steering Rack End Sub Assembly

Maintaining the steering rack end assembly in good condition offers several benefits:

• Improved Steering Precision: A well-functioning rack end assembly ensures that steering inputs are translated precisely to the wheels, providing accurate and responsive handling.
• Enhanced Vehicle Stability and Safety: Steering stability is crucial for safe driving. Properly aligned and maintained rack ends improve overall stability, reducing the risk of accidents.
• Reduced Tire Wear: Proper alignment prevents uneven tire wear, saving money on replacements and maintaining tire performance for a longer time.
• Fuel Efficiency: When wheels are aligned correctly, the vehicle experiences less rolling resistance, which can contribute to improved fuel efficiency.
• Smooth, Comfortable Ride: Functional rack end assemblies help absorb road shocks, resulting in a smoother ride and reducing stress on other suspension components.

5. Maintenance Tips for the Steering Rack End Sub Assembly

To ensure longevity and performance, regular maintenance and inspection of the steering rack end assembly are essential:

• Regular Inspections: Routine visual inspections help identify wear, cracks, or leaks in the dust boot and ball joint. Include steering rack inspection during routine servicing, especially if unusual symptoms arise.
• Protective Dust Boot Care: The dust boot is essential for protecting the ball joint from dirt and moisture. Damaged or cracked dust boots should be replaced immediately to prevent further damage to the rack end assembly.
• Lubrication: While many modern rack ends are sealed and don’t require lubrication, if the components are serviceable, ensure they are greased during maintenance to prevent metal-on-metal wear.
• Wheel Alignment Check: Regular alignment checks ensure that the steering rack and tie rods are functioning correctly, helping to identify issues early on.
• Avoiding Rough Road Conditions: Heavy impacts from potholes or curbs can damage the rack end assembly. Drive cautiously, especially in poor road conditions, to minimize stress on steering components.

6. Replacing the Steering Rack End Sub Assembly

If the rack end assembly is worn beyond repair, replacement is necessary to restore safe handling and alignment. Here’s what’s involved in replacing a steering rack end assembly:

• Diagnosing the Need for Replacement: If symptoms such as steering looseness, vibrations, or clunking noises persist, a mechanic will inspect the steering rack and tie rods to determine if replacement is required.
• Professional Installation Recommended: While some DIY mechanics may attempt replacement, it is recommended to have a certified technician perform the job. They have the necessary tools and expertise to ensure a precise installation.
• Wheel Alignment: After replacing the rack end assembly, a professional alignment is necessary to restore proper wheel alignment. Misalignment can cause rapid tire wear, poor handling, and reduced fuel efficiency.
• Cost of Replacement: Replacing a steering rack end assembly generally costs between $150 to $400, including parts and labor. Prices may vary depending on the vehicle make and model.

7. Choosing Quality Steering Rack End Components

When it comes time to replace the steering rack end assembly, selecting high-quality components is essential for durability and performance:

• Original Equipment Manufacturer (OEM) Parts: OEM parts are designed to the manufacturer’s specifications, ensuring compatibility and reliability. They are often more expensive than aftermarket options but offer better longevity.
• Reputable Aftermarket Brands: If opting for aftermarket parts, select reputable brands that offer high-quality materials and warranties. Many well-known brands provide reliable, cost-effective alternatives to OEM parts.
• Durability and Material: Look for rack ends made from robust materials such as hardened steel or high-strength alloys. Quality ball joints and dust boots also extend the part’s lifespan and resist wear.

8. Signs It’s Time to Replace the Steering Rack End Sub Assembly

To avoid compromising safety, here are signs that it might be time to replace the steering rack end assembly:

• Persistent Alignment Issues: If you’re unable to maintain proper wheel alignment or if alignment issues frequently return, it may be due to a worn rack end.
• Inconsistent Steering Feel: Any increase in play or looseness in the steering wheel, particularly if it worsens over time, may indicate a worn rack end.
• Fluid Leaks: Leaks around the steering rack end can signal that the seals or boots have degraded and that the inner tie rods may need replacement.
• Constant Vibration in Steering Wheel: Continuous vibrations or jolts felt in the steering wheel may indicate wear in the steering rack ends or other suspension issues.

9. Conclusion

The steering rack end sub assembly (R/L) is an integral component of your vehicle’s steering and suspension system, directly influencing vehicle handling, alignment, and overall ride quality. By translating the driver’s input into precise wheel movement, the rack end ensures safe and responsive handling on the road. Regular inspection, maintenance, and timely replacement of worn components are crucial to preserve optimal performance and prevent further damage to the steering and suspension system. Ensuring high-quality replacements and proper installation will contribute to vehicle safety, comfort, and driving enjoyment, making the steering rack end assembly a component well worth attention in any vehicle maintenance routine.
