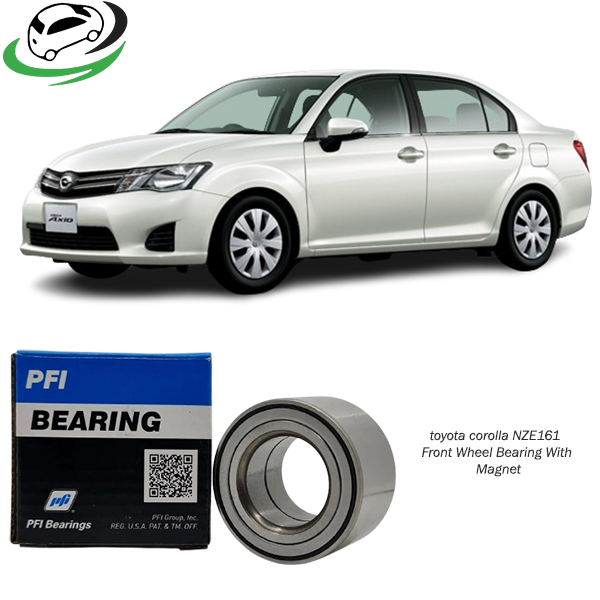

Toyota Corolla NZE161 Front Wheel Bearing With Magnet PW40750039CSM

Get Toyota Corolla NZE161 Front Wheel Bearing With Magnet PW40750039CSM in Kenya

The front wheel bearing with a magnet is a specialized automotive component integral to modern vehicle safety and stability systems. Often used in vehicles equipped with anti-lock braking systems (ABS) and traction control, this type of bearing incorporates a magnetic encoder ring that interacts with wheel speed sensors to provide real-time data. This guide will cover the front wheel bearing with a magnet’s purpose, types, benefits, symptoms of failure, maintenance, and installation considerations.

1. Purpose and Function of a Front Wheel Bearing with Magnet

The primary function of a wheel bearing is to allow the wheel to rotate smoothly around the axle with minimal friction. Bearings support the vehicle’s weight and absorb radial and axial loads, contributing to overall stability. When fitted with a magnetic encoder, the front wheel bearing also plays a vital role in:

• ABS Functionality: The embedded magnetic encoder interacts with a sensor that sends wheel speed data to the vehicle’s ABS control module. This system monitors each wheel’s rotation, modulating brake pressure to prevent wheel lockup during hard braking, thereby enhancing driver control.
• Traction Control: Magnetic encoder bearings assist in traction control by detecting wheel slip, which can occur during rapid acceleration or on slippery surfaces. When wheel slip is detected, the control system adjusts power distribution to prevent skidding.
• Stability Control Systems: These bearings contribute to vehicle stability systems by providing accurate wheel speed data, helping the vehicle maintain balance during sharp turns, abrupt maneuvers, and other situations where stability is crucial.

2. Components and Design of a Magnetic Wheel Bearing

The front wheel bearing with a magnet is composed of several key elements:

• Outer and Inner Rings (Races): These rings provide a rolling surface for the bearing’s balls or rollers. The races are made from hardened steel for durability and precision.
• Rolling Elements: Inside the bearing, either balls or cylindrical rollers facilitate smooth rotation by reducing friction. They are lubricated with high-quality grease to prevent wear and corrosion.
• Magnetic Encoder Ring: The magnetic ring is embedded into the seal or integrated directly onto the bearing. It features alternating magnetic poles, creating a magnetic field detectable by sensors.
• Seals and Grease: High-quality seals prevent contaminants like dirt and water from entering the bearing, ensuring longevity and maintaining lubrication integrity.

This magnetic encoder design makes the bearing not only a support component but also a crucial part of the vehicle’s electronic systems.

3. Types of Front Wheel Bearings with Magnetic Encoders

There are several types of wheel bearings that incorporate magnetic encoders. Each type offers varying levels of performance, longevity, and application suitability.

a) Ball Bearings with Magnetic Encoders

Ball bearings are commonly used in passenger vehicles and are known for their versatility and durability. The ball design offers smooth rotational movement, ideal for vehicles requiring less load-bearing.

b) Tapered Roller Bearings with Magnetic Encoders

Tapered roller bearings handle both axial and radial loads effectively, making them suitable for heavier vehicles and trucks. Their design supports a higher load capacity, providing durability for vehicles under constant strain.

c) Hub Bearings with Integrated Magnetic Encoders

Hub bearings are pre-assembled units that include the bearing, magnetic encoder, and sometimes even the mounting flange. They simplify installation and ensure optimal alignment, making them popular in modern vehicles with complex braking and stability systems.

4. Benefits of Using Magnetic Encoder Bearings

Front wheel bearings with magnetic encoders offer various advantages:

• Enhanced Safety: By facilitating ABS and stability control, these bearings significantly improve vehicle safety, reducing the risk of skidding and loss of control.
• Improved Handling: Magnetic encoder bearings provide accurate feedback to stability and traction control systems, helping drivers maintain control during turns, acceleration, and braking.
• Increased Longevity: Most magnetic encoder bearings are sealed, which helps prevent contamination and ensures the bearing remains lubricated, extending the bearing’s service life.
• Better Fuel Efficiency: These bearings reduce friction and improve rotational efficiency, which can have a marginal but positive effect on fuel economy.

5. Symptoms of a Failing Front Wheel Bearing with Magnetic Encoder

Over time, even high-quality wheel bearings can wear out, especially when exposed to extreme conditions. Recognizing the signs of failure can prevent further damage and maintain vehicle safety.

a) Unusual Noises

A worn bearing may produce grinding, humming, or growling noises that increase with speed. These sounds usually come from the wheel area and indicate excessive friction.

b) ABS Warning Light

When a bearing with a magnetic encoder fails, the ABS system may receive inaccurate wheel speed data or no data at all. This will trigger the ABS warning light, signaling that the braking system may not function correctly.

c) Uneven Tire Wear

Faulty bearings can cause the wheel to wobble or rotate unevenly, leading to abnormal tire wear patterns.

d) Vibration or Shuddering

A damaged bearing can cause vibrations in the steering wheel or throughout the vehicle. This is especially noticeable at higher speeds.

e) Poor Handling and Stability

A failing bearing may result in poor handling, making the vehicle feel loose or difficult to control, particularly during turns.

6. Maintenance of Front Wheel Bearings with Magnetic Encoders

Proper maintenance can prolong the life of a magnetic wheel bearing:

a) Regular Inspections

Routine inspections allow for early detection of wear or damage. Check for unusual noises or any play in the wheel assembly by lifting the vehicle and wiggling the wheel side-to-side.

b) Avoiding Overloading

Avoid overloading the vehicle, as excess weight puts strain on the wheel bearings, accelerating wear.

c) Protecting from Water and Debris

Avoid driving through deep water or extremely dusty areas. Water and dirt can penetrate even sealed bearings, leading to corrosion and contamination.

d) Timely Replacement

Replacing a worn bearing promptly can prevent additional damage to surrounding components, such as the wheel hub, axle, and suspension.

7. Replacing a Front Wheel Bearing with Magnetic Encoder

Replacing a front wheel bearing with a magnetic encoder involves several steps. This is a task best suited to a professional, as improper installation can lead to premature bearing failure.

a) Required Tools

• Jack and jack stands
• Socket set and wrenches
• Hub puller or bearing press
• Torque wrench

b) Replacement Steps

1. Lift the Vehicle: Use a jack to lift the vehicle and secure it with jack stands. Make sure the vehicle is stable before working.
2. Remove the Wheel: Loosen and remove the lug nuts to take off the wheel.
3. Detach the Brake Caliper and Rotor: Remove the brake caliper and rotor to access the hub assembly. Make sure to support the caliper to avoid stressing the brake hose.
4. Remove the Old Bearing Assembly: With the hub exposed, unbolt the old bearing assembly from the steering knuckle using a hub puller or bearing press if necessary.
5. Install the New Bearing: Position the new bearing assembly, aligning the magnetic encoder side according to the ABS sensor. Torque the bolts to the manufacturer’s specifications.
6. Reinstall the Brake Components and Wheel: Reattach the rotor, caliper, and finally the wheel. Tighten all components to specified torque levels.
7. Test Drive the Vehicle: After installation, conduct a test drive to ensure there are no noises, vibrations, or warning lights, indicating proper installation.

8. Importance of Quality in Magnetic Encoder Bearings

Selecting high-quality magnetic encoder bearings is essential for vehicle safety and performance. OEM (Original Equipment Manufacturer) parts are typically recommended, as they ensure compatibility and longevity. High-quality bearings are designed to withstand harsh conditions, reduce wear on the ABS sensor, and provide accurate speed data.

9. Conclusion

The front wheel bearing with a magnet is a complex component that serves both a mechanical and electronic function in modern vehicles. Its role in supporting the wheel, minimizing friction, and interacting with ABS and stability systems makes it a vital part of a vehicle’s safety features. Regular maintenance, early detection of wear, and timely replacement of the magnetic encoder bearing are crucial for safe and smooth driving. By understanding its importance, vehicle owners can ensure the longevity of their bearings, maximize driving comfort, and maintain optimal vehicle performance.
