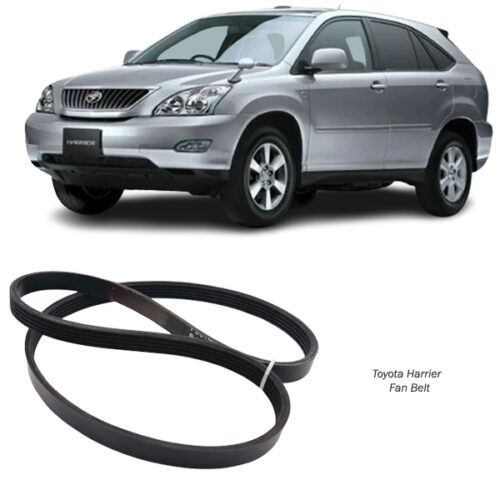

Toyota Harrier ACU30 Fan Belt 7PK1940

Get Toyota Harrier ACU30 Fan Belt 7PK1940 in Kenya

A fan belt, also known as a serpentine belt or drive belt, is a critical component of an internal combustion engine. It plays an essential role in driving multiple accessories, including the alternator, water pump, air conditioning compressor, and power steering pump. In this guide, we’ll explore the fan belt’s functions, benefits, maintenance tips, and signs of wear to ensure optimal vehicle performance.

What is a Fan Belt?

A fan belt is a flexible, rubber-based looped component designed to transfer rotational force from the engine’s crankshaft pulley to various engine accessories. Modern vehicles primarily use serpentine belts, which are single, continuous belts that drive multiple components. Older vehicles may have individual fan belts for specific functions.

Functions of a Fan Belt

The fan belt’s primary purpose is to ensure the efficient operation of vital engine systems by transferring mechanical power. Here’s a breakdown of its key functions:

1. Powering the Alternator:
   • The alternator generates electricity to charge the battery and power the vehicle’s electrical systems. Without a functioning fan belt, the alternator cannot operate, leading to battery depletion.
2. Driving the Water Pump:
   • In many vehicles, the fan belt powers the water pump, which circulates coolant through the engine to prevent overheating. A broken belt can cause engine overheating within minutes.
3. Operating the Air Conditioning Compressor:
   • The fan belt drives the compressor, enabling the air conditioning system to cool the vehicle’s interior. A malfunctioning belt can disrupt this function, especially in hot climates.
4. Powering the Power Steering Pump:
   • The belt supplies power to the steering pump, which aids in smooth and effortless steering. Without it, steering becomes challenging, especially at low speeds.
5. Driving the Cooling Fan (in older vehicles):
   • In older models, the belt directly drives the engine’s cooling fan, ensuring proper airflow to regulate engine temperature.

Benefits of a Fan Belt

A properly functioning fan belt offers numerous advantages:

1. Efficient Engine Operation:
   • It synchronizes the performance of engine accessories, ensuring smooth operation and optimal vehicle performance.
2. Enhanced Fuel Efficiency:
   • A properly tensioned and well-maintained belt minimizes energy losses, contributing to better fuel economy.
3. Reduced Component Wear:
   • By ensuring consistent power delivery, the fan belt reduces strain on connected components, prolonging their lifespan.
4. Improved Comfort:
   • Functional accessories like air conditioning and power steering improve driver and passenger comfort.
5. Cost Savings:
   • Regular maintenance of the fan belt helps avoid costly repairs caused by component failure or engine damage due to overheating.

Materials and Construction

Fan belts are typically made from durable materials designed to withstand high temperatures and mechanical stress. Common materials include:

1. EPDM (Ethylene Propylene Diene Monomer):
   • This synthetic rubber is resistant to heat, oil, and wear, making it the standard for modern belts.
2. Reinforced Fibers:
   • Internal reinforcement using fibers or cords adds tensile strength and flexibility, enabling the belt to handle heavy loads.
3. Multi-Ribbed Design:
   • Most modern fan belts have a multi-ribbed surface, which increases surface contact with pulleys, improving grip and reducing slippage.

Signs of a Worn or Failing Fan Belt

A failing fan belt can lead to severe engine damage or accessory failure. Watch out for these warning signs:

1. Squealing or Chirping Noises:
   • Unusual noises from the engine bay often indicate a loose or worn belt.
2. Cracks, Fraying, or Glazing:
   • Visible wear, such as cracks or a shiny, glazed surface, suggests the belt is nearing the end of its lifespan.
3. Difficulty Steering:
   • A failing belt may cause reduced power steering assistance, making the steering wheel harder to turn.
4. Battery Warning Light:
   • If the alternator isn’t receiving power, the battery light may illuminate on the dashboard.
5. Engine Overheating:
   • A malfunctioning belt can prevent the water pump from operating, leading to overheating.
6. Air Conditioning Failure:
   • If the belt fails, the air conditioning system may stop cooling effectively.

Maintenance Tips for a Fan Belt

Regular maintenance is key to extending the fan belt’s life and ensuring vehicle reliability. Follow these tips:

1. Inspect Regularly:
   • Check the belt for signs of wear, cracks, or fraying during routine vehicle maintenance.
2. Check Tension:
   • Ensure the belt is properly tensioned. A loose belt can slip, while an overtightened belt can cause premature wear on pulleys and accessories.
3. Replace When Necessary:
   • Replace the fan belt as per the manufacturer’s recommendations, typically every 50,000 to 100,000 kilometers or sooner if wear is evident.
4. Avoid Fluid Contamination:
   • Keep the belt free from oil, coolant, or other contaminants, which can degrade the rubber material.
5. Inspect Pulleys and Tensioners:
   • Ensure that pulleys and automatic tensioners are in good condition to prevent belt misalignment or slippage.

Replacement Process

Replacing a fan belt is a straightforward process but should be done carefully to avoid damaging surrounding components. Here’s an overview:

1. Preparation:
   • Disconnect the battery to avoid electrical shocks.
   • Consult the vehicle’s manual for belt routing diagrams.
2. Release Tension:
   • Use a wrench or tensioner tool to relieve tension on the belt.
3. Remove the Old Belt:
   • Carefully slide the belt off the pulleys, noting the routing.
4. Install the New Belt:
   • Position the new belt on the pulleys, ensuring it follows the correct routing.
5. Adjust Tension:
   • If the vehicle uses an automatic tensioner, it will self-adjust. For manual tension systems, set the tension according to specifications.
6. Test the System:
   • Reconnect the battery, start the engine, and observe the belt for proper operation.

Common Fan Belt Issues

1. Misalignment:
   • Misaligned pulleys can cause uneven wear or belt slippage.
2. Belt Slippage:
   • A loose belt may slip, reducing power delivery to accessories.
3. Tensioner Failure:
   • A worn tensioner may fail to maintain proper belt tension, leading to premature wear.
4. Contamination:
   • Exposure to fluids can weaken the belt material, reducing its lifespan.

Conclusion

The fan belt is a small yet essential component that ensures the smooth operation of critical engine accessories. Regular inspections, proper tensioning, and timely replacements are vital to maintaining its functionality. By taking care of the fan belt, you not only enhance your vehicle’s performance and reliability but also avoid costly repairs down the road. Always consult your vehicle’s manual or a professional mechanic for guidance specific to your car’s make and model.
