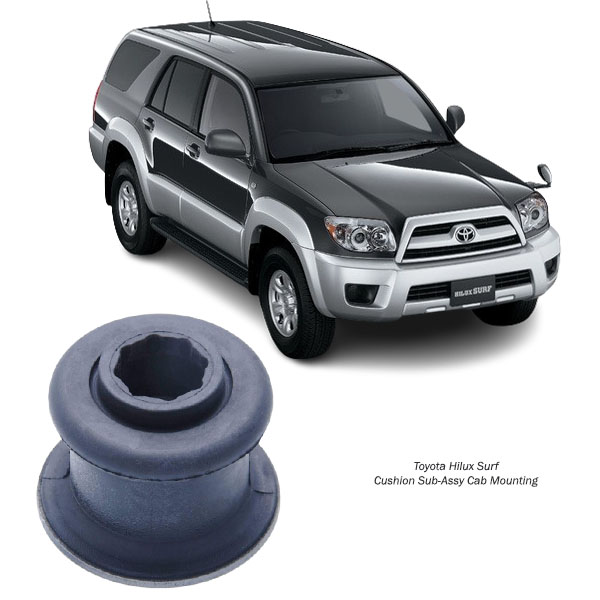

Toyota Hilux Surf 215 Cushion Sub-Assy Cab Mounting TSB-123

When you’re gliding over bumpy roads, turning through rugged corners, or even idling on rough terrain, what keeps everything from rattling your teeth or shaking the cabin like a can of coins? That silent hero behind the scenes is the Cushion Sub-Assy Cab Mounting — a core element that protects comfort, reduces vibration, and keeps the structure firmly in place. 💪🔩

Let’s dive into what makes this part essential for everyday comfort, cabin durability, and overall driving experience.

🧩 What Is the Cushion Sub-Assy Cab Mounting?

At first glance, this component might look like a simple rubber donut or pad. But it’s actually a highly engineered assembly that connects the vehicle’s cabin to its frame or chassis. Its purpose? To cushion the cabin against shocks, vibrations, and noise — and keep it securely mounted.

The term breaks down like this:

• Cushion – The soft, absorbent part that dampens impact

• Sub-Assy (Sub-Assembly) – A smaller, modular unit within the full mounting system

• Cab Mounting – The point where the body (or cab) connects to the frame

Together, the Cushion Sub-Assy Cab Mounting absorbs road vibrations, smooths out harsh bumps, and ensures the structure remains secure and silent. 🧘‍♂️

🛠️ What Does It Actually Do?

The Cushion Sub-Assy plays a multi-functional role, affecting both comfort and performance. Here’s what it handles on a daily basis:

1. Vibration Isolation – Reduces the road vibrations that would otherwise transfer into the cabin

2. Shock Absorption – Dampens the sudden jolts from potholes, speed bumps, and rough roads

3. Noise Reduction – Minimizes the hum, rattle, and buzz from mechanical components

4. Structural Support – Holds the cabin securely in place while allowing controlled movement

5. Alignment Maintenance – Ensures the body and frame stay properly aligned over time

Without this cushion assembly, every bump would feel like a punch, and cabin components would shake loose over time. 🛡️🔧

🧠 How Does It Work?

The Cushion Sub-Assy functions like a mini shock absorber, sitting between the cabin and the chassis frame.

Here’s a simplified breakdown:

1. The cabin sits on mounting points connected to the chassis

2. Between these points is the cushion sub-assembly

3. As the chassis flexes, twists, or absorbs road forces, the cushion absorbs the resulting movement

4. This prevents harsh impact from reaching the cabin and its occupants

It allows limited flex and movement, enough to absorb road forces, without compromising stability or safety. 📏🌀

🧱 What Is It Made Of?

This small component is crafted from durable, flexible, and high-strength materials, often combining:

• 🧽 Natural or synthetic rubber – Offers the flexibility needed to absorb movement

• 🪵 Polyurethane or elastomer compounds – Long-lasting, weather-resistant

• 🧊 Steel inserts or sleeves – Provide structural support and hold the assembly in place

• 🔧 Washers, bolts, or spacers – Complete the mounting setup

The result is a durable cushion that withstands years of pressure, movement, and environmental exposure — while staying firm and functional.

📉 Signs of Worn-Out Cab Mount Cushions

Like any wear-and-tear component, cab mounting cushions degrade over time due to heat, load, moisture, and vibration. Here’s how you can spot trouble:

• 🫨 Increased cabin vibration

• 📦 Unusual rattling or knocking noises from beneath the floor

• 🛞 Uneven or rough ride quality

• 🪵 Visible cracks or deformation in the rubber

• 📐 Misalignment between the cab and chassis

• ⚙️ Metal-to-metal contact at mount points (a serious red flag)

Worn-out cab mounts don’t just affect comfort — they can lead to damage to the frame or cabin, and even stress-related cracking over time. 🚫

🔁 When Should You Replace It?

There’s no fixed lifespan, but here are general guidelines:

• ⏱️ Replace every 80,000–150,000 km under normal conditions

• 🛤️ More often if exposed to off-road, construction, or industrial use

• 🔧 Replace immediately if cracks, hardening, or sagging are visible

Replacing them in pairs or full sets ensures consistent performance and alignment across the frame. 🧰⚖️

⚒️ Installation & Fitment Tips

Swapping out cab mounting cushions isn’t just plug-and-play — it involves careful alignment and secure fastening. Here’s what matters:

1. 🛑 Always support the cabin before removing mounts

2. 🧼 Clean all mounting surfaces

3. 🔩 Use torque specs to avoid under-tightening or crushing the cushion

4. ⚖️ Replace in matched sets for even weight distribution

5. 🧰 Check related components like bolts, washers, and isolators

Correct installation = quiet, comfortable, and stress-free performance for the long haul.

🧘 Benefits of a Healthy Cushion Sub-Assy

Keeping this part in top shape offers big benefits:

• 🧏‍♂️ Quieter cabin – Say goodbye to annoying rattles

• 🛏️ Smoother ride – Reduced jolting and shaking

• 🧱 Structural integrity – No more unnecessary stress on cab or chassis

• 🧼 Lower maintenance – Protects wiring, fasteners, and interior fittings from vibration

• 🚫 Prevents long-term fatigue on frame welds and joints

Think of it as giving your cabin a protective bubble from the chaos of the road. 🛡️

🆚 Cushion vs. Full Mount Assembly

The Cushion Sub-Assy is part of a larger cab mount system. While it’s sometimes replaced alone, it’s often swapped out with:

• 🔧 Complete mount assemblies (including brackets and bolts)

• 🧰 Vibration isolators or dampeners

• 🔩 Bolt kits or bushing kits

Using matched and quality parts helps preserve balance, alignment, and vibration resistance.

🌍 Where It Really Shines

This component becomes even more essential in:

• 🚚 Heavy-load operations (cargo, towing, transport)

• 🛤️ Off-road or unpaved environments

• 🌦️ Extreme weather or terrain conditions

• 🏗️ Industrial or agricultural settings

In these scenarios, it’s the first line of defense for the cabin against harsh environmental forces. 💼🌪️

🌟 Final Thoughts

The Cushion Sub-Assy Cab Mounting may not be glamorous, but it’s a cornerstone of cabin comfort, durability, and ride quality. It’s the part that keeps everything quiet, smooth, and structurally sound — silently absorbing the harshness of the road beneath.

From daily commutes to off-road adventures, from hauling loads to long-distance driving — this humble cushion keeps the structure aligned, the noises away, and the comfort consistent. 🧘‍♂️💼🔧

So next time you enjoy a peaceful ride through uneven roads, remember: it’s the Cushion Sub-Assy doing the heavy lifting underneath. Treat it well, inspect it often, and replace when needed — your cabin and passengers will thank you.
