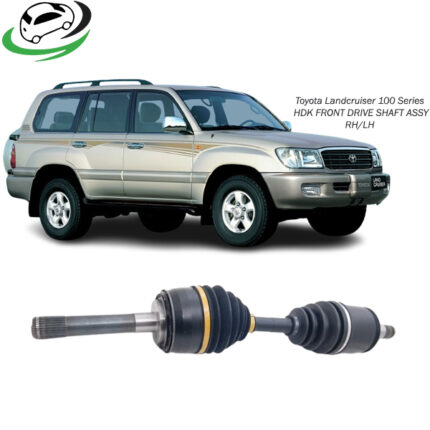

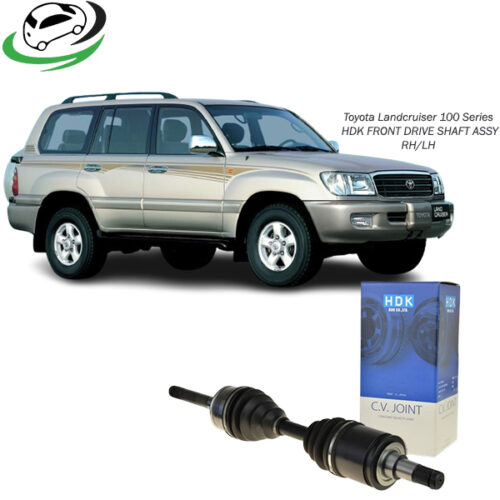

Toyota Land Cruiser 100 Series HDK Drive Shaft Assy 43430-60040

Get Toyota Land Cruiser 100 Series HDK Drive Shaft Assy 43430-60040

A drive shaft, also known as a propeller shaft or simply a prop shaft, is a key component in vehicles, particularly in 4WD vehicles like the Toyota Land Cruiser 100 Series. The drive shaft transmits torque from the transmission or transfer case to the front or rear differential, which then distributes that power to the wheels. In the case of a 4WD system, the front and rear wheels both need power, requiring multiple drive shafts to facilitate the flow of power from the engine to the wheels.

The Toyota Land Cruiser 100 Series is a large, durable SUV known for its off-road capabilities. The vehicle uses heavy-duty components to manage the substantial torque and power generated by its engine. The HDK Drive Shaft Assembly is a high-quality replacement part designed to handle the rigorous demands of the Land Cruiser 100 Series, ensuring smooth power delivery and longevity even in harsh driving conditions.

Overview of the Drive Shaft’s Components

The drive shaft assembly consists of several key components that work together to transfer power:

1. Shaft Tube: The primary component is the shaft tube, typically made from steel or aluminum to provide the necessary strength while keeping weight to a minimum. The tube connects the transmission or transfer case to the differential, transmitting torque as it rotates. Steel drive shafts offer high durability, while aluminum shafts are lighter and can reduce rotational mass for better fuel efficiency.
2. Universal Joints (U-joints): Universal joints are critical in allowing the drive shaft to rotate while accommodating the different angles and movements of the vehicle’s suspension. U-joints are typically located at both ends of the drive shaft, connecting it to the transmission and the differential. These joints are designed to rotate at multiple angles, ensuring smooth power transfer even as the vehicle encounters bumps and turns.
3. Slip Yoke: The slip yoke allows the drive shaft to change length as the vehicle’s suspension moves. This is especially important in off-road conditions where the terrain is uneven, causing the distance between the transmission and differential to change. The slip yoke ensures that the drive shaft can handle these changes without becoming dislodged or damaged.
4. Center Bearing (if applicable): Some drive shafts, particularly on longer vehicles like the Land Cruiser, use a center bearing to support the drive shaft and reduce vibrations. This bearing is mounted to the chassis and helps the drive shaft remain stable, especially under heavy loads or when driving at high speeds.
5. Flange Yokes: Flange yokes are used to attach the drive shaft to the transmission and the differential. These are typically bolted on and are designed to handle high amounts of torque, ensuring a secure connection.

Functions of the HDK Drive Shaft Assembly

The drive shaft assembly plays several critical roles in the performance and safety of the Toyota Land Cruiser 100 Series:

1. Power Transmission: The primary function of the drive shaft is to transfer torque from the engine, through the transmission, to the differential, and ultimately to the wheels. In a 4WD system, this power must be delivered to both the front and rear wheels, which requires separate front and rear drive shafts.
2. Accommodating Suspension Movement: As the vehicle travels over uneven terrain, the suspension moves up and down. The drive shaft must accommodate these changes in distance between the transmission and the wheels without affecting the power transfer. The universal joints and slip yoke are key in ensuring smooth operation during suspension movement.
3. Handling High Torque Loads: The Toyota Land Cruiser 100 Series is designed for both on-road and off-road performance, often subjected to heavy loads and tough conditions. The HDK drive shaft assembly is designed to handle high torque loads, making it a suitable replacement or upgrade for the vehicle. It ensures that the Land Cruiser can handle demanding off-road conditions without experiencing failure in the drivetrain.
4. Minimizing Vibrations: Drive shafts can sometimes be a source of vibrations, especially at high speeds or under heavy loads. The HDK Drive Shaft Assembly is balanced to minimize vibrations, ensuring a smoother ride and reducing the risk of damage to other drivetrain components.

Benefits of the HDK Drive Shaft Assembly for the Toyota Land Cruiser 100 Series

1. Durability: The HDK drive shaft assembly is built using high-quality materials that are designed to withstand the tough conditions of off-road driving. Whether it’s deep mud, rocky terrain, or steep inclines, the drive shaft must handle these challenges without breaking or wearing out prematurely. The steel or aluminum construction ensures longevity and reliability.
2. Smooth Operation: With precise engineering, the HDK drive shaft assembly minimizes vibrations and ensures smooth power transfer. This results in a more comfortable ride and reduces the likelihood of damage to other components in the drivetrain, such as the transmission or differential.
3. Easy Installation: HDK drive shafts are designed as direct replacements for the original drive shafts, meaning they fit perfectly with the existing drivetrain components. This makes installation easier and reduces the time required for repairs or replacements.
4. Enhanced Performance: By replacing a worn-out or damaged drive shaft with the HDK assembly, you can restore or even enhance the performance of your Toyota Land Cruiser 100 Series. A properly functioning drive shaft ensures that power is efficiently transmitted to the wheels, improving overall vehicle performance, especially in off-road conditions.

Maintenance and Tips for Longevity

To maximize the lifespan of your HDK drive shaft assembly, regular maintenance is essential. Here are some tips to ensure optimal performance and longevity:

1. Regular Inspection: Periodically check the drive shaft for signs of wear, such as cracks, dents, or excessive play in the U-joints. Early detection of potential issues can prevent more serious damage down the line.
2. Lubrication: Universal joints and slip yokes should be regularly lubricated to prevent wear and reduce friction. Over time, these components can dry out, leading to increased wear and the potential for failure.
3. Balancing: If you notice unusual vibrations while driving, the drive shaft may need to be rebalanced. A balanced drive shaft is essential for smooth operation and to avoid unnecessary strain on other drivetrain components.
4. Avoid Overloading: While the Toyota Land Cruiser 100 Series is built for heavy-duty use, consistently overloading the vehicle can put additional strain on the drive shaft. Try to stay within the recommended load limits to prevent premature wear and damage.
5. Off-Road Care: After driving in extreme off-road conditions, inspect the drive shaft for damage, especially if you’ve encountered rough terrain. Mud, rocks, and other debris can damage the shaft, slip yoke, or U-joints, leading to issues if not addressed promptly.

Conclusion

The HDK Drive Shaft Assembly is a robust and high-quality component designed to meet the needs of the Toyota Land Cruiser 100 Series. Its ability to handle high torque loads, provide smooth power transfer, and accommodate suspension movement makes it an essential part of the vehicle’s drivetrain. Regular maintenance and care will ensure that the drive shaft continues to perform optimally, contributing to the Land Cruiser’s reputation as a reliable, durable, and capable off-road vehicle.
