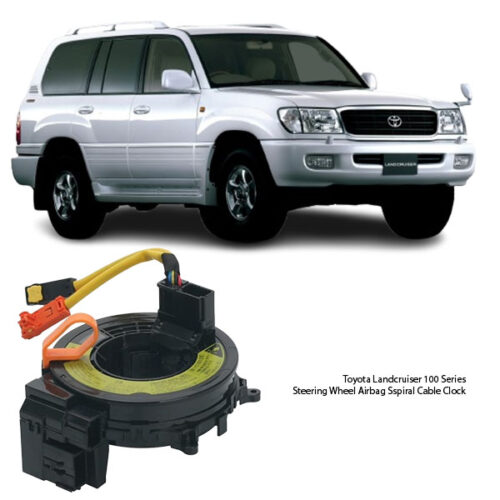

Toyota Landcruiser 100 Series Steering Wheel Airbag Spiral Cable Clock 84306-60080

Get Toyota Landcruiser 100 Series Steering Wheel Airbag Spiral Cable Clock 84306-60080

The Steering Wheel Airbag Spiral Cable Clock, commonly known as the clock spring, is a crucial component in modern vehicles that ensures the proper electrical connection between the steering wheel and various control systems. It plays a vital role in maintaining connectivity for airbags, horn, cruise control, and other steering wheel functions while allowing the steering wheel to rotate freely.

This guide explores the function, benefits, failure symptoms, replacement tips, and maintenance of the steering wheel airbag spiral cable clock in detail.

1. What is a Steering Wheel Airbag Spiral Cable Clock?

The steering wheel airbag spiral cable clock is a coiled ribbon-like electrical connector housed within the steering column. It allows the steering wheel to turn without breaking the electrical connections for essential systems such as:

• Airbag deployment system (SRS – Supplemental Restraint System)
• Horn functionality
• Steering wheel-mounted controls (Audio, Bluetooth, Cruise Control, etc.)

This component prevents electrical wires from twisting or breaking due to continuous steering wheel movement, ensuring seamless operation of safety and convenience features.

2. Functionality of the Clock Spring

The clock spring is designed with a flexible ribbon circuit wound in a spiral shape inside a plastic housing. This structure allows it to extend and retract as the steering wheel turns.

Key Functions:

1. Maintains Electrical Continuity – Ensures the airbag, horn, and other steering wheel functions stay connected while allowing full steering wheel rotation.
2. Prevents Wire Damage – Protects the delicate internal wiring from twisting, breaking, or becoming disconnected.
3. Facilitates Airbag Deployment – A crucial safety component that enables the driver’s airbag to deploy properly in case of an accident.
4. Supports Steering Wheel Controls – Enables seamless operation of integrated buttons, such as volume control, hands-free calling, and cruise control.

3. Benefits of a Properly Functioning Clock Spring

A working clock spring ensures that vital vehicle functions remain operational. Here are the key benefits:

A. Safety

• The airbag system depends on a properly functioning clock spring. If the spiral cable fails, the airbag may not deploy during an accident, putting occupants at risk.

B. Convenience

• Allows steering wheel controls for infotainment and hands-free communication, reducing distractions while driving.
• Ensures the horn remains functional, which is crucial for alerting pedestrians or other drivers in emergencies.

C. Longevity of Electrical Components

• Prevents damage to electrical wiring inside the steering column, reducing the risk of costly repairs.

D. Prevents Dashboard Warning Lights

• A faulty clock spring can trigger airbag warning lights, causing safety concerns and potential failed vehicle inspections.

4. Symptoms of a Faulty Clock Spring

Over time, the clock spring can wear out due to frequent steering movements or exposure to heat and dust. Here are the common signs of failure:

A. Airbag Warning Light (SRS Light) On

• If the airbag light appears on the dashboard, the clock spring may not be supplying power to the airbag module.

B. Non-Functional Steering Wheel Controls

• If volume, cruise control, or Bluetooth buttons stop working, it could indicate a damaged clock spring.

C. Horn Not Working

• A disconnected or broken clock spring will prevent the horn from functioning.

D. Clicking or Rubbing Noises When Turning the Steering Wheel

• A damaged or misaligned clock spring may produce a clicking or rubbing noise inside the steering column.

E. Airbag Deployment Issues

• A broken clock spring may disable the driver’s airbag, preventing it from deploying in a crash.

5. Causes of Clock Spring Failure

Several factors can lead to clock spring failure:

1. Excessive Steering Movements – Constant full turns (e.g., frequent U-turns) can cause wear and tear.
2. Accidental Damage – Incorrect handling during steering column repairs or airbag replacements.
3. Age and Wear – Over time, the ribbon cable inside the clock spring loses flexibility and may snap.
4. Airbag Deployment Impact – If the airbag deploys, the clock spring is usually damaged and needs replacement.

6. How to Replace a Faulty Clock Spring

⚠ Important: Replacing a clock spring requires precision because it is directly linked to the airbag system. If improperly installed, the airbag may fail to deploy or deploy unexpectedly.

A. Steps for Clock Spring Replacement:

1. Disconnect the Battery – Disconnect the negative terminal to avoid accidental airbag deployment.
2. Wait for 10-15 Minutes – This ensures any residual power in the airbag system is discharged.
3. Remove the Airbag Module – Use the correct tools to safely detach the airbag unit from the steering wheel.
4. Disconnect Electrical Connectors – Carefully unplug the airbag and steering wheel control connectors.
5. Remove the Steering Wheel – Loosen the central steering wheel nut and gently pull off the wheel.
6. Replace the Clock Spring – Align and install the new clock spring, ensuring it is centered.
7. Reconnect Everything – Reassemble the steering wheel, plug in all connectors, and reinstall the airbag.
8. Reconnect the Battery and Test – Check that the airbag warning light turns off and all controls function properly.

⚠ Always refer to your vehicle’s service manual or seek professional assistance.

7. Preventive Maintenance Tips

To extend the lifespan of your clock spring, follow these tips:

✅ Avoid excessive steering wheel rotations – Don’t turn the steering wheel unnecessarily when the car is stationary.
✅ Be cautious when working on the steering system – If replacing an airbag, horn, or controls, ensure the clock spring remains aligned.
✅ Check for warning lights – If the airbag warning light appears, get the system checked immediately.
✅ Handle with care – The clock spring is fragile, so avoid excessive force when handling it during repairs.

8. Frequently Asked Questions (FAQs)

Q1: Can I drive with a faulty clock spring?

• Not recommended. A faulty clock spring can disable the airbag system, putting you at risk in an accident.

Q2: Can I repair a clock spring, or do I need to replace it?

• Clock springs cannot be repaired and must be replaced if damaged.

Q3: How much does it cost to replace a clock spring?

• Prices vary depending on the vehicle make and model. However, labor costs can be high due to the steering wheel disassembly required.

Q4: Will a new clock spring fix my airbag warning light?

• If the clock spring was the issue, replacing it should turn off the warning light. However, always scan for diagnostic trouble codes (DTCs) to confirm.

Conclusion

The Steering Wheel Airbag Spiral Cable Clock (Clock Spring) is a vital safety and convenience component that ensures airbag functionality, horn operation, and steering wheel controls work seamlessly. A faulty clock spring can disable the airbag system, making it a critical component to maintain.
