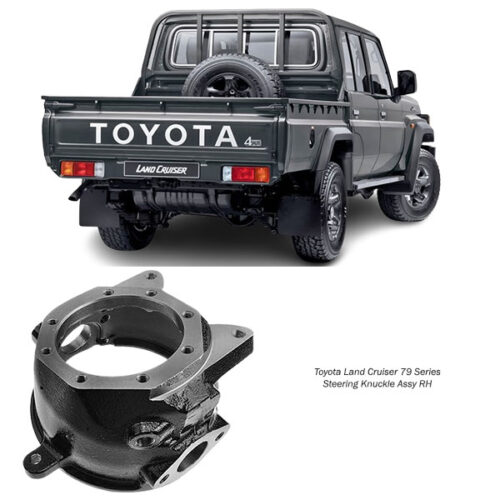

Toyota Landcruiser 79Series Steering Knuckle Assy RH 43211-60120

Get Toyota Landcruiser 79Series Steering Knuckle Assy RH 43211-60120 in Kenya

The Steering Knuckle Assembly RH is one of the most structurally significant components in a vehicle’s suspension and steering system. Often underappreciated but absolutely essential, the steering knuckle is the foundation for connecting key parts such as the wheel hub, steering linkage, suspension arms, and brake components. On the right-hand (passenger) side, this assembly is meticulously designed to mirror the left side’s performance while managing its own share of road forces, steering movement, and suspension loads.

🧠 What is the Steering Knuckle Assembly RH?

The Steering Knuckle Assembly RH is a solid metal component, typically made from forged steel, cast iron, or aluminum alloy, designed to anchor and coordinate multiple parts of the front suspension and steering system. It acts as the hub carrier — providing structural support for the wheel hub and bearing — and serves as the steering axis pivot, enabling the front wheels to turn.

Unlike static parts, the steering knuckle performs a dynamic role. It must be strong enough to endure vertical loads from the vehicle, lateral cornering forces, and torsional impacts from braking and turning, all while maintaining precise geometric tolerances to ensure the vehicle handles predictably and safely.

⚙️ Key Functions of the Steering Knuckle Assembly RH

🔄 1. Steering Pivot Support

The knuckle forms the rotational center for the front wheels by acting as the pivot point between the tie rod and the wheel assembly. When the driver turns the steering wheel, the tie rods push or pull on the knuckle, which rotates the wheel left or right.

🛞 2. Wheel Hub Mounting Base

It provides the mount for the wheel hub and bearing. The hub is either bolted to the knuckle or pressed into a machined seat, depending on the design. This allows the wheel to rotate smoothly around a fixed axis.

🔩 3. Suspension Link Connection

The knuckle serves as the linking body between the upper and lower suspension arms (in double-wishbone systems) or between the lower control arm and a MacPherson strut. It provides mounting points for ball joints, struts, or shocks.

🛑 4. Brake System Mounting

It includes mounting locations for the brake caliper bracket and often acts as the reference structure for the brake rotor’s position. This ensures stable braking under pressure and prevents misalignment.

🧭 5. Maintains Geometry & Alignment

The precision of the knuckle ensures correct camber, caster, and toe settings, all of which are critical for vehicle handling, tire wear, and suspension behavior. Even slight distortions in this part can negatively impact alignment.

🔍 Construction & Design

The RH Steering Knuckle Assembly is engineered with:

🧱 Heavy-Duty Material Composition

• Forged steel is often used for strength and impact resistance.

• Cast iron variants provide a good balance between rigidity and cost.

• Aluminum alloy options are lighter, often used in performance-oriented applications to reduce unsprung mass.

📏 Precision Machining

All contact and mounting surfaces — such as the bearing seat, caliper mount, and suspension attachment points — are CNC-machined to tight tolerances to ensure consistent alignment and smooth component interface.

🔩 Mounting Interfaces

Includes bosses or holes for:

• Tie rod end

• Lower ball joint

• Upper ball joint or strut

• Brake caliper bracket

• ABS sensor (if applicable)

• Dust shield or splash guard

🧰 Engineering Benefits

✅ 1. Structural Rigidity

The knuckle is designed to resist bending and flexing under load, even during hard braking or sharp turns. It must maintain its shape despite the constant forces acting on it.

✅ 2. High Dimensional Accuracy

Proper geometry is crucial for maintaining the integrity of the suspension system. The knuckle ensures all related parts sit at the correct angles for optimal handling.

✅ 3. Corrosion Resistance

Many modern steering knuckles come with protective coatings such as black oxide, zinc plating, or powder coating to resist corrosion from moisture, salt, and debris.

✅ 4. Load Distribution

By linking key suspension and steering components, the knuckle distributes road and braking loads through multiple paths to prevent stress concentration and extend the life of surrounding components.

🛠️ Typical Features

• Pre-drilled & tapped bolt holes for easy installation of components

• Reinforced flanges and bosses to prevent cracking under stress

• Heat-treated contact surfaces to improve durability

• Sensor integration points for ABS or other wheel-speed sensors

• Grease channels or dust shield compatibility for cleaner operation

⚙️ Assembly Components (Optional Depending on Design)

In some versions, the RH knuckle assembly may come with:

• Pre-installed wheel bearing

• Pre-pressed hub

• Dust shield or backing plate

• Wheel speed sensor bracket

• Caliper anchor bracket

These bundled assemblies reduce installation time and the need for additional tools or presses.

🔍 Inspection & Maintenance

Even though steering knuckles are designed to last the lifetime of a vehicle, they should be inspected during:

• Suspension overhauls

• Brake system servicing

• Accident repairs

• Alignment issues

Look for cracks, bends, or worn mounting holes. Even a small deformation can cause major alignment or safety issues.

⚠️ Signs a RH Steering Knuckle May Be Damaged

• Difficulty aligning the vehicle properly

• Uneven tire wear on the right side

• Pulling to one side when braking

• Unusual vibration or knocking sounds

• Visible cracks or corrosion near stress points

💬 Final Thoughts – Why the RH Steering Knuckle Assembly Matters

The Steering Knuckle Assembly RH is not a flashy part, but it is among the most critical for safe and effective vehicle operation. Every degree of precision in this component affects how the vehicle handles, steers, and brakes — especially under load or during emergencies.

Replacing a worn or damaged RH knuckle restores:

• 🔄 Precise steering response

• 🧭 Proper suspension geometry

• 🛞 Smooth hub and bearing operation

• 🔧 Stability under braking and cornering

• 🔒 Structural integrity of the front suspension system

It’s not just a support bracket — it’s the cornerstone of your front-end structure.

🧰 Built to Take the Load. Engineered for the Road.

Choose a quality Steering Knuckle Assembly RH and drive with confidence, knowing your suspension and steering systems are held together by a part that’s as strong and precise as it is essential.
