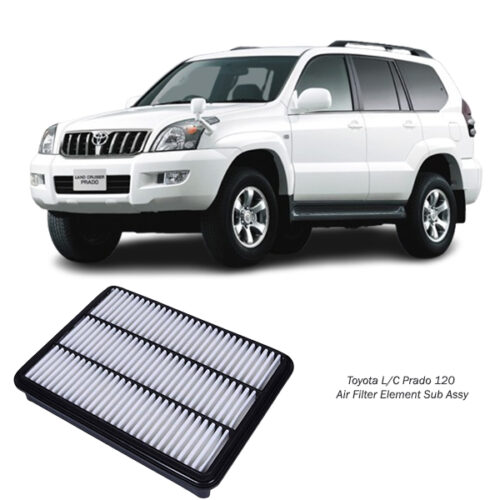

Toyota Landcruiser Prado 120 Air Filter Element Sub Assy 17801-30040

Get Toyota Landcruiser Prado 120 Air Filter Element Sub Assy 17801-30040 in Kenya

The air filter element sub-assembly is a critical component in a vehicle’s engine air intake system. It ensures that clean, debris-free air is supplied to the engine, which is essential for efficient combustion, optimal engine performance, and longevity. This guide delves into the design, function, types, benefits, maintenance, and troubleshooting of the air filter element sub-assembly in detail.

1. The Function of the Air Filter Element Sub-Assembly

a) Filtration of Airborne Contaminants

• The primary role of the air filter is to trap dust, pollen, dirt, and other airborne particles, preventing them from entering the engine.
• This ensures that the air-fuel mixture remains clean and efficient.

b) Ensuring Optimal Combustion

• For combustion to occur efficiently, the engine requires a precise ratio of air to fuel. Clean air contributes to proper combustion, minimizing engine knocking and emissions.

c) Protecting Engine Components

• The filter prevents abrasive particles from reaching sensitive components like pistons, cylinders, and valves, reducing wear and tear.

d) Enhancing Engine Performance

• A clean air filter ensures smooth airflow, leading to better fuel efficiency and performance.

2. Design and Structure of an Air Filter Element Sub-Assembly

a) Components of the Sub-Assembly

1. Filter Element: The core part, made of pleated paper, foam, or synthetic fibers, traps contaminants.
2. Housing: A durable casing that secures the filter element and connects to the air intake system.
3. Seals and Gaskets: Prevent unfiltered air from bypassing the filter.

b) Material Composition

• Paper Filters: Cost-effective, disposable, and highly efficient.
• Foam Filters: Reusable and suitable for heavy-duty or off-road applications.
• Synthetic Filters: High-performance filters that offer superior filtration and durability.

c) Shape and Size Variations

• Filters come in various shapes (panel, cylindrical, or conical) and sizes, depending on vehicle design and engine specifications.

3. Types of Air Filter Element Sub-Assemblies

a) Paper Air Filters

• Common in most passenger vehicles.
• Provide excellent filtration at a low cost.
• Require regular replacement as they are not reusable.

b) Foam Air Filters

• Suitable for high-dust environments or off-road vehicles.
• Can be cleaned and reused multiple times.
• Often treated with oil for improved dust-trapping capabilities.

c) Cotton or Gauze Filters

• High-performance filters often used in sports or modified vehicles.
• Reusable and provide better airflow but may require more frequent cleaning.

d) Synthetic Air Filters

• Offer the best combination of durability, filtration efficiency, and airflow.
• Commonly used in modern, high-performance vehicles.

4. Benefits of the Air Filter Element Sub-Assembly

a) Improved Engine Longevity

• By preventing contaminants from entering the engine, the filter reduces wear and tear on critical components.

b) Enhanced Fuel Efficiency

• A clean filter allows for optimal air intake, ensuring the engine burns fuel efficiently.

c) Reduced Emissions

• Clean air filters support proper combustion, minimizing the production of harmful emissions like carbon monoxide and hydrocarbons.

d) Smoother Driving Experience

• Ensures consistent engine performance by maintaining the proper air-to-fuel ratio.

e) Cost Savings

• Regular maintenance of the air filter prevents costly repairs related to engine damage or decreased efficiency.

5. Signs of a Clogged or Failing Air Filter

a) Reduced Engine Performance

• A clogged filter restricts airflow, leading to sluggish acceleration and reduced power output.

b) Decreased Fuel Economy

• The engine compensates for restricted airflow by using more fuel, lowering overall efficiency.

c) Black Smoke from the Exhaust

• An overly rich air-fuel mixture caused by poor airflow can result in incomplete combustion, visible as black exhaust smoke.

d) Strange Noises

• A whistling or unusual sound from the air intake may indicate airflow restriction.

e) Dirty or Dark Filter

• A visual inspection revealing a filter covered in dirt or debris is a clear sign it needs replacement.

6. Maintenance of Air Filter Element Sub-Assemblies

a) Inspection

• Check the air filter during routine oil changes or at intervals specified in the owner’s manual.
• Remove and hold the filter against a light source; if light cannot pass through, the filter is clogged.

b) Cleaning (For Reusable Filters)

• Wash foam or cotton filters with a mild detergent and rinse thoroughly.
• Allow them to dry completely before reinstallation.

c) Replacement

• Replace paper filters at recommended intervals, typically every 12,000 to 15,000 miles, or sooner in dusty conditions.

d) Avoiding Over-Oiling

• For oil-treated filters, ensure they are not over-oiled, as excess oil can damage sensors in the intake system.

7. Troubleshooting Common Issues

a) Poor Airflow

• Cause: Clogged or improperly installed filter.
• Solution: Clean or replace the filter and ensure correct installation.

b) Oil Contamination

• Cause: Excessive oil from the crankcase breather or over-oiling of foam filters.
• Solution: Clean the filter and inspect the breather system.

c) Unfiltered Air Bypassing

• Cause: Damaged seals or improperly seated filter.
• Solution: Replace damaged seals or properly seat the filter in its housing.

8. Replacing the Air Filter Element Sub-Assembly

a) Tools Needed

• Screwdrivers or socket wrenches to access the filter housing.

b) Steps to Replace

1. Locate the Filter Housing: Usually found in the engine bay, connected to the air intake duct.
2. Open the Housing: Remove screws or clips to access the filter.
3. Inspect the Old Filter: Check for clogging or damage.
4. Insert the New Filter: Ensure it is seated properly within the housing.
5. Secure the Housing: Reattach screws or clips tightly to prevent air leaks.

9. Environmental Impact

a) Recycling Old Filters

• Paper filters can be disposed of, while reusable filters reduce waste.

b) Energy Efficiency

• A well-maintained air filter reduces fuel consumption, contributing to lower carbon emissions.

10. Cost Considerations

a) Price of Filters

• Paper filters: $10-$30, depending on quality.
• Reusable filters: $50-$100, with a longer lifespan.

b) Replacement Frequency

• The cost of replacement filters adds up, but proper maintenance can reduce the frequency of changes.

11. Air Filters in Modern Vehicles

a) Advanced Materials

• Modern vehicles use synthetic or multi-layered filters for enhanced performance.

b) Integration with Sensors

• Some filters are part of a larger air intake system equipped with sensors to monitor airflow and temperature.

c) Compatibility with Turbocharged Engines

• Turbocharged engines require high-performance filters to handle increased airflow demands.

12. Conclusion

The air filter element sub-assembly is an essential component that directly impacts engine health, performance, and efficiency. Regular maintenance, timely replacement, and understanding the different types of filters can significantly enhance your vehicle’s performance while protecting the engine from costly damage. Whether you are a daily commuter or an off-road enthusiast, prioritizing the upkeep of your air filter will ensure a smoother and more efficient driving experience.
