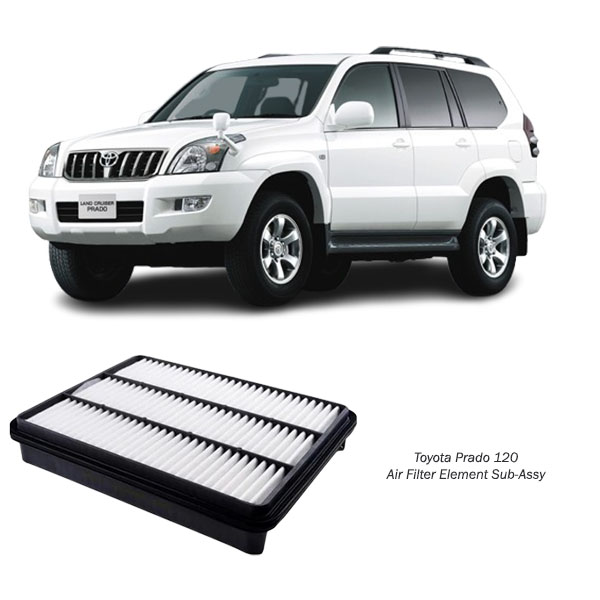

Get Toyota Prado 120 Air Filter Element Sub Assy A194J in Kenya
An Air Filter Element Sub-Assembly plays a vital role in the functioning of internal combustion engines (ICE) and other mechanical systems requiring clean air intake. Its primary purpose is to filter out particulate matter, dust, dirt, and other contaminants from the air before it enters the engine, ensuring smooth operation, optimal performance, and prolonged engine life. The air filter element sub-assembly is found in a variety of industries, including automotive, aerospace, agriculture, and industrial machinery.
In this 1000-word exploration, we will delve into the design, materials, functions, and maintenance of the air filter element sub-assembly, along with its importance in the overall air intake system.
1. The Role of the Air Filter Element Sub-Assembly
The air filter element is a critical component within an engine’s air intake system. The air intake system is responsible for delivering the necessary air to the engine to mix with fuel for combustion. Without a clean air supply, an engine would experience several issues, including poor performance, excessive engine wear, and even failure. The air filter element sub-assembly is the primary line of defense against airborne contaminants that could damage engine components.
When air enters the engine, it passes through the air filter element, which traps dirt, dust, and other pollutants. The purpose of the filter is to prevent these contaminants from reaching sensitive parts of the engine, such as the pistons, cylinders, and valves. A properly functioning air filter ensures that only clean, filtered air enters the combustion chamber, enabling efficient combustion, better fuel economy, and reduced emissions.
In addition to improving engine efficiency, the air filter also contributes to the overall health of the engine. Over time, dirt particles can accumulate and cause friction within the engine, leading to increased wear and potentially causing damage to moving parts. The air filter reduces this risk by ensuring that the air entering the engine remains as clean as possible.
2. Design of the Air Filter Element Sub-Assembly
The air filter element sub-assembly consists of several parts working together to ensure effective filtration. These components include:
a. Filter Media
The filter media is the primary material used for capturing dust and particles. It is the most critical component of the air filter element, as it determines the filter’s ability to trap contaminants and the airflow efficiency. There are several types of filter media:
- Paper: Pleated paper filters are the most common type due to their cost-effectiveness and ease of production. The pleats create a larger surface area for trapping particles, which increases the filter’s dirt-holding capacity.
- Cotton: Cotton filter elements are typically used in high-performance vehicles, as they can provide greater air flow compared to paper filters. They are also reusable after cleaning and oiling.
- Foam: Foam filters are primarily used in off-road and motorcycle applications. Foam is durable and can be cleaned and reused multiple times. These filters offer high dirt retention while maintaining good airflow.
- Synthetic Fibers: Synthetic air filters are more efficient at trapping very fine particles, and they are often used in applications requiring higher filtration levels, such as in high-performance engines or clean-room environments.
b. Frame and Structure
The frame or casing of the air filter element holds the filter media in place and provides support. It is designed to fit securely within the air filter housing. The frame is typically made from materials like plastic, metal, or composite materials that can withstand the pressure and vibrations present within the engine compartment. Additionally, the frame helps direct air through the filter and prevents bypass, ensuring that all incoming air passes through the filter media.
c. End Caps
The end caps are located at both ends of the filter element. They are used to seal the filter and prevent unfiltered air from bypassing the filter media. End caps are often made of molded plastic or metal, and they are designed to securely hold the filter media within the air filter housing. Some end caps have mounting features to help the filter element attach to the air intake system.
d. Seals and Gaskets
Seals are essential components of the air filter element assembly. They ensure an airtight fit between the filter and the air intake housing, preventing any air from bypassing the filter media. Seals are typically made from rubber, silicone, or foam, and they play a crucial role in ensuring the effectiveness of the air filtration process.
3. Types of Air Filter Elements
Air filters come in various types, and each is designed for specific applications. The most common types include:
a. Dry Air Filters
Dry air filters are the most widely used in automotive applications. They use pleated filter media (typically paper) to trap dirt and debris. These filters are disposable and must be replaced periodically. Dry filters are simple, cost-effective, and efficient at trapping dust and dirt particles.
b. Oiled Filters
Oiled filters, often made of cotton or foam, are used in high-performance engines. These filters are designed to trap particles while allowing for increased airflow. They require periodic cleaning and re-oiling to maintain their effectiveness. Oiled filters are popular in racing vehicles and off-road applications, where maximum engine performance is critical.
c. Electrostatic Filters
Electrostatic filters use an electrostatic charge to attract and trap fine particles in the air. These filters are often used in applications requiring very high filtration efficiency, such as in industrial machinery or certain high-performance vehicles. Electrostatic filters may be permanent and washable or disposable.
4. Materials Used in the Construction of Air Filter Element Sub-Assemblies
The materials used to construct air filter elements play a significant role in their performance, durability, and filtration efficiency. The most common materials used include:
a. Cellulose Paper
Cellulose paper is the most common material used in air filters. It is inexpensive, has good filtration capacity, and is widely available. However, paper filters typically need to be replaced rather than cleaned, as the paper media can become damaged or degraded over time.
b. Synthetic Media
Synthetic filter media, made from polyester or similar materials, offers superior filtration performance compared to paper filters. Synthetic filters are more durable and resistant to moisture, which can cause paper filters to lose their effectiveness. They can also filter smaller particles, making them ideal for high-performance or industrial applications.
c. Foam and Cotton
Foam and cotton filters are designed to be reusable. Cotton filters are commonly used in high-performance applications and are oiled to improve their filtration efficiency. Foam filters are often used in off-road vehicles and motorcycles due to their durability and high dirt-holding capacity.
5. Importance of the Air Filter Element Sub-Assembly
The air filter element sub-assembly is indispensable for maintaining engine efficiency and longevity. Here’s why it’s important:
a. Protects Engine Components
The most crucial role of the air filter element is to protect the engine’s internal components. If contaminants such as dust and dirt enter the engine, they can cause excessive wear on components like the pistons, cylinders, and valves. This can lead to costly repairs or even engine failure. By trapping these particles, the air filter helps preserve engine health.
b. Improves Fuel Efficiency
An engine needs a specific air-to-fuel ratio for efficient combustion. A clean air filter ensures that the engine receives the correct amount of air, promoting better fuel efficiency. A clogged or inefficient filter can reduce airflow, causing the engine to work harder, consume more fuel, and release more emissions.
c. Extends Engine Life
By preventing harmful particles from entering the engine, the air filter plays a significant role in extending the lifespan of engine components. Regular maintenance and timely replacement of the air filter can prevent premature engine wear and increase the overall longevity of the engine.
6. Maintenance and Replacement of the Air Filter Element Sub-Assembly
The air filter requires periodic inspection and maintenance to ensure optimal performance. The frequency of maintenance depends on factors such as the type of filter, the environment in which the vehicle operates, and the manufacturer’s recommendations. In general:
- Paper filters should be replaced after a specified number of miles or operating hours.
- Cotton or foam filters can be cleaned and re-oiled for reuse, depending on the manufacturer’s guidelines.
- It is important to replace or clean the air filter regularly to prevent engine damage and maintain fuel efficiency.
Conclusion
The air filter element sub-assembly is an essential component in any engine’s air intake system. Its role in filtering contaminants from the incoming air is critical to maintaining engine performance, reducing wear on internal components, and ensuring optimal fuel efficiency. By selecting the appropriate filter media, maintaining the filter regularly, and replacing it when necessary, vehicle and machinery owners can maximize the longevity and performance of their engines.
