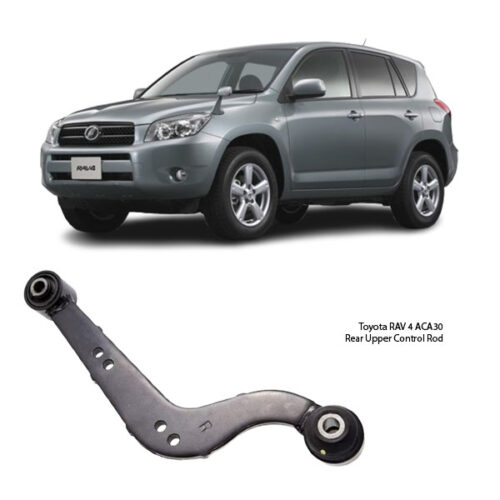

Get Toyota RAV 4 ACA30 Rear Upper Control Rod RH 48770-42040 in Kenya
The Rear Upper Control Rod (RH) is an essential part of a vehicle’s suspension system. It plays a vital role in keeping the wheels aligned, maintaining stability, and ensuring a smooth driving experience. A well-functioning control rod helps in handling, steering response, and comfort by keeping the suspension geometry intact.
In this detailed guide, we will explore everything about the rear upper control rod (right-hand side)—its function, design, materials, importance, symptoms of failure, replacement process, maintenance tips, and more.
1. Understanding the Rear Upper Control Rod
What is a Control Rod?
A control rod is a metallic or composite link in a vehicle’s multi-link suspension system that helps to control the movement of the wheels. There are multiple control arms and rods in a suspension setup, and the rear upper control rod specifically connects the rear wheel assembly to the chassis.
Why is the RH (Right-Hand Side) Important?
Since vehicles move through a variety of road conditions, each wheel experiences different amounts of stress. The right-hand side control rod plays a crucial role in keeping the right-side rear wheel stable while driving, preventing misalignment and excessive wear on the tires.
2. Components and Design of the Rear Upper Control Rod
A typical rear upper control rod consists of:
1️⃣ Rod Body
- The main structural component, usually made from high-strength steel, aluminum, or reinforced composite materials.
- It provides the necessary rigidity and strength to hold the suspension system in place.
2️⃣ Bushings or Ball Joints
- These are located at both ends of the rod to provide flexibility and reduce vibrations.
- Commonly made from rubber, polyurethane, or metal, bushings allow movement while absorbing shocks.
3️⃣ Mounting Points & Fasteners
- The rod has holes or brackets for mounting onto the chassis and suspension knuckle.
- Bolts and fasteners ensure a secure connection and prevent unwanted movement.
3. Materials Used in Control Rods
The material of a control rod determines its durability and weight.
Steel Control Rods 🔩
✔ Strong and durable
✔ Common in factory-installed suspension systems
❌ Heavier than aluminum
❌ Prone to rust and corrosion over time
Aluminum Control Rods 🏎️
✔ Lightweight, improving fuel efficiency
✔ Rust-resistant, making it last longer
✔ Often used in performance vehicles
❌ Less durable compared to steel
Composite Control Rods 🛠️
✔ Made from carbon fiber or reinforced plastic
✔ Very light yet strong
✔ Ideal for high-performance cars
❌ Expensive
4. Function of the Rear Upper Control Rod (RH)
The Rear Upper Control Rod serves the following crucial functions:
🔹 Maintains Proper Wheel Alignment
- It prevents excessive camber changes, keeping the rear wheels in the correct position.
🔹 Enhances Handling and Stability
- The control rod minimizes unnecessary wheel movement, ensuring a smoother ride.
🔹 Improves Ride Comfort
- It helps absorb road shocks, making the driving experience more comfortable.
🔹 Prevents Excessive Tire Wear
- A properly functioning control rod reduces uneven tire wear, extending tire lifespan.
5. Signs of a Failing Rear Upper Control Rod (RH)
A damaged or worn-out rear upper control rod can negatively affect a vehicle’s performance.
🚨 Warning Signs:
🔴 Uneven Tire Wear – Misalignment causes one side of the tire to wear out faster.
🔴 Clunking or Knocking Noises – Loose or damaged bushings/joints cause a rattling sound while driving.
🔴 Poor Handling – Excessive body roll or lack of steering response.
🔴 Vibration at High Speeds – Unstable suspension results in shaking at high speeds.
🔴 Loose Rear End Feel – The car may feel unstable or wobbly on turns.
Ignoring these signs can lead to further suspension damage and unsafe driving conditions.
6. Replacing a Rear Upper Control Rod (RH)
When the control rod is damaged or worn, replacement is necessary.
🛠️ Tools Required:
🔧 Jack & Jack Stands – To lift the vehicle safely
🔧 Socket Wrench Set – To remove bolts
🔧 Torque Wrench – Ensures proper tightening
🔧 Penetrating Oil – Loosens rusted bolts
Step-by-Step Process
1️⃣ Lift the Vehicle – Securely raise the rear end using a jack and jack stands.
2️⃣ Locate the Control Rod – Identify the right-hand side rear upper control rod.
3️⃣ Remove Old Control Rod – Loosen the bolts and carefully detach the old rod.
4️⃣ Install New Control Rod – Align the new rod and secure it in place.
5️⃣ Torque Bolts to Specification – Ensure correct tightening to prevent movement.
6️⃣ Check Alignment – A professional alignment is recommended after replacement.
7. Maintenance Tips for Longevity
Regular maintenance can extend the life of your rear upper control rod.
✔️ Inspect for Wear – Check for cracks, rust, or loose bushings.
✔️ Lubricate Bushings – Prevents squeaking and enhances durability.
✔️ Tighten Bolts Regularly – Ensures stability and prevents noise.
✔️ Replace When Necessary – Avoid waiting until failure occurs.
8. OEM vs. Aftermarket Control Rods
Choosing between OEM (Original Equipment Manufacturer) and Aftermarket parts depends on your preference.
✅ OEM Control Rods
✔️ Perfect fit and compatibility
✔️ High-quality, durable materials
❌ Usually more expensive
✅ Aftermarket Control Rods
✔️ Available in performance upgrades (adjustable options)
✔️ More affordable options available
❌ Quality may vary, some may not fit properly
10. Conclusion
The Rear Upper Control Rod (RH) is a vital component of a car’s suspension system, ensuring stability, proper wheel alignment, and comfort. Regular maintenance, timely replacement, and choosing quality parts will keep your vehicle running smoothly. 🚗💨
Whether you’re a DIY enthusiast or planning a mechanic visit, knowing about the rear upper control rod will help you make informed decisions for better handling and performance.
