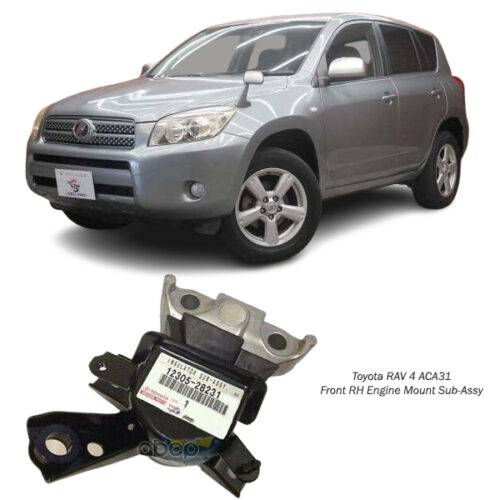

Toyota RAV 4 ACA31 Front RH Engine Mount Sub-Assy 12305-28231

Get Toyota RAV 4 ACA31 Front RH Engine Mount Sub-Assy 12305-28231 in Kenya

The front right-hand (RH) engine mount sub-assembly is a critical component of a vehicle’s engine mounting system. Its primary purpose is to securely hold the engine in place while isolating vibrations and minimizing the transmission of noise to the vehicle’s cabin. Positioned on the right-hand side of the engine bay, this mount is typically more robust in design because it supports significant engine weight and counteracts torque forces generated during acceleration and deceleration.

The term “sub-assembly” refers to the fact that this mount is often part of a larger system and includes additional components, such as brackets, bushings, or dampers, that work together to secure and stabilize the engine.

Functions of the Front RH Engine Mount Sub-Assembly

1. Engine Support: It provides structural support to the engine, ensuring it remains securely positioned within the engine bay.
2. Vibration Dampening: The mount absorbs engine vibrations and prevents them from transferring to the chassis, enhancing ride comfort.
3. Noise Reduction: By isolating the engine from the vehicle’s frame, the mount minimizes the transmission of noise to the cabin.
4. Torque Management: It counteracts the twisting motion of the engine (torque) during acceleration, deceleration, and gear shifts.
5. Alignment Maintenance: The mount keeps the engine aligned with other drivetrain components, ensuring smooth operation and reducing wear on connected parts.

Components of the Sub-Assembly

1. Bracket: A metal framework that attaches the mount to the vehicle’s frame and engine.
2. Rubber or Polyurethane Insulator: A flexible material that absorbs vibrations and provides cushioning between the engine and the frame.
3. Metal Housing: Encases the mount for added durability and strength.
4. Hydraulic Fluid Chamber (Optional): Found in hydraulic mounts, this chamber further reduces vibrations by using fluid damping.
5. Bolts and Fasteners: Secure the mount to the engine and vehicle frame.

Types of Engine Mounts

1. Rubber Mounts: Traditional mounts made of rubber and metal. They are cost-effective and provide basic vibration isolation but may wear out faster.
2. Hydraulic Mounts: Contain a fluid-filled chamber for enhanced vibration dampening and are commonly used in modern vehicles.
3. Active Engine Mounts: Use electronic sensors and actuators to adjust damping levels dynamically, offering superior noise and vibration isolation.
4. Polyurethane Mounts: Durable and stiffer than rubber mounts, often used in performance vehicles for better torque control.

Working Principle of the Front RH Engine Mount

When the engine operates, it generates vibrations and torque due to the movement of internal components and power transfer to the drivetrain. The engine mount sub-assembly acts as a bridge between the engine and the vehicle frame, performing the following functions:

1. Dampening Vibrations: The flexible insulator material absorbs and dissipates vibrations, preventing them from reaching the chassis.
2. Absorbing Torque: During acceleration or gear shifts, the mount absorbs the rotational forces generated by the engine, keeping it stable.
3. Maintaining Position: The mount ensures the engine remains securely aligned with the drivetrain components, allowing for smooth power transfer.

Benefits of the Front RH Engine Mount Sub-Assembly

1. Improved Ride Comfort: By reducing engine vibrations and noise, it enhances the overall driving experience.
2. Longevity of Components: Proper support and alignment reduce stress on drivetrain components, extending their lifespan.
3. Enhanced Vehicle Stability: Counteracts torque forces, ensuring the engine stays stable during dynamic driving conditions.
4. Reduced Maintenance Costs: Minimizes wear and tear on connected components, leading to fewer repairs.
5. Optimized Performance: Proper alignment of the engine with other systems ensures efficient power delivery.

Signs of a Faulty Front RH Engine Mount Sub-Assembly

1. Excessive Vibrations: Increased engine vibrations felt in the cabin, especially during idling or acceleration, may indicate a worn mount.
2. Clunking or Banging Noise: Sounds from the engine bay during gear shifts or sudden acceleration may result from a loose or damaged mount.
3. Engine Misalignment: Visible misalignment of the engine, often causing strain on connected components.
4. Leaking Fluid: For hydraulic mounts, fluid leaks around the mount indicate a failure.
5. Rough Gear Shifts: Difficulty in changing gears or jerky movements may result from excessive engine movement.
6. Engine Movement: Excessive engine rocking or movement when revving the engine in neutral.

Causes of Engine Mount Failure

1. Wear and Tear: Prolonged use leads to material degradation, especially for rubber components.
2. Exposure to Elements: Constant exposure to heat, oil, and road debris accelerates wear.
3. Driving Habits: Aggressive driving or frequent hard braking can stress the mount.
4. Improper Installation: Incorrect installation can lead to premature failure.
5. Engine Modifications: Increased power output from performance modifications can strain the mounts.

Maintenance Tips for Front RH Engine Mounts

1. Regular Inspections: Periodically inspect the mounts for signs of wear, cracks, or leaks.
2. Replace in Pairs: If one mount fails, replace both to maintain balance and performance.
3. Use Quality Parts: Opt for OEM or high-quality aftermarket mounts for durability and reliability.
4. Avoid Harsh Driving: Gentle acceleration and braking reduce stress on the mounts.
5. Check Adjacent Components: Inspect related parts, such as belts and pulleys, during mount replacement to ensure proper alignment.

Replacement Process

Replacing a front RH engine mount requires technical expertise and proper tools. Here’s an overview:

1. Safety First: Secure the vehicle with jack stands and disconnect the battery.
2. Support the Engine: Use an engine hoist or jack to support the engine’s weight.
3. Remove Obstructions: Remove nearby components (e.g., air filters, hoses, or belts) to access the mount.
4. Unbolt the Mount: Detach the bolts securing the mount to the engine and frame.
5. Install the New Mount: Align the new mount and secure it with the provided bolts.
6. Reassemble Components: Reattach any removed components and ensure proper connections.
7. Test the Vehicle: Start the engine and test for vibrations or unusual noises.

When to Replace the Front RH Engine Mount Sub-Assembly

• Mileage Threshold: Most engine mounts last between 60,000 to 100,000 miles, depending on driving conditions.
• Visible Damage: Cracks, leaks, or corrosion on the mount require immediate replacement.
• Performance Issues: Persistent vibrations, noises, or misalignment warrant a replacement.

Cost of Replacement

The cost of replacing a front RH engine mount sub-assembly varies depending on:

1. Vehicle Make and Model: High-performance or luxury vehicles often have more expensive mounts.
2. Type of Mount: Hydraulic and active mounts are costlier than basic rubber mounts.
3. Labor Charges: Replacement typically involves 1–3 hours of labor, depending on the complexity.

Advantages of Upgraded Engine Mounts

• Enhanced Stability: Performance mounts provide better torque control for high-powered engines.
• Longer Lifespan: Polyurethane or reinforced mounts last longer under demanding conditions.
• Improved Driving Experience: Advanced mounts reduce vibrations and improve cabin comfort.

Conclusion

The front RH engine mount sub-assembly is essential for maintaining engine stability, reducing vibrations, and ensuring proper alignment of the drivetrain. Regular inspections, timely replacements, and using high-quality components can prevent failures and enhance the overall performance and comfort of your vehicle. By understanding its functions, benefits, and maintenance needs, you can ensure your engine mount continues to support your vehicle efficiently and safely.
