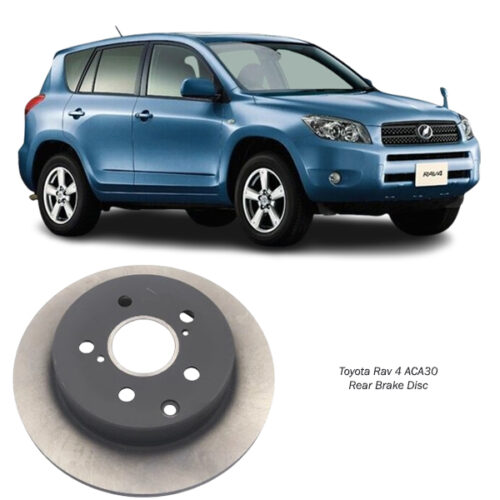

Toyota Rav4 ACA30 Rear Brake Disc 42431-0R010

Rear brake discs, also known as rear brake rotors, are a vital component of a vehicle’s braking system. They play a significant role in ensuring safety and optimal vehicle performance by providing the friction needed to slow down or stop the rear wheels. This detailed guide explores the construction, function, types, benefits, maintenance, and troubleshooting of rear brake discs.

1. The Function of Rear Brake Discs

Brake discs work in conjunction with brake pads and the braking mechanism to convert kinetic energy into heat energy, slowing the rotation of the wheels.

a) Key Roles

1. Friction Generation: When the brake pads press against the rotating brake disc, friction is created, reducing wheel speed.
2. Heat Dissipation: Discs are designed to withstand and disperse the heat generated during braking.
3. Stopping Power Distribution: Rear brake discs share the braking load with the front discs, ensuring stability and efficient braking.

2. Construction of Rear Brake Discs

Rear brake discs are crafted to handle high temperatures and mechanical stress while maintaining performance and durability.

a) Material Composition

1. Cast Iron: Durable and cost-effective, widely used in most vehicles.
2. Carbon-Ceramic: Lightweight and resistant to heat, ideal for high-performance cars.
3. Stainless Steel: Offers corrosion resistance and durability, often used in motorcycles.

b) Design Features

1. Ventilated Discs: Feature internal vanes to enhance heat dissipation, reducing the risk of brake fade.
2. Solid Discs: Provide a simple, robust design, suitable for lighter vehicles.
3. Slotted or Drilled Discs: Include grooves or holes to improve cooling and remove debris.

3. Types of Rear Brake Discs

The type of brake disc installed depends on the vehicle’s purpose and performance requirements.

a) Solid Brake Discs

• Best for compact cars and vehicles that do not require heavy-duty braking.

b) Ventilated Brake Discs

• Common in modern vehicles, especially those requiring efficient heat dissipation.

c) Drilled and Slotted Discs

• Found in sports cars and performance vehicles, offering enhanced cooling and braking efficiency.

4. Benefits of Rear Brake Discs

Rear brake discs provide numerous advantages over older drum brake systems and are an integral part of modern braking systems.

a) Enhanced Braking Performance

• Provide consistent stopping power under various conditions.

b) Heat Management

• Ventilated designs allow for effective heat dissipation, preventing brake fade.

c) Longevity and Durability

• High-quality materials and designs ensure a longer service life.

d) Safety Improvements

• Offer precise and controlled braking, reducing stopping distances.

e) Compatibility with ABS

• Rear discs work seamlessly with anti-lock braking systems for better control.

5. Maintenance of Rear Brake Discs

Proper care and regular inspections are essential for maintaining the performance and longevity of rear brake discs.

a) Visual Inspection

• Look for cracks, grooves, or discoloration, which indicate wear or overheating.

b) Cleaning

• Remove debris and brake dust to maintain a smooth braking surface.

c) Measuring Disc Thickness

• Use a micrometer to check for wear; replace discs if they fall below the manufacturer’s recommended thickness.

d) Replacement

• Typically, rear brake discs last 30,000 to 70,000 miles, depending on driving conditions and habits.

6. Signs of Worn or Damaged Rear Brake Discs

Regular inspections can help identify issues before they compromise safety.

a) Vibration or Pulsation

• A warped disc causes vibrations when braking.

b) Squealing or Grinding Noise

• Indicates worn brake pads or damaged discs.

c) Uneven Wear

• May result from caliper issues or improper installation.

d) Reduced Braking Efficiency

• Longer stopping distances and less responsive braking indicate disc problems.

e) Visible Damage

• Cracks, grooves, or excessive rust are signs of wear.

7. Replacement Process for Rear Brake Discs

Changing rear brake discs is a straightforward process with the right tools and knowledge.

a) Tools Needed

• Jack and jack stands.
• Wrenches or sockets.
• Brake cleaner and cloth.
• New brake discs and pads.

b) Step-by-Step Instructions

1. Secure the Vehicle: Park on a flat surface and use the parking brake.
2. Remove the Wheels: Loosen the lug nuts and lift the vehicle with a jack.
3. Remove the Caliper: Unbolt and secure the brake caliper to avoid strain on the brake hose.
4. Take Off the Old Disc: Loosen any retaining screws and slide off the disc.
5. Install the New Disc: Clean the hub and place the new disc, ensuring it fits snugly.
6. Reassemble: Reattach the caliper and pads, and secure all bolts.
7. Test Brakes: Check braking performance after reinstallation.

8. Troubleshooting Common Issues

a) Warping

• Cause: Overheating or uneven torque during installation.
• Solution: Replace warped discs and ensure proper torque when reinstalling.

b) Corrosion

• Cause: Exposure to moisture or road salt.
• Solution: Choose corrosion-resistant materials or clean discs regularly.

c) Noise During Braking

• Cause: Worn pads or improper disc installation.
• Solution: Replace pads and check for secure disc installation.

9. Cost Considerations

The cost of rear brake discs varies based on material, design, and vehicle compatibility.

a) Budget-Friendly Options

• Standard cast iron discs are affordable and suitable for most vehicles.

b) High-Performance Discs

• Slotted or drilled discs are pricier but provide superior performance.

c) Professional Installation vs. DIY

• While DIY replacement saves labor costs, professional installation ensures accuracy and safety.

10. Rear Brake Discs vs. Drum Brakes

a) Advantages of Brake Discs

• Better heat dissipation and braking performance.
• Easier to maintain and inspect.

b) Applications of Drum Brakes

• Still used in some vehicles for cost efficiency.

11. Environmental and Safety Implications

a) Eco-Friendly Options

• Carbon-ceramic discs reduce emissions by enhancing fuel efficiency.

b) Road Safety

• Rear brake discs improve braking performance, contributing to safer driving conditions.

12. Conclusion

Rear brake discs are a cornerstone of modern vehicle safety and performance. Their ability to provide reliable braking, manage heat, and integrate with advanced systems like ABS makes them indispensable. Regular maintenance, timely replacements, and choosing high-quality components are crucial for ensuring optimal braking performance. By understanding their importance and following best practices, vehicle owners can enjoy safer, more efficient driving.
