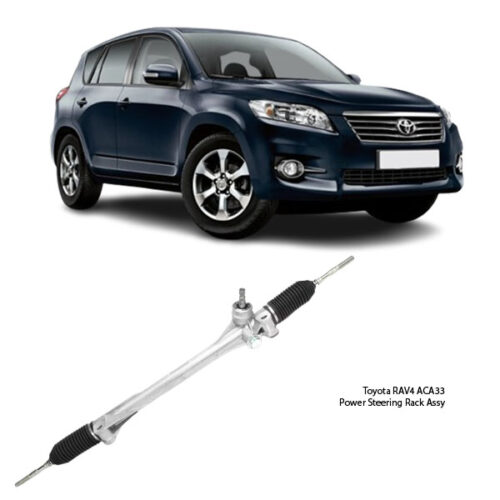

Toyota RAV4 ACA33 RHD Manual Power Steering Rack Assy 45510-42060

Get Toyota RAV4 ACA33 RHD Manual Power Steering Rack Assy 45510-42060 In Kenya

The Power Steering Rack Assembly is the central component of a vehicle’s steering system, translating the driver’s input from the steering wheel into the actual movement of the front wheels. What makes it “power steering” is the addition of hydraulic or electric assistance, which reduces the physical effort needed to turn the wheel.

In older vehicles with manual steering, the rack assembly relied purely on mechanical force. Today, almost all vehicles use power-assisted steering, making driving easier, safer, and more responsive — particularly at low speeds. This system is essential for both small passenger cars and large SUVs, as it ensures smooth control in all driving conditions.

What Exactly Is a Power Steering Rack Assembly?

The steering rack assembly is a linear gear set housed in a long metal casing. It connects directly to the steering column, receiving input from the steering wheel via the pinion gear. As the driver turns the wheel, the pinion rotates and moves the rack side-to-side, steering the wheels left or right.

In power steering systems, either hydraulic pressure or an electric motor assists this movement. Without this assistance, steering would be far heavier, especially at slow speeds like parking.

Components of a Power Steering Rack Assembly

1. Rack and Pinion

The rack is a metal rod with teeth, and the pinion gear is connected to the steering shaft. When you turn the wheel, the pinion spins and shifts the rack left or right.

2. Tie Rods

These attach to both ends of the rack and extend to the front wheels. They convert rack movement into wheel movement.

3. Power Assist Mechanism

Depending on the type (hydraulic or electric), the assist mechanism applies force to help the rack move.

• In hydraulic systems, pressurized fluid pushes on pistons inside the rack.
• In electric systems, a servo motor assists the rack’s movement.

4. Seals and Bushings

These prevent leaks and help reduce friction between moving parts.

Types of Power Steering Rack Assemblies

1. Hydraulic Power Steering Rack

This system uses pressurized fluid from a pump (driven by the engine) to assist the steering effort. Fluid is directed into chambers within the rack assembly to help push the rack left or right.

✅ Excellent feedback
❌ Higher maintenance (fluid leaks, pump wear)
❌ Slightly reduces fuel efficiency due to engine-driven pump

2. Electric Power Steering Rack (EPS)

In EPS systems, an electric motor assists the rack, rather than hydraulic pressure. Sensors detect the driver’s input and adjust the motor’s torque accordingly.

✅ More fuel-efficient (no engine-driven pump)
✅ Allows advanced features (lane-keeping assist)
✅ Low maintenance
❌ Sometimes less road feedback

3. Electro-Hydraulic Power Steering Rack

This hybrid system uses an electric pump to pressurize hydraulic fluid. It offers the feel of hydraulic steering while reducing engine load.

✅ Balanced performance
❌ Still relies on fluid, so leaks are possible

How Power Steering Rack Assemblies Work

Step 1: Steering Wheel Input

The driver turns the wheel, which rotates the steering column.

Step 2: Pinion Gear Rotation

The steering column’s rotation turns the pinion gear, which is meshed with the rack’s teeth.

Step 3: Rack Movement

The pinion drives the rack left or right, moving the wheels via the tie rods.

Step 4: Power Assistance

• In hydraulic systems, fluid pressure applies extra force to the rack.
• In electric systems, the motor adds torque directly to the steering shaft or the rack.

Benefits of Power Steering Rack Assemblies

1. Easier Steering

The system greatly reduces the physical effort needed to steer, especially at low speeds.

2. Improved Safety

With reduced effort, drivers can react more quickly in emergencies.

3. Better Comfort

Less steering effort means less driver fatigue, particularly in city traffic or during long trips.

4. Precision and Feedback

High-quality steering racks give precise control and good road feedback, allowing the driver to sense traction and grip conditions.

Common Power Steering Rack Problems

1. Leaking Fluid

In hydraulic systems, seals can wear out and leak power steering fluid. Low fluid levels lead to noisy, stiff steering and potential pump damage.

2. Steering Play

Excess slack in the steering wheel (where you turn the wheel but the wheels don’t immediately respond) often indicates worn internal components, such as bushings or tie rods.

3. Noise During Turning

Clunking, grinding, or knocking sounds while steering can indicate wear inside the rack or at its mounting points.

4. Stiff Steering

Difficulty turning the wheel could stem from a failing pump, fluid contamination, or internal wear inside the rack assembly.

5. Uneven Tire Wear

A faulty rack assembly may not move both wheels evenly, leading to abnormal tire wear patterns.

Causes of Steering Rack Failure

• Normal Wear and Tear
  Seals, gears, and bushings degrade over time.
• Contaminated Fluid
  Dirty or degraded fluid accelerates internal wear.
• Accidents or Impact
  Hitting a curb or pothole can damage the rack, tie rods, or mounting points.
• Neglecting Maintenance
  Failing to check or change fluid can cause premature failure.

Diagnosing a Faulty Steering Rack

Step 1: Fluid Check

For hydraulic racks, low or dirty fluid often points to leaks or contamination.

Step 2: Visual Inspection

Check for fluid leaks at the rack, pump, and hoses.

Step 3: Test Drive

Feel for excessive play, stiffness, or noise when turning the wheel.

Step 4: Wheel Alignment

A bad rack can cause misalignment, so uneven tire wear could be a clue.

Maintenance Tips for Power Steering Rack Assemblies

1. Change Fluid Regularly

In hydraulic systems, follow the manufacturer’s fluid change interval to prevent contamination.

2. Inspect for Leaks

At every service, check for leaks at the rack seals, hoses, and pump.

3. Listen for Abnormal Noises

Catch problems early by paying attention to sounds during steering.

4. Monitor Steering Feel

If steering becomes heavier, looser, or inconsistent, get it checked immediately.

5. Check Alignment

A misaligned rack stresses the entire steering system, so periodic alignment helps extend its life.

Replacement vs Repair

• Replacement
  For heavily worn, damaged, or leaking racks, full replacement is the best option.
• Rebuild/Repair
  In some cases, a worn rack can be rebuilt with new seals, bushings, and reconditioned gears.

Final Thoughts

The Power Steering Rack Assembly is the unsung hero of your steering system. It quietly converts your steering inputs into precise wheel movements, keeping you safe, comfortable, and in control. Whether you drive a compact hatchback or a rugged 4×4, this component is essential to your vehicle’s drivability.

Regular maintenance, proper fluid care (for hydraulic systems), and prompt repair of leaks or looseness will help extend the lifespan of your power steering rack. Ignoring symptoms like steering play or fluid leaks can quickly lead to costly repairs — or even dangerous driving conditions.
