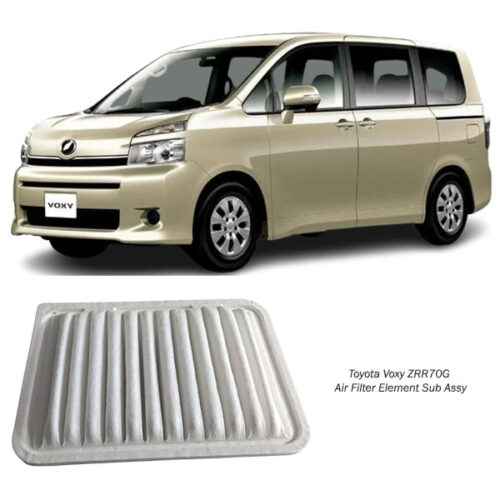

Toyota Voxy ZRR70G Air Filter Element Sub-Assy 17801-21050

The Air Filter Element Sub-Assembly is a critical component of a vehicle’s intake system, designed to ensure the engine receives clean air free from dust, dirt, and other contaminants. By maintaining a clean and efficient air supply, the air filter element sub-assy plays a pivotal role in optimizing engine performance, fuel efficiency, and longevity. This comprehensive guide delves into the construction, functionality, benefits, maintenance, and replacement considerations for the air filter element sub-assembly.

What is the Air Filter Element Sub-Assembly?

The air filter element sub-assembly is a composite part of the air filtration system. It includes the filter element itself, typically housed within a durable casing that integrates seamlessly with the engine’s intake system. Its primary job is to trap harmful contaminants from the incoming air before it reaches the engine cylinders.

Key Characteristics:

• Designed to balance airflow efficiency with filtration capability.
• Made from high-quality materials like pleated paper, foam, or cotton gauze.
• Built to withstand a variety of environmental conditions, including extreme temperatures and humidity.

How Does the Air Filter Element Sub-Assy Work?

1. Air Intake
   • The air filter draws in ambient air from the outside environment through the intake ducts.
2. Filtration Process
   • As air passes through the filter element, contaminants like dust, pollen, and debris are trapped by the filtration material.
3. Clean Air Delivery
   • The cleaned air flows into the engine’s intake manifold and subsequently into the combustion chamber for mixing with fuel.

Construction and Materials

The air filter element sub-assembly is engineered for durability and efficiency.

1. Filter Media
   • The core component made from pleated paper, cotton gauze, or foam to maximize surface area and filtration capability.
2. Outer Frame
   • Provides structural integrity and ensures the filter maintains its shape during operation. Often made of rubber or plastic.
3. Seal Gasket
   • Prevents unfiltered air from bypassing the filter element and entering the engine.
4. Support Grids or Mesh
   • Reinforces the filter media and prevents collapse under high airflow pressure.

Types of Air Filter Elements

1. Paper Air Filters
   • Made from pleated cellulose paper, these filters are cost-effective and provide excellent filtration for standard driving conditions.
2. Foam Air Filters
   • Typically used in off-road or performance vehicles due to their superior dust-trapping capabilities.
3. Cotton Gauze Air Filters
   • Reusable and washable, these filters are popular in high-performance applications.
4. Carbon-Activated Filters
   • Incorporate carbon to reduce odors and chemical pollutants in the intake air.

Benefits of the Air Filter Element Sub-Assy

1. Engine Performance Optimization
   • Clean air ensures proper combustion, leading to smoother operation and better power output.
2. Enhanced Fuel Efficiency
   • By maintaining the correct air-fuel ratio, the air filter helps reduce fuel consumption.
3. Prolonged Engine Life
   • Prevents abrasive particles from entering the engine, reducing wear and tear on internal components.
4. Reduced Emissions
   • Cleaner air promotes efficient combustion, minimizing harmful exhaust emissions.
5. Improved Driving Comfort
   • Filters out allergens and pollutants, providing cleaner cabin air and a better driving experience.

Signs of a Dirty or Failing Air Filter Element Sub-Assy

1. Reduced Engine Performance
   • Sluggish acceleration or a decrease in power may indicate restricted airflow due to a clogged filter.
2. Decreased Fuel Efficiency
   • A dirty filter forces the engine to work harder, consuming more fuel.
3. Unusual Engine Noises
   • Whistling or popping sounds may result from restricted air intake.
4. Dark Exhaust Smoke
   • Poor combustion caused by insufficient air can lead to black or gray smoke.
5. Visible Dirt or Debris
   • Inspecting the filter may reveal a buildup of dust and contaminants.

Maintenance Tips for the Air Filter Element Sub-Assy

1. Regular Inspections
   • Check the air filter during routine vehicle maintenance to assess its condition.
2. Follow the Manufacturer’s Recommendations
   • Replace the air filter at the intervals specified in the vehicle’s owner manual, typically every 12,000 to 15,000 miles.
3. Consider Driving Conditions
   • Replace the filter more frequently if you drive in dusty or high-pollution environments.
4. Use OEM or High-Quality Filters
   • Ensure the replacement filter matches the specifications of the original equipment.
5. Avoid Overcleaning Reusable Filters
   • For washable filters, follow cleaning guidelines to avoid damaging the filter media.

Replacing the Air Filter Element Sub-Assy

Replacing the air filter is a simple process that requires minimal tools and effort.

Steps to Replace:

1. Locate the Air Filter Housing
   • Find the air filter box, usually located near the engine bay.
2. Open the Housing
   • Remove the clips or screws securing the housing to access the filter element.
3. Remove the Old Filter
   • Take out the dirty filter and inspect the housing for debris. Clean it if necessary.
4. Install the New Filter
   • Insert the new filter, ensuring it fits snugly and the seal is intact.
5. Close the Housing
   • Reattach the cover and secure it with clips or screws.
6. Test the Engine
   • Start the engine to ensure smooth airflow and proper performance.

Common Mistakes to Avoid

1. Delaying Replacement
   • Neglecting to replace a dirty filter can lead to significant engine issues over time.
2. Using Substandard Filters
   • Low-quality filters may not provide adequate filtration, risking engine damage.
3. Improper Installation
   • An incorrectly installed filter can allow unfiltered air to bypass the element.
4. Ignoring Driving Conditions
   • Failing to account for dusty or polluted environments can shorten the filter’s lifespan.

Costs Associated with Air Filter Element Sub-Assy

The cost of an air filter varies based on its type, brand, and vehicle compatibility.

1. Paper Filters
   • Affordable and widely available, ranging from $10 to $30.
2. Foam Filters
   • Mid-range, costing between $20 and $50.
3. Reusable Filters
   • Premium options priced from $40 to $100 but offer long-term savings.
4. Labor Costs
   • Professional replacement may add $20 to $50, depending on the service provider.

Environmental Considerations

1. Recyclable Filters
   • Many air filters are recyclable, reducing waste when replaced.
2. Eco-Friendly Options
   • Reusable filters minimize environmental impact by reducing disposable filter waste.

Why the Air Filter Element Sub-Assy Matters

The air filter element sub-assembly is more than just a simple filter; it is a guardian of engine health, ensuring consistent performance and efficiency. Without proper filtration, dirt and contaminants can cause severe engine damage, leading to costly repairs. By investing in quality air filters and adhering to regular maintenance schedules, you can enjoy a smoother, more efficient driving experience while extending the life of your vehicle.

In conclusion, the air filter element sub-assy is indispensable for maintaining your vehicle’s performance and longevity. Regular inspection and timely replacement are small yet crucial steps in ensuring that your engine breathes clean air, providing optimal power, fuel efficiency, and reliability.
