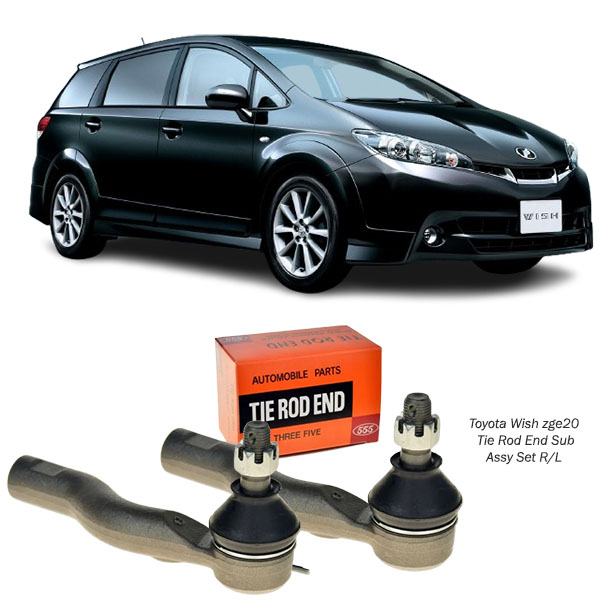

Toyota Wish zge20 Tie Rod End Sub Assy Set R/L ZGE20

Get Toyota Wish zge20 Tie Rod End Sub Assy Set R/L ZGE20 in Kenya

The tie rod end sub assembly set (R/L) is a vital part of a vehicle’s steering and suspension system, ensuring precise handling, stability, and safety. This assembly, comprising the right and left tie rod ends, connects the steering rack to the wheels, translating the driver’s steering inputs into the wheels’ turning motion.

This detailed exploration will cover the components, functions, benefits, maintenance, and replacement of the tie rod end sub assembly set, highlighting its crucial role in vehicle performance and safety.

What is a Tie Rod End Sub Assembly Set?

A tie rod end is the outermost component of the steering linkage system. The sub assembly set includes both the right and left tie rod ends, working together to connect the steering rack or center link to the steering knuckle on each front wheel.

Key Components:

1. Tie Rod: A rod that transmits force from the steering rack to the steering knuckle.
2. Ball Joint: A flexible joint that allows the tie rod end to pivot, enabling the wheels to turn and move up and down with the suspension.
3. Threaded End: Used to adjust the alignment of the front wheels.
4. Boot or Dust Cover: Protects the ball joint from dirt, moisture, and debris.

Functions of the Tie Rod End Sub Assembly Set

The tie rod end sub assembly set plays a critical role in the steering and suspension system. Here are its primary functions:

1. Transmitting Steering Force

When the driver turns the steering wheel, the steering rack moves the tie rods, which in turn move the steering knuckles and wheels. The tie rod ends ensure this motion is smooth and precise.

2. Maintaining Wheel Alignment

The threaded end of the tie rod allows for fine adjustments to wheel alignment, ensuring proper handling and even tire wear.

3. Enabling Suspension Movement

The ball joint in the tie rod end accommodates the up-and-down motion of the suspension while maintaining the connection between the steering rack and wheel.

4. Reducing Vibrations

The tie rod end absorbs vibrations from the road, preventing them from being transmitted to the steering wheel.

Benefits of a Well-Maintained Tie Rod End Sub Assembly Set

1. Precise Steering Control
   A properly functioning tie rod end sub assembly ensures accurate steering response, giving the driver full control over the vehicle.
2. Enhanced Safety
   Reliable tie rod ends minimize the risk of steering failure, ensuring the safety of the vehicle and its occupants.
3. Improved Vehicle Stability
   The tie rod ends help maintain proper alignment and stability, especially during sharp turns or sudden maneuvers.
4. Even Tire Wear
   Proper alignment reduces uneven tire wear, extending the lifespan of the tires and saving on replacement costs.
5. Smooth Ride Experience
   The tie rod ends absorb minor vibrations and jolts, contributing to a smoother and more comfortable ride.

Common Issues with Tie Rod End Sub Assembly Sets

Despite their durability, tie rod ends can wear out over time due to regular use, road conditions, and exposure to the elements. Common issues include:

1. Worn Ball Joints

The ball joint may wear out or become loose, leading to play in the steering system and reduced control.

2. Damaged Dust Boots

A torn or damaged dust boot allows dirt, moisture, and debris to enter the ball joint, accelerating wear and corrosion.

3. Corrosion

Rust and corrosion can weaken the tie rod, compromising its structural integrity and performance.

4. Bent or Damaged Tie Rod

Impact from potholes, curbs, or collisions can bend or damage the tie rod, affecting alignment and steering precision.

5. Thread Wear

The threaded portion of the tie rod may wear out over time, making it difficult to maintain proper alignment.

Signs of a Failing Tie Rod End Sub Assembly

1. Loose or Unresponsive Steering
   A worn tie rod end may cause play in the steering wheel, making it feel loose or unresponsive.
2. Uneven Tire Wear
   Abnormal tire wear patterns may indicate misalignment caused by a faulty tie rod end.
3. Clunking or Popping Noises
   Loose or worn tie rod ends can produce clunking or popping noises, especially during turns or over bumps.
4. Vibration in the Steering Wheel
   A damaged tie rod end may cause the steering wheel to vibrate, particularly at higher speeds.
5. Pulling to One Side
   The vehicle may drift or pull to one side if the tie rod ends are not functioning properly.

Maintenance Tips for Tie Rod End Sub Assembly Sets

1. Regular Inspections
   Periodically inspect the tie rod ends for wear, damage, or signs of corrosion. Check the dust boots for tears or leaks.
2. Wheel Alignment Checks
   Have the wheel alignment checked regularly to ensure proper steering and tire wear. Misaligned wheels can accelerate tie rod wear.
3. Lubrication
   Some tie rod ends are greaseable. Regular lubrication can reduce friction and prolong their lifespan.
4. Avoid Rough Roads
   Minimize driving on rough or unpaved roads to reduce stress on the tie rod ends and suspension system.
5. Replace in Pairs
   If one tie rod end fails, replace both (right and left) to ensure balanced performance and even wear.

Replacing a Tie Rod End Sub Assembly Set

Replacing a tie rod end is a relatively straightforward process, but it requires precision to ensure proper alignment and steering performance.

Tools Needed:

• Jack and jack stands
• Wrench and socket set
• Tie rod puller or separator tool
• Torque wrench
• Grease (if applicable)

Steps:

1. Lift the Vehicle
   Securely raise the front of the vehicle using a jack and support it with jack stands.
2. Remove the Wheel
   Take off the wheel to access the tie rod end.
3. Loosen the Tie Rod End Nut
   Use a wrench to loosen the nut securing the tie rod end to the steering knuckle.
4. Separate the Tie Rod End
   Use a tie rod puller or separator tool to detach the tie rod end from the steering knuckle.
5. Unscrew the Tie Rod End
   Mark the position of the tie rod end on the tie rod to preserve alignment settings, then unscrew it.
6. Install the New Tie Rod End
   Screw the new tie rod end onto the tie rod, matching the previously marked position. Secure it to the steering knuckle and tighten the nut to the manufacturer’s specifications.
7. Reinstall the Wheel
   Put the wheel back on and lower the vehicle.
8. Alignment Check
   Have the alignment professionally checked and adjusted to ensure proper steering performance.

Conclusion

The tie rod end sub assembly set (R/L) is essential for maintaining precise steering, vehicle stability, and safety. Properly functioning tie rod ends ensure a smooth and responsive driving experience, reduce tire wear, and enhance overall vehicle performance.

Regular inspections, prompt replacements, and adherence to maintenance best practices are key to prolonging the lifespan of the tie rod ends. Investing in high-quality replacement parts and professional alignment services will ensure your vehicle remains safe, stable, and a joy to drive.
