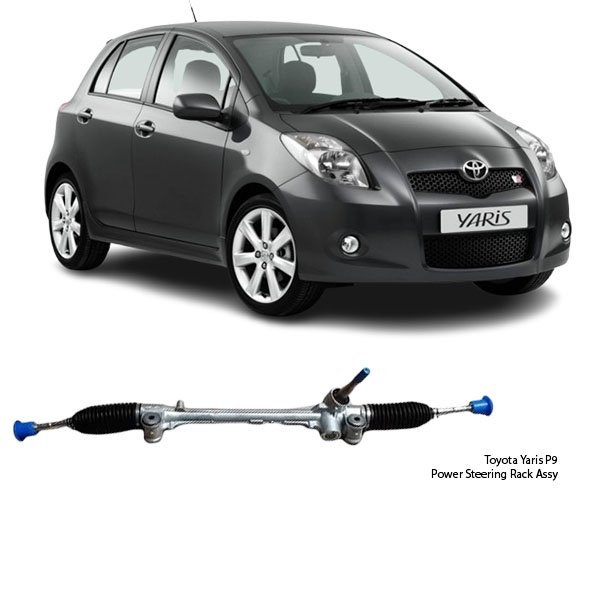

Toyota Yaris P9 RHD Manual Power Steering Rack Assy 45510-52040

Get Toyota Yaris P9 RHD Manual Power Steering Rack Assy 45510-52040 in Kenya

The power steering rack assembly is one of the most crucial components in a vehicle’s steering system. It plays a vital role in ensuring smooth and effortless steering control. Modern vehicles rely heavily on power steering systems, as they allow drivers to maneuver vehicles with minimal physical effort, especially at low speeds or while parking.

While early vehicles had manual steering systems, modern cars use hydraulic power steering (HPS), electronic power steering (EPS), or electro-hydraulic power steering (EHPS) — all of which involve a steering rack assembly.

What is a Power Steering Rack Assembly?

A steering rack assembly is a mechanical component that converts the rotational motion of the steering wheel into the linear motion required to turn the vehicle’s wheels. In power steering systems, this process is assisted either by hydraulic pressure or electric motors, significantly reducing the force needed to turn the steering wheel.

The rack assembly is essentially a metal housing containing a rack gear, which moves laterally as the pinion gear turns (connected to the steering shaft). With power assistance, fluid pressure (in hydraulic systems) or an electric motor (in electric systems) amplifies the force applied by the driver, making steering smoother and more effortless.

Main Components of a Power Steering Rack Assembly

1. Steering Rack (Rack Gear)
   A long, toothed metal bar that moves left or right, guiding the wheels.

2. Pinion Gear
   A small gear connected to the steering column. As the driver turns the steering wheel, the pinion rotates and moves the rack.

3. Hydraulic Cylinder (in HPS)
   A chamber filled with pressurized power steering fluid that assists the rack’s movement.

4. Tie Rods (Inner and Outer)
   Components connecting the steering rack to the steering knuckles on the wheels. These rods translate rack movement into wheel movement.

5. Bushings and Seals
   Rubber components that cushion and protect the rack assembly, ensuring smooth movement and sealing fluid inside.

6. Power Steering Pump (in HPS)
   Provides hydraulic pressure to the steering rack, enabling power-assisted steering.

7. Electric Motor (in EPS)
   In electric power steering, the motor directly assists in moving the rack, without hydraulic fluid.

Types of Power Steering Rack Assemblies

1. Hydraulic Power Steering (HPS) Rack

• Uses a pump driven by the engine to supply pressurized fluid.
• Fluid assists in moving the rack left or right.
• Common in older vehicles and heavy-duty applications.

2. Electric Power Steering (EPS) Rack

• Uses an electric motor instead of hydraulic fluid.
• Motor responds directly to the steering input from sensors.
• Found in most modern vehicles due to fuel efficiency and simplicity.

3. Electro-Hydraulic Power Steering (EHPS) Rack

• Hybrid system combining hydraulic assistance with an electrically driven pump.
• Seen in some vehicles as a transition between HPS and EPS.

Functions of a Power Steering Rack Assembly

1. Steering Assistance

The primary job of the rack assembly is to make steering easy by reducing the effort needed to turn the wheels.

2. Directional Control

It converts the rotational movement of the steering wheel into a side-to-side motion of the wheels.

3. Load Distribution

It evenly distributes forces to both front wheels, ensuring balanced steering and proper alignment.

4. Vibration Dampening

Through bushings and seals, it helps absorb road vibrations, contributing to smoother handling.

Benefits of a Power Steering Rack Assembly

1. Reduced Steering Effort

Power assistance means the driver doesn’t have to apply excessive force to steer, especially at low speeds.

2. Improved Safety

More precise steering response helps maintain better control in emergencies.

3. Enhanced Comfort

Smoother steering reduces driver fatigue, especially in urban driving and parking.

4. Fuel Efficiency (in EPS)

Electric systems do not draw power from the engine (like hydraulic pumps do), improving fuel economy.

Common Issues with Power Steering Rack Assemblies

1. Fluid Leaks (in HPS)

Seals can wear out, leading to power steering fluid leaks. This reduces system performance and can cause steering stiffness.

2. Rack Wear

Over time, teeth on the rack and pinion gear can wear, leading to play (looseness) in the steering.

3. Noise and Vibration

Worn bushings, joints, or internal components can cause knocking noises and excessive vibration.

4. Steering Stiffness

Caused by internal damage, fluid loss, or a failing pump or motor.

5. Steering Pull

If the rack assembly isn’t aligned correctly, or if internal parts wear unevenly, the vehicle may pull to one side.

6. Electric Motor Failure (in EPS)

Modern EPS racks rely on electric motors and sensors. Any failure here can lead to total loss of power assistance.

Maintenance Tips for Power Steering Rack Assemblies

1. Regular Fluid Checks (for HPS)

Ensure the power steering fluid is clean and at the correct level. Contaminated fluid accelerates wear.

2. Inspect for Leaks

Regularly check for signs of fluid leaks around the rack and pump.

3. Alignment Checks

Misaligned wheels put stress on the steering rack. Routine wheel alignment helps protect the rack.

4. Replace Worn Bushings and Tie Rods

These inexpensive parts can prevent more severe damage to the rack itself.

5. Clean Steering Sensors (for EPS)

Ensure EPS sensors remain free of dirt and debris for accurate input readings.

6. Flush Steering Fluid (for HPS)

Periodic fluid flushes help remove contaminants and prolong the system’s life.

When to Replace a Power Steering Rack Assembly

Symptoms Indicating Replacement

• Persistent steering noise (grinding, whining, or knocking).
• Excessive steering play or looseness.
• Fluid leaks that can’t be repaired.
• Stiff steering despite proper fluid level.
• Uneven steering effort (harder to turn one way than the other).

Lifespan Expectancy

• Power steering racks typically last between 100,000 to 150,000 kilometers (or 60,000 to 100,000 miles), but this varies based on driving conditions, maintenance, and vehicle type.

Choosing a Replacement Power Steering Rack Assembly

OEM vs Aftermarket

• OEM racks offer guaranteed fit and quality but are often more expensive.
• Aftermarket racks may be cheaper but vary significantly in quality, so it’s essential to buy from reputable brands.

Remanufactured Options

• These are refurbished original racks, often cheaper than new OEM parts but still offer decent reliability.

Conclusion

The power steering rack assembly is a core element of any vehicle’s steering system, ensuring smooth, responsive, and safe maneuvering. Whether hydraulic or electric, this part requires regular inspection and care to maintain optimal performance. Ignoring signs of wear, leaks, or stiffness can lead to costly repairs and compromised safety. By understanding how it works, common failure points, and proper maintenance, drivers can extend the lifespan of this critical component, ensuring enjoyable and secure driving experiences.
